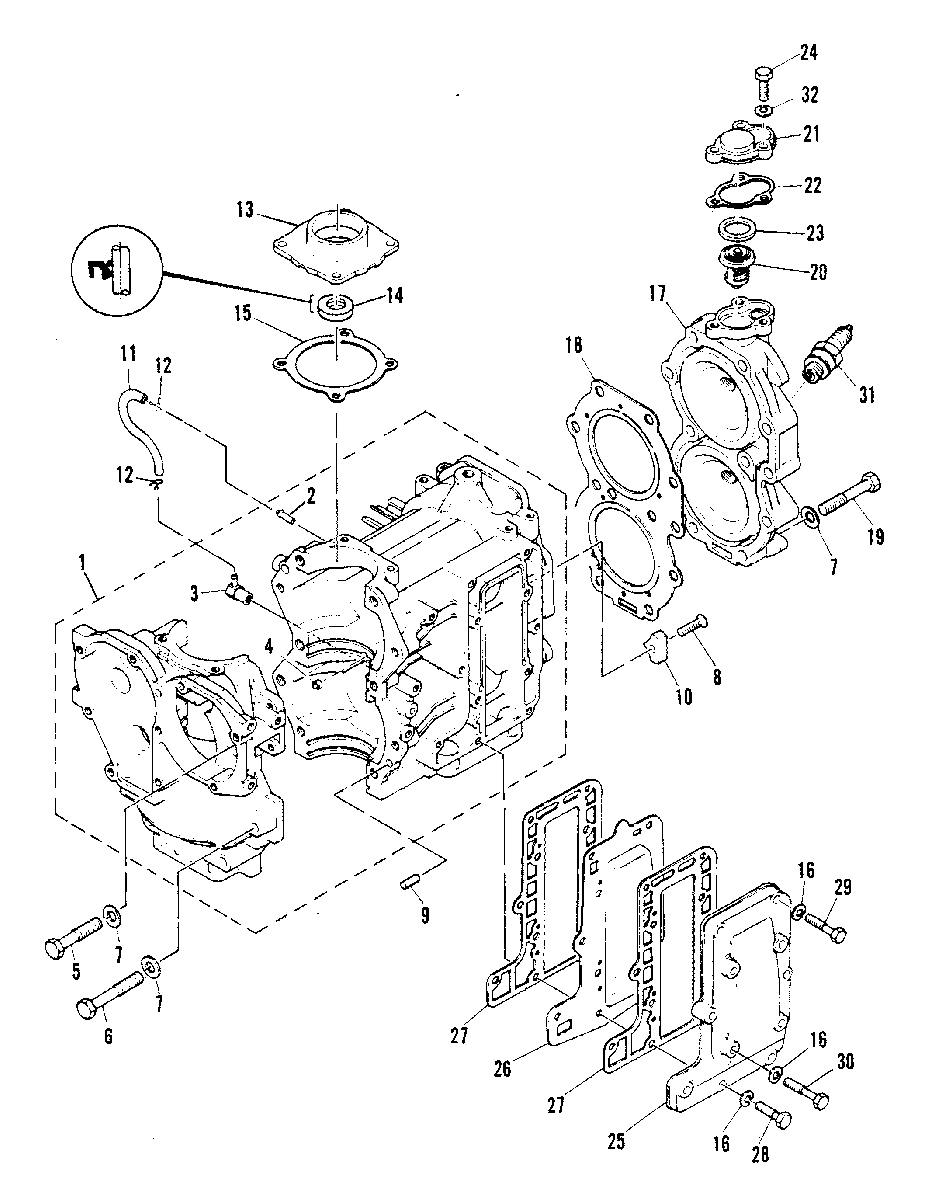

CRANKCASE AND CYLINDER HEAD для Mariner - 25C (THRU PROP. EXHAUST) 695-250101 THRU 253861
-
№АртикулНазвание
-
1870-9369M CRANKCASE ASS'Y
(SERIAL 00006086-09999999)CRANKCASE ASS'Y
(SERIAL 00006086-09999999) -
1870-7871M CRANKCASE ASS'Y
(SERIAL 00000000-00006085)CRANKCASE ASS'Y
(SERIAL 00000000-00006085) -
222-80122M FITTING, CRANKCASE DRAINFITTING, CRANKCASE DRAIN
-
321-80727M ,CHECK VALVE ASS'Y,CHECK VALVE ASS'Y
-
421-80107M VALVE, CHECKVALVE, CHECK
-
510-41885M BOLT, W/WASHER
(SERIAL 00009376-09999999)BOLT, W/WASHER
(SERIAL 00009376-09999999) -
510-82406M BOLT, W/WASHER
(SERIAL 00000000-00009375)BOLT, W/WASHER
(SERIAL 00000000-00009375) -
610-8M0101617 BOLT, W/WASHER
(SERIAL 00009376-09999999)BOLT, W/WASHER
(SERIAL 00009376-09999999) -
610-82408M BOLT
(SERIAL 00000000-00009375)BOLT
(SERIAL 00000000-00009375) -
712-80564M WASHER
(SERIAL 00000000-00009375)WASHER
(SERIAL 00000000-00009375) -
810-95209M SCREW
(SERIAL 00019911-09999999)SCREW
(SERIAL 00019911-09999999) -
810-95209M SCREWSCREW
-
917-82364M PIN, DOWELPIN, DOWEL
-
1097-84732M ANODEANODE
-
1132-811045M HOSEHOSE
-
1254-82046M CLAMP, HOSECLAMP, HOSE
-
1381564M HOUSING, OIL SEAL (UPPER)HOUSING, OIL SEAL (UPPER)
-
1426-82245M OIL SEAL, CRANKSHAFT (UPPER)OIL SEAL, CRANKSHAFT (UPPER)
-
1527-81565M GASKET, OIL SEAL HOUSINGGASKET, OIL SEAL HOUSING
-
1612-82214M WASHER, LOCKWASHER, LOCK
-
17968-8400M HEAD, CYLINDERHEAD, CYLINDER
-
1827-81555 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
1910-41885M BOLT, W/WASHER
(SERIAL 00009376-09999999)BOLT, W/WASHER
(SERIAL 00009376-09999999) -
1910-82407M BOLT
(SERIAL 00000000-00009375)BOLT
(SERIAL 00000000-00009375) -
2099080M THERMOSTATTHERMOSTAT
-
2181030M COVER, THERMOSTATCOVER, THERMOSTAT
-
2227-81031 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
2312-81835M WASHERWASHER
-
2410-84058M BOLTBOLT
-
2581569M COVER, EXHAUST-OUTERCOVER, EXHAUST-OUTER
-
2681568M COVER, EXHAUST-INNERCOVER, EXHAUST-INNER
-
2727-81570 GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
2810-82405M BOLT
(SERIAL 00019911-09999999)BOLT
(SERIAL 00019911-09999999) -
2810-82405M BOLT
(SERIAL 00000000-00019910)BOLT
(SERIAL 00000000-00019910) -
2910-83285M BOLT
(SERIAL 00009376-09999999)BOLT
(SERIAL 00009376-09999999) -
2910-83285M BOLT
(SERIAL 00000000-00009375)BOLT
(SERIAL 00000000-00009375) -
3010-83285M BOLTBOLT
-
3133-8M0114739 SPARK PLUG, B-7HS (NGK)SPARK PLUG, B-7HS (NGK)
-
3213-82212M WASHER
(SERIAL 00019911-09999999)WASHER
(SERIAL 00019911-09999999) -
3218969M POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
(SERIAL 00006086-09999999)POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
(SERIAL 00006086-09999999) -
3292574M POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
(SERIAL 00000000-00006085)POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
(SERIAL 00000000-00006085) -
-27-92575M GASKET SET, POWERHEADGASKET SET, POWERHEAD
