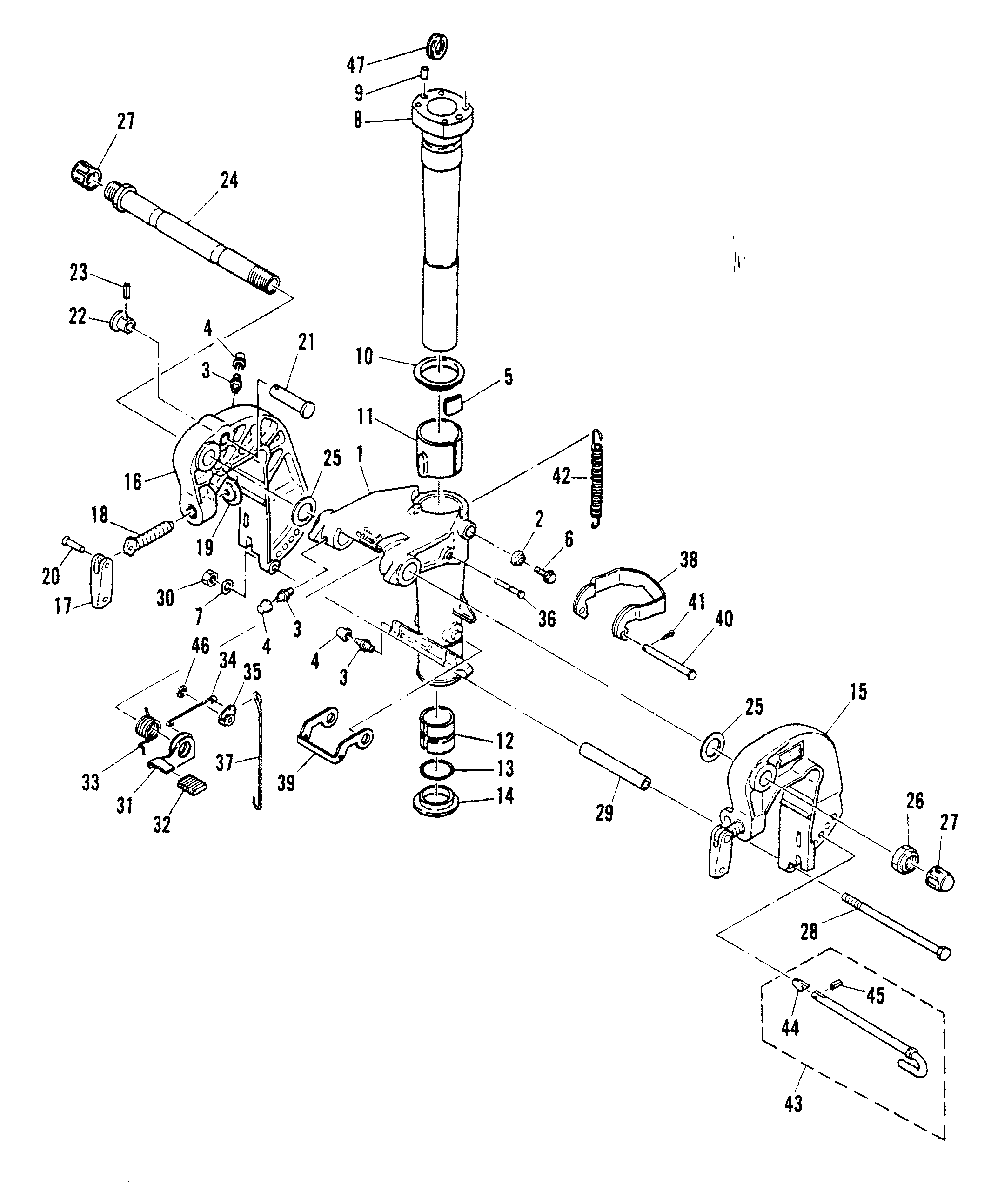

CLAMP AND SWIVEL BRACKET/REVERSE LOCK для Mariner - 25C (THRU PROP. EXHAUST) 695-250101 THRU 253861
-
№АртикулНазвание
-
11485-9246M SWIVEL BRACKET
(SERIAL 00019911-09999999)SWIVEL BRACKET
(SERIAL 00019911-09999999) -
11485-9246M SWIVEL BRACKET (M-006056 THRU 019910 ML-305361 THRU 315400)
(SERIAL 00006056-00019910)SWIVEL BRACKET (M-006056 THRU 019910 ML-305361 THRU 315400)
(SERIAL 00006056-00019910) -
226-91637M SEALSEAL
-
322-82369M FITTING, GREASEFITTING, GREASE
-
481439M CAP, GREASE FITINGCAP, GREASE FITING
-
580633M PLATE, FRICTIONPLATE, FRICTION
-
610-96382M SCREWSCREW
-
712-82217M WASHER, LOCKWASHER, LOCK
-
884833M SHAFT, STEERING PIVOTSHAFT, STEERING PIVOT
-
917-82368M PIN, DOWELPIN, DOWEL
-
1012-81873M BUSHINGBUSHING
-
1123-81964M BUSHING, PIVOT SHAFT-UPPERBUSHING, PIVOT SHAFT-UPPER
-
1223-81961M BUSHING, PIVOT SHAFT-LOWERBUSHING, PIVOT SHAFT-LOWER
-
1325-82274M O-RING, PIVOT SHAFT BUSHINGO-RING, PIVOT SHAFT BUSHING
-
1423-81959M BUSHINGBUSHING
-
151484-9797M CLAMP BRACKET, PORTCLAMP BRACKET, PORT
-
161484-8246M CLAMP BRACKET, STARBOARDCLAMP BRACKET, STARBOARD
-
17809959M HANDLE, TRANSOM CLAMP SCREWHANDLE, TRANSOM CLAMP SCREW
-
1810-81756M SCREW, TRANSOM CLAMPSCREW, TRANSOM CLAMP
-
1912-80638M PAD, TRANSOM CLAMP SCREWPAD, TRANSOM CLAMP SCREW
-
2017-81888M PIN, ROLLPIN, ROLL
-
2184835M SHAFT, TILT STOPSHAFT, TILT STOP
-
2295650M KNOB, TILT STOP SHAFTKNOB, TILT STOP SHAFT
-
2317-82148M PIN, ROLLPIN, ROLL
-
2410-91639M TUBE, STEERINGTUBE, STEERING
-
2512-81836M WASHERWASHER
-
2611-879172252 NUTNUT
-
27811914M CAPCAP
-
2810-82924M BOLTBOLT
-
2923-19108M SPACER, CLAMP BRACKETSPACER, CLAMP BRACKET
-
3011-82382M NUTNUT
-
3191640M LEVER, LOCK/RELEASELEVER, LOCK/RELEASE
-
3291641M COVER, LEVERCOVER, LEVER
-
3324-91642M SPRING, TENSIONSPRING, TENSION
-
3491643M LINK, REVERSE LOCK LEVERLINK, REVERSE LOCK LEVER
-
3580648M CAM, TILTCAM, TILT
-
3617-19109M PINPIN
-
3780645M ROD, REVERSE LOCK LEVERROD, REVERSE LOCK LEVER
-
3884837M HOOK, REVERSE LOCK-REARHOOK, REVERSE LOCK-REAR
-
3980643M HOOK, REVERSE LOCK-FRONTHOOK, REVERSE LOCK-FRONT
-
4017-81882M PINPIN
-
4118-82125M PIN, COTTERPIN, COTTER
-
4224-19110M SPRING, REVERSE LOCKSPRING, REVERSE LOCK
-
4317-94569M TILT LOCK PIN ASS'YTILT LOCK PIN ASS'Y
-
4482857M STOPPER, PLATESTOPPER, PLATE
-
4517-82144M PIN, ROLLPIN, ROLL
-
4653-82330M SNAP RINGSNAP RING
-
4725-82070M GROMMETGROMMET
