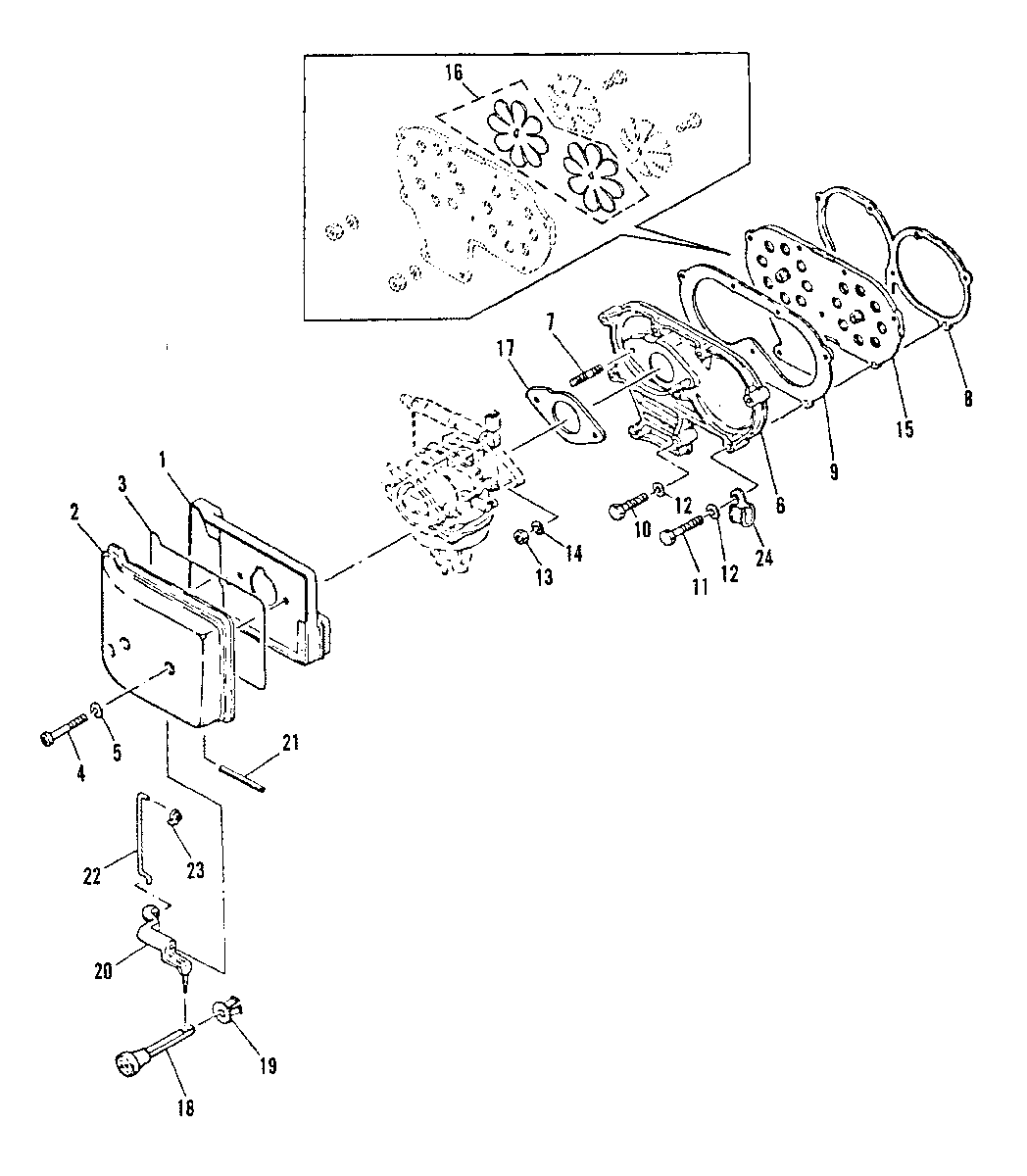

INTAKE MANIFOLD для Mariner - 25C (THRU PROP. EXHAUST) 695-250101 THRU 253861
-
№АртикулНазвание
-
192576M COVER, AIR INTAKE (INNER)COVER, AIR INTAKE (INNER)
-
292577M COVER, AIR INTAKE (OUTER)COVER, AIR INTAKE (OUTER)
-
325-84757M GASKET, COVERGASKET, COVER
-
410-82522M SCREWSCREW
-
512-82211M WASHERWASHER
-
680570002 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
716-91735M STUD, CARBURETOR ATTACHINGSTUD, CARBURETOR ATTACHING
-
827-80569M GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
927-80571M GASKET, REED VALVEGASKET, REED VALVE
-
1010-82405M BOLTBOLT
-
1110-83285M BOLTBOLT
-
1212-82214M WASHER, LOCKWASHER, LOCK
-
1311-82389M NUTNUT
-
1412-82214M WASHERWASHER
-
15811027M REED VALVE ASS'YREED VALVE ASS'Y
-
1634-84759M REED SET (REED STOPS NOT INCLUDED)REED SET (REED STOPS NOT INCLUDED)
-
1727-80572 GASKET, CARBURETOR MANIFOLDGASKET, CARBURETOR MANIFOLD
-
1883960M KNOB, CHOKEKNOB, CHOKE
-
1925-84760M GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
2084761M LEVER, CHOKELEVER, CHOKE
-
2117-84762M PIN, ROLLPIN, ROLL
-
2292579M ROD, CHOKEROD, CHOKE
-
2316333 JOINTJOINT
-
2454-96348M CLAMP, HOSECLAMP, HOSE
