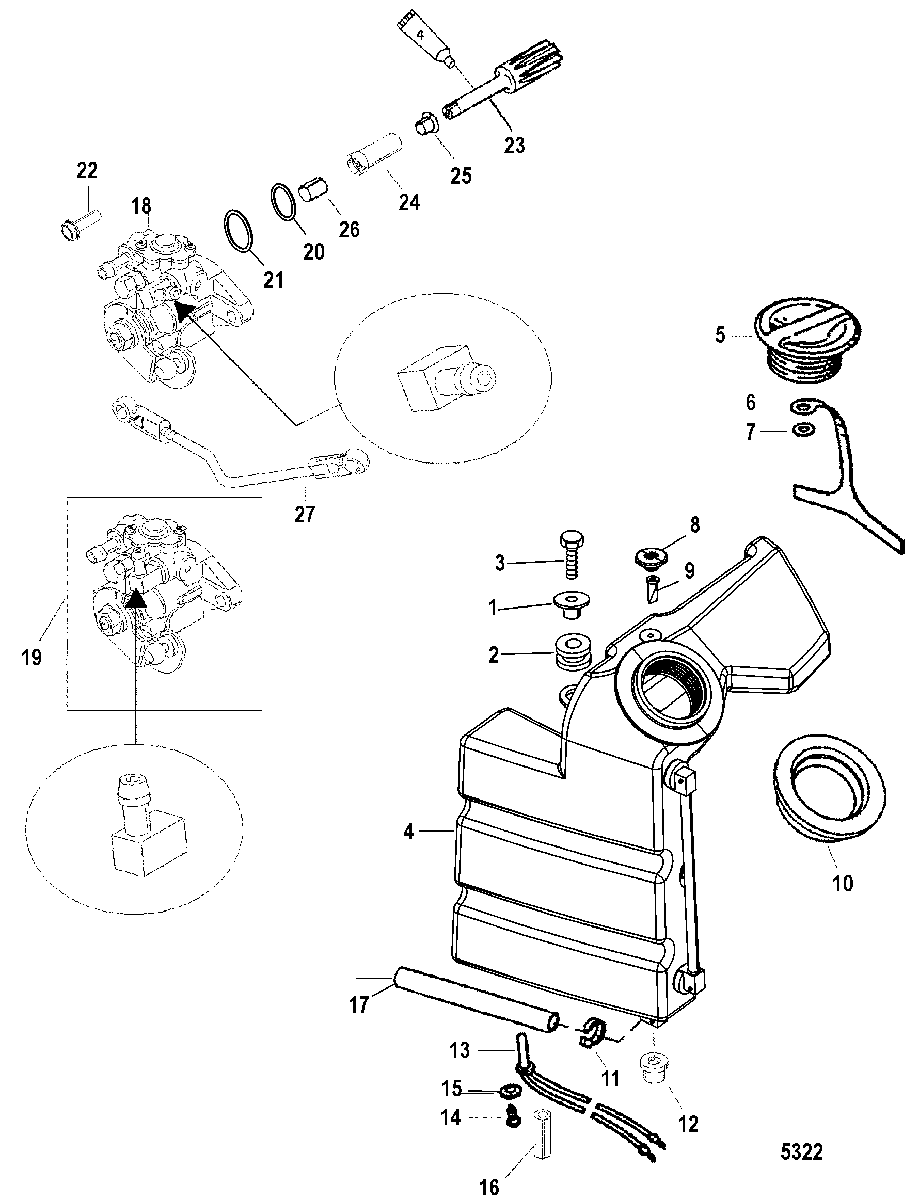

Oil Injection Components для Mariner - 30 JET (3 CYL.) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
123-822003 BUSHINGBUSHING
-
225-822002 GROMMETGROMMET
-
310-40011129 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
41276-828163A2 TANK ASSEMBLY, OilTANK ASSEMBLY, Oil
-
536-828765A2 CAP ASSEMBLYCAP ASSEMBLY
-
6NSS NOT SOLD SEPARATE, TetherNOT SOLD SEPARATE, Tether
-
711-821285 PUSH NUTPUSH NUT
-
819299A1 VENT ASSEMBLYVENT ASSEMBLY
-
921-64871 VALVEVALVE
-
108M0039080 SEALSEAL
-
1154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1225-813644002 GROMMETGROMMET
-
1387-12886A6 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1410-58376 SCREW, (.164-18 x .375)SCREW, (.164-18 x .375)
-
1512-72761 WASHER, (.203 x .562 x .060) Stainless SteelWASHER, (.203 x .562 x .060) Stainless Steel
-
1623-826084 SPACERSPACER
-
1732-82381335 TUBING, (15.00 Inches Bulk) (12 Inch)TUBING, (15.00 Inches Bulk) (12 Inch)
-
18818902A2 PUMP ASSEMBLY, Oil Injection
(40)PUMP ASSEMBLY, Oil Injection
(40) -
19818902A1 PUMP ASSEMBLY, Oil Injection
(50)PUMP ASSEMBLY, Oil Injection
(50) -
2025-36390 O-RINGO-RING
-
2125-62705 O-RINGO-RING
-
2210-40011108 SCREW, (M5 x 20) Stainless SteelSCREW, (M5 x 20) Stainless Steel
-
2343-19277 GEAR, DrivenGEAR, Driven
-
2423-19278A2 BEARING ASSEMBLYBEARING ASSEMBLY
-
2523-17597 BUSHING (Flanged)BUSHING (Flanged)
-
2623-17596 BUSHINGBUSHING
-
278M0084729 LINKLINK
-
-27-828553A97 GASKET SETGASKET SET
