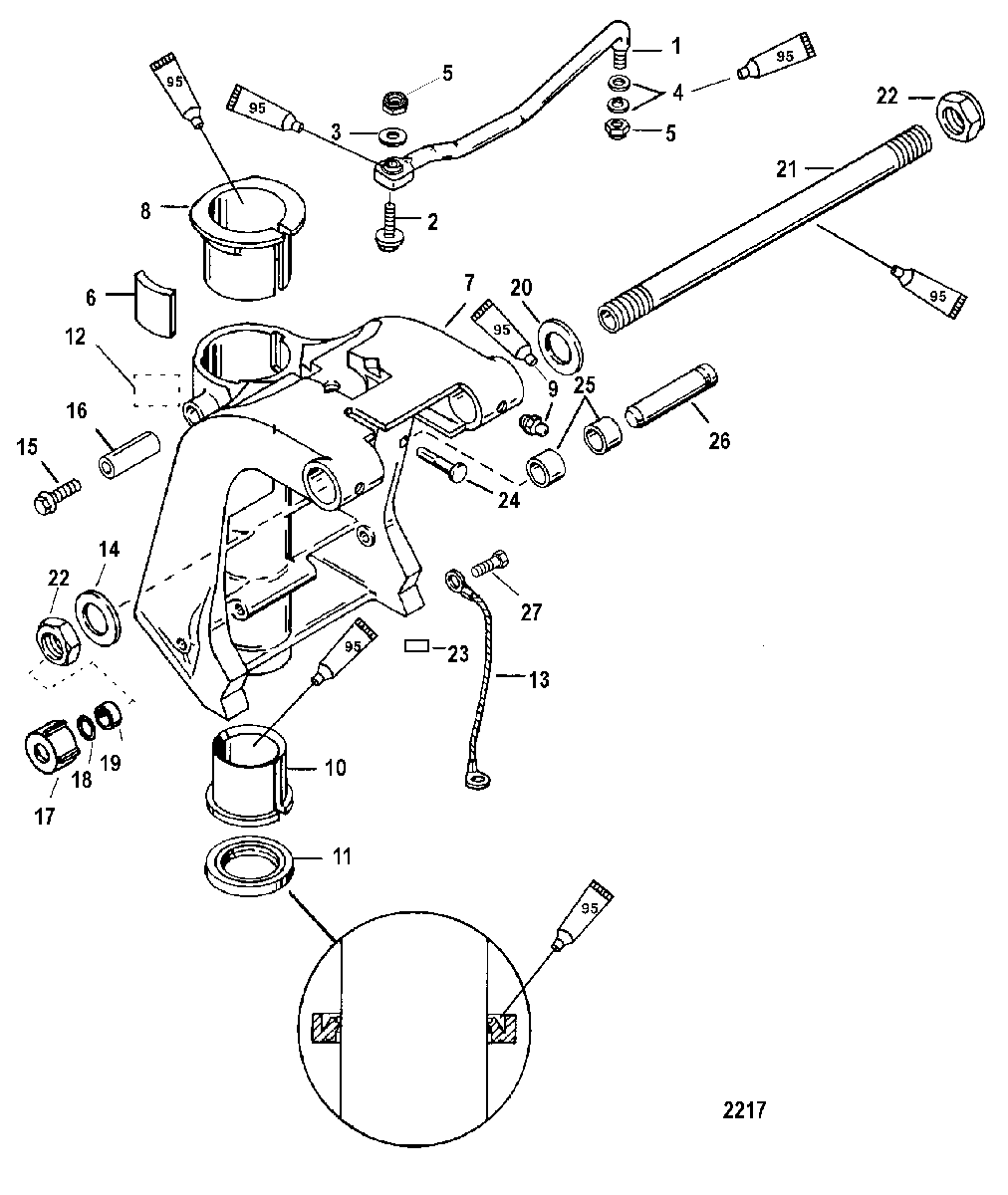

Swivel Bracket для Mariner - 30 JET (3 CYL.) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
119608A14 ATTACHING KIT, Engine Steering
(Non-Handle)ATTACHING KIT, Engine Steering
(Non-Handle) -
210-823919 SCREW, (.375-24 x 1.500)
(Non-Handle)SCREW, (.375-24 x 1.500)
(Non-Handle) -
312-8M0109680 WASHER, (.390 x .546 x .12)
(Non-Handle)WASHER, (.390 x .546 x .12)
(Non-Handle) -
412-37828 WASHER, (.390 x .625 x .062) Stainless Steel
(Non-Handle)WASHER, (.390 x .625 x .062) Stainless Steel
(Non-Handle) -
511-8M0042636 NUT, (.375-24) Stainless Steel
(Non-Handle)NUT, (.375-24) Stainless Steel
(Non-Handle) -
6822397 PUCK
(Non-Handle)PUCK
(Non-Handle) -
73410-827402T5 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
823-8217711 BUSHING (Upper)BUSHING (Upper)
-
922-74036 FITTING, Grease
(Quanty of 4 on Handle Version)FITTING, Grease
(Quanty of 4 on Handle Version) -
1023-821777 BUSHING (Lower)BUSHING (Lower)
-
1126-822404 SEALSEAL
-
12NSS NOT SOLD SEPARATE
(Decal-Serial Overlaminate)NOT SOLD SEPARATE
(Decal-Serial Overlaminate) -
1388238A11 CABLE ASSEMBLYCABLE ASSEMBLY
-
1412-19619 WASHERWASHER
-
1510-4008910 SCREW, (M8 x 10) Stainless Steel
(Handle)SCREW, (M8 x 10) Stainless Steel
(Handle) -
1510-40011149 SCREW, (M8 x 25) Stainless Steel
(Non-Handle)SCREW, (M8 x 25) Stainless Steel
(Non-Handle) -
168282451 SEAL
(Non-Handle)SEAL
(Non-Handle) -
1719624A1 SEAL KIT
(Non-Handle)SEAL KIT
(Non-Handle) -
1825-29619 O-RING, (.583 x .103)
(NonHandle)O-RING, (.583 x .103)
(NonHandle) -
1923-78861 SPACER
(Non-Handle)SPACER
(Non-Handle) -
2012-19619 WASHERWASHER
-
218M0041938 TILT TUBETILT TUBE
-
2211-858869 NUT, (.875-14)NUT, (.875-14)
-
2337-8237011 DECAL, Co-PilotDECAL, Co-Pilot
-
2417-821539 PIN, TrilobePIN, Trilobe
-
2523-823507 BUSHINGBUSHING
-
2617-822480 PIN, Pivot (Upper)PIN, Pivot (Upper)
-
2710-878607 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
