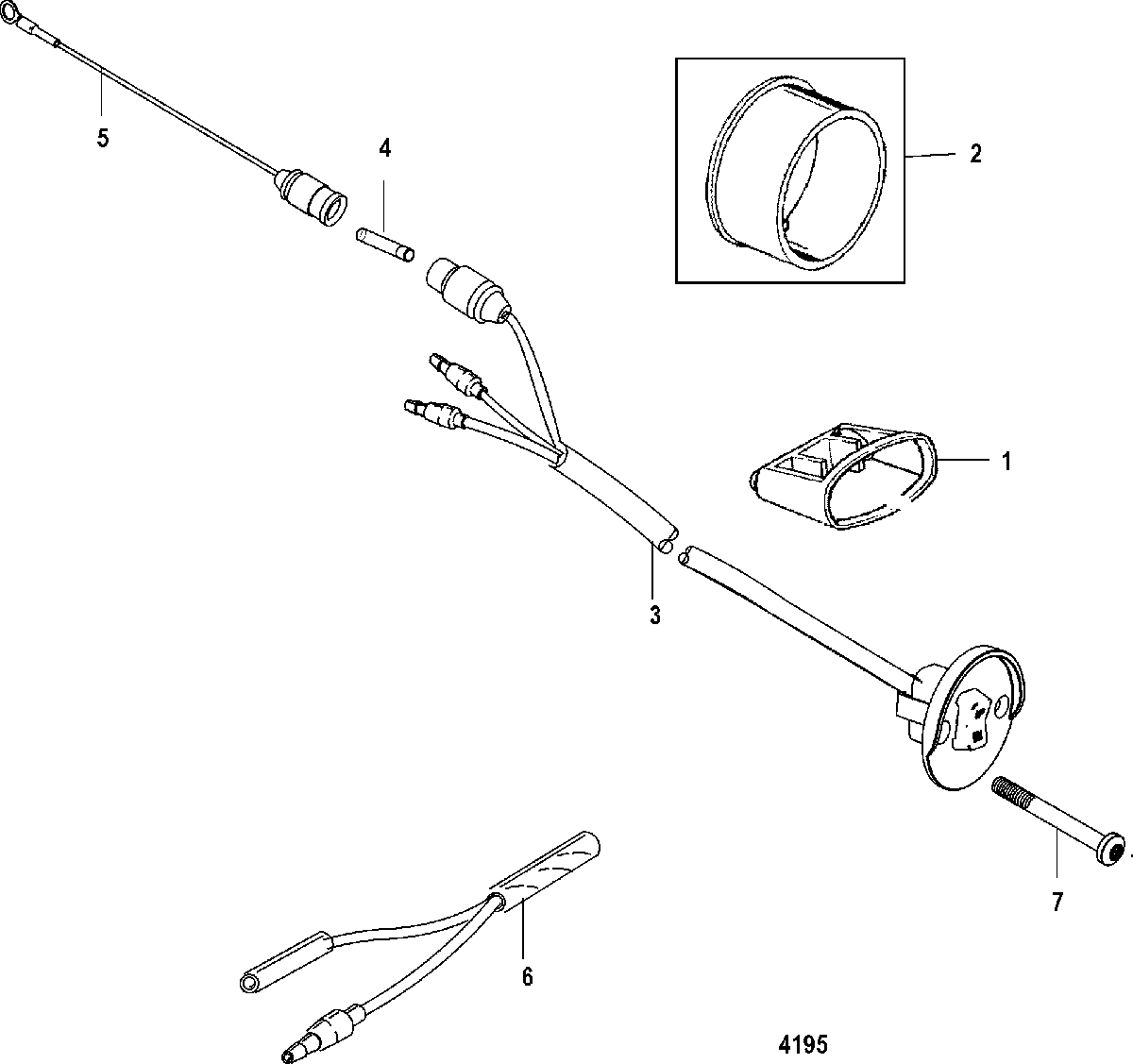

Trim Switch Kit для Mariner - 30 JET (3 CYL.) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
-87-18286A18 SWITCH KIT, Trim (10.00 Feet)SWITCH KIT, Trim (10.00 Feet)
-
118861 RETAINERRETAINER
-
2814820 ADAPTORADAPTOR
-
3NSS NOT SOLD SEPARATE
(Switch)NOT SOLD SEPARATE
(Switch) -
488-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
584-95084A2 CABLE ASSEMBLYCABLE ASSEMBLY
-
684-11149A2 CABLE ASSEMBLY, (6.00 Inches)CABLE ASSEMBLY, (6.00 Inches)
-
710-19209 SCREW, (#10-32 x 2.25)SCREW, (#10-32 x 2.25)
-
710-813523 SCREW, (#10-16 x 2.25)SCREW, (#10-16 x 2.25)
Все узлы модели:
- Accessories
- Attenuator Plate
- Bottom Cowl
- Carburetor
- Clamp Bracket
- Crankshaft, Pistons and Connection Rods
- Cylinder Block and Crankcase
- Driveshaft Housing/Exhaust Plate
- Electrical Components
- Flywheel and Stator(Electric)
- Flywheel and Stator(Manual)
- Fuel Pump(Electric)
- Fuel Pump(Manual)
- Gasket Set Components-Engine Overhaul
- Gear Housing(Driveshaft)(1.83:1 Gear Ratio)
- Gear Housing, Propeller Shaft - 1.83:1 Gear Ratio
- Induction Manifold and Reed Block
- Jet Components
- Jet Pump Assembly
- Lube Chart
- Oil Injection Components
- Power Trim
- Service/Support Material
- Starter Assembly(Manual)
- Starter Motor
- Swivel Bracket
- Swivel Tube
- Throttle Lever and Linkage
- Tiller Handle
- Tools, Special
- Tools, Special
- Top Cowl
- • Trim Switch Kit
