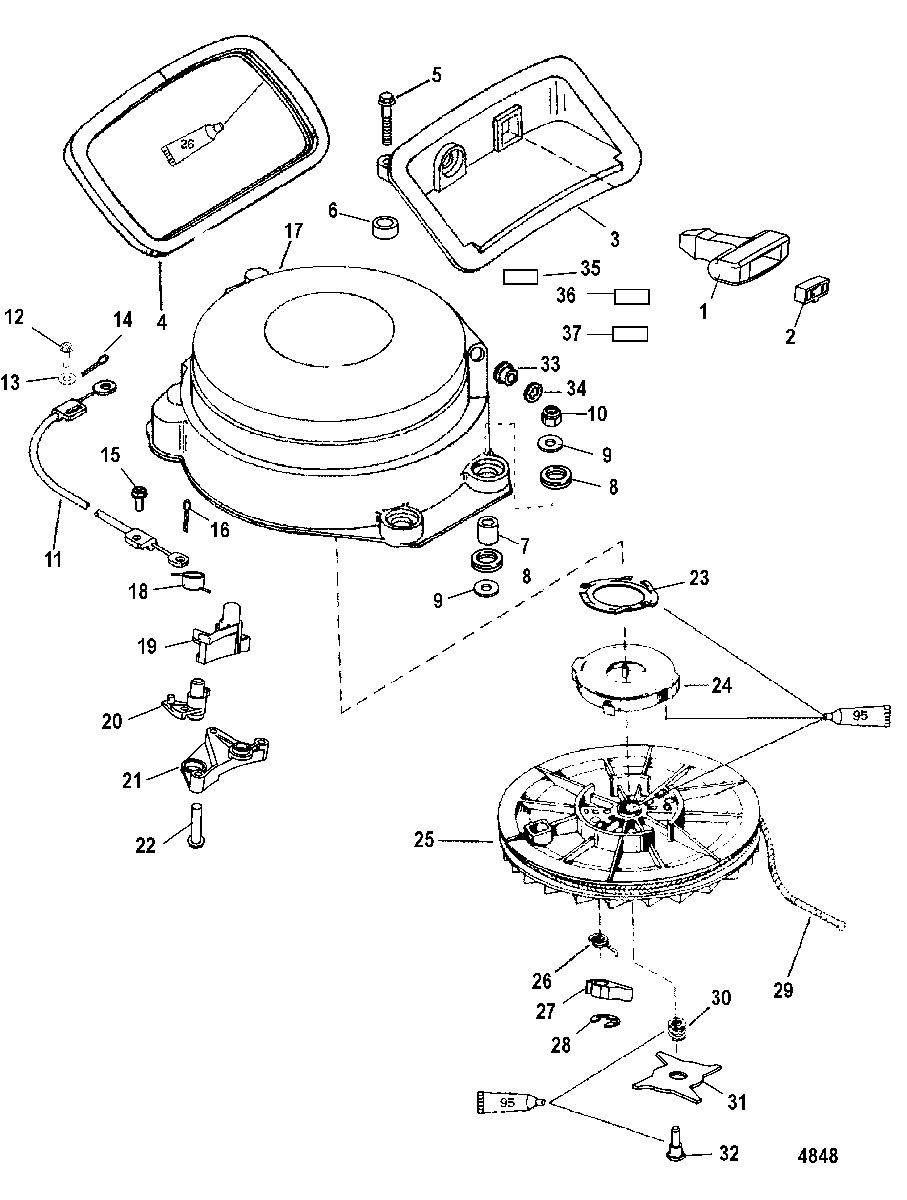

Starter Assembly(Manual) для Mariner - 30 JET (3 CYL.) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
185174A1 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
2NSS NOT SOLD SEPARATE
(Retainer)NOT SOLD SEPARATE
(Retainer) -
-821788A6 REST ASSEMBLY, Starter HandleREST ASSEMBLY, Starter Handle
-
3NSS NOT SOLD SEPARATE
(Rest)NOT SOLD SEPARATE
(Rest) -
48M0043416 SEALSEAL
-
510-4010630 SCREW, (M6 x 30) Stainless SteelSCREW, (M6 x 30) Stainless Steel
-
623-830190 SPACERSPACER
-
723-816086 BUSHINGBUSHING
-
825-8157951 GROMMETGROMMET
-
912-858779 WASHER, (.265 x .750 x .048)WASHER, (.265 x .750 x .048)
-
1011-401196 NUT, (M6)NUT, (M6)
-
118567541 CABLE, InterlockCABLE, Interlock
-
1210-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
1312-73288 WASHER, (.220 x .500 x .030) Stainless SteelWASHER, (.220 x .500 x .030) Stainless Steel
-
1418-26811 COTTER PINCOTTER PIN
-
1510-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1618-26811 COTTER PINCOTTER PIN
-
-816728T14 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
17816728T05 HOUSINGHOUSING
-
1824-826791 SPRINGSPRING
-
198166903 LEVERLEVER
-
20816712T01 CAMCAM
-
21816711 RETAINERRETAINER
-
2210-8182491 SCREW, (#10-16 x 1.00)SCREW, (#10-16 x 1.00)
-
2313-826229 LOCKWASHER, SPRINGLOCKWASHER, SPRING
-
2424-86857T01 SPRINGSPRING
-
2550-825269T01 SHEAVE, StarterSHEAVE, Starter
-
2624-86851T02 SPRINGSPRING
-
27868501 CAMCAM
-
2853-86849T01 RING, RetainingRING, Retaining
-
2950-12066Q10 ROPEROPE
-
3024-868523 SPRINGSPRING
-
3186853T01 CAMCAM
-
3210-826253 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
3342690 BUSHINGBUSHING
-
3453-818853 RING, RetainingRING, Retaining
-
35NSS NOT SOLD SEPARATE
(Timing Decal)NOT SOLD SEPARATE
(Timing Decal) -
36NSS NOT SOLD SEPARATE
(Decal-Caution in Gear Idle)NOT SOLD SEPARATE
(Decal-Caution in Gear Idle) -
3737-856985A7 DECAL, EPA Label Information
(1999)DECAL, EPA Label Information
(1999) -
3737-804665A00 DECAL, EPA Label Information
(2000)DECAL, EPA Label Information
(2000) -
3737-804665A01 DECAL, EPA Label Information
(2001)DECAL, EPA Label Information
(2001) -
3737-804665A02 DECAL, EPA Label Information
(2002)DECAL, EPA Label Information
(2002) -
3737-804665A03 DECAL, EPA Label Information
(2003)DECAL, EPA Label Information
(2003) -
3737-804665A04 DECAL, EPA Label Information
(2004)DECAL, EPA Label Information
(2004)
