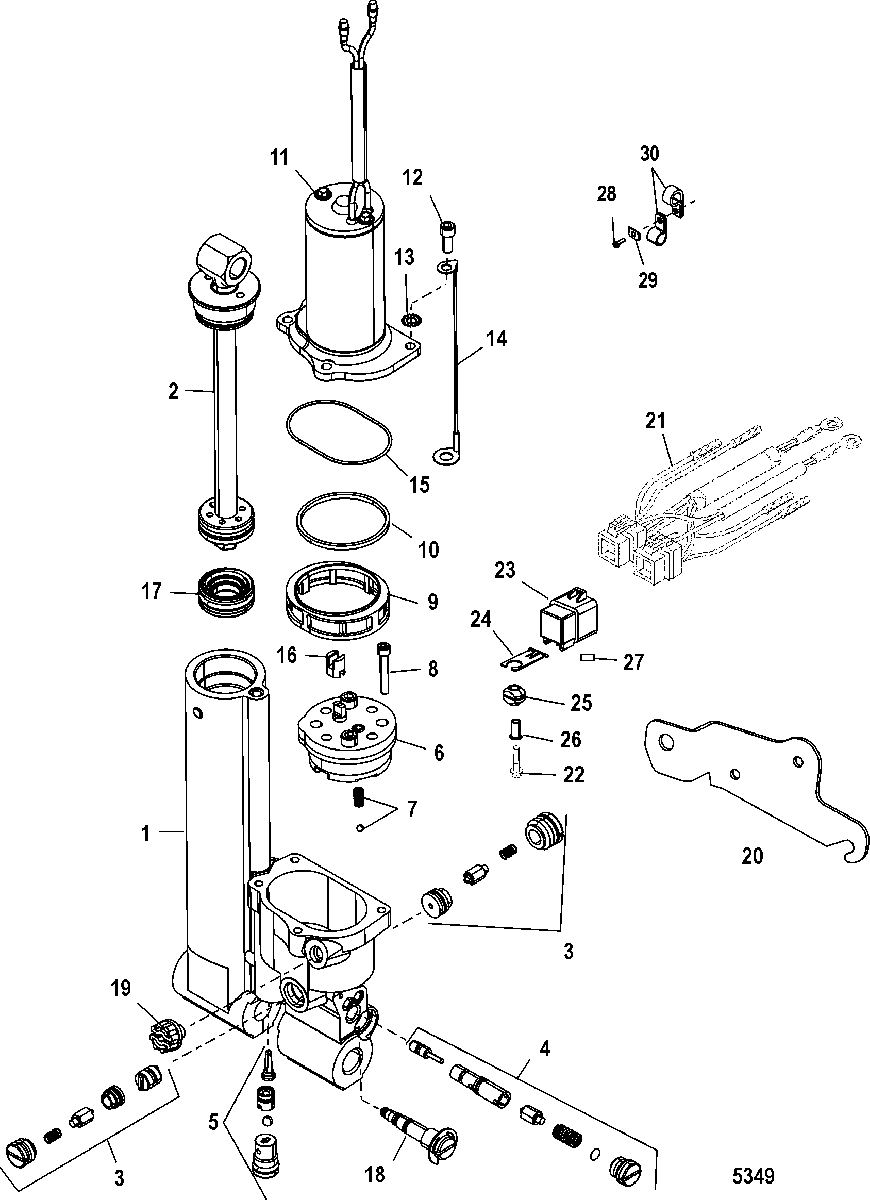

Power Trim для Mariner - 30 JET (3 CYL.) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
1822344T14 POWER TRIM ASSEMBLYPOWER TRIM ASSEMBLY
-
-25-827668A1 O-RING KITO-RING KIT
-
2893931A01 SHOCK ROD ASSEMBLYSHOCK ROD ASSEMBLY
-
3827671A1 PILOT CHECK ASSEMBLYPILOT CHECK ASSEMBLY
-
4827672A1 TILT RELIEF VALVE ASSEMBLYTILT RELIEF VALVE ASSEMBLY
-
5827673A1 SEAT ASSEMBLY, SuctionSEAT ASSEMBLY, Suction
-
6827674A1 PUMP ASSEMBLYPUMP ASSEMBLY
-
7NSS NOT SOLD SEPARATE
(Ball/Spring)NOT SOLD SEPARATE
(Ball/Spring) -
8NSS NOT SOLD SEPARATE
(Screw)NOT SOLD SEPARATE
(Screw) -
9NSS NOT SOLD SEPARATE
(Filter)NOT SOLD SEPARATE
(Filter) -
10NSS NOT SOLD SEPARATE
(O Ring)NOT SOLD SEPARATE
(O Ring) -
11827675A1 MOTOR ASSEMBLYMOTOR ASSEMBLY
-
12NSS NOT SOLD SEPARATE
(Screw)NOT SOLD SEPARATE
(Screw) -
13NSS NOT SOLD SEPARATE
(Washer)NOT SOLD SEPARATE
(Washer) -
1488238A15 CABLE ASSEMBLYCABLE ASSEMBLY
-
15NSS NOT SOLD SEPARATE
(O Ring)NOT SOLD SEPARATE
(O Ring) -
16NSS NOT SOLD SEPARATE
(Coupler)NOT SOLD SEPARATE
(Coupler) -
17827676 PISTON, MemoryPISTON, Memory
-
18893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
1919-811613 PLUG ASSEMBLYPLUG ASSEMBLY
-
20831276T BRACKETBRACKET
-
2184-826802A9 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
2210-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
23882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
24828102 BRACKETBRACKET
-
2525-818967 GROMMETGROMMET
-
2623-818968 BUSHINGBUSHING
-
27NSS NOT SOLD SEPARATE
(Decal)NOT SOLD SEPARATE
(Decal) -
2810-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
298M0084613 C WASHERC WASHER
-
3054-22740 CLIPCLIP
