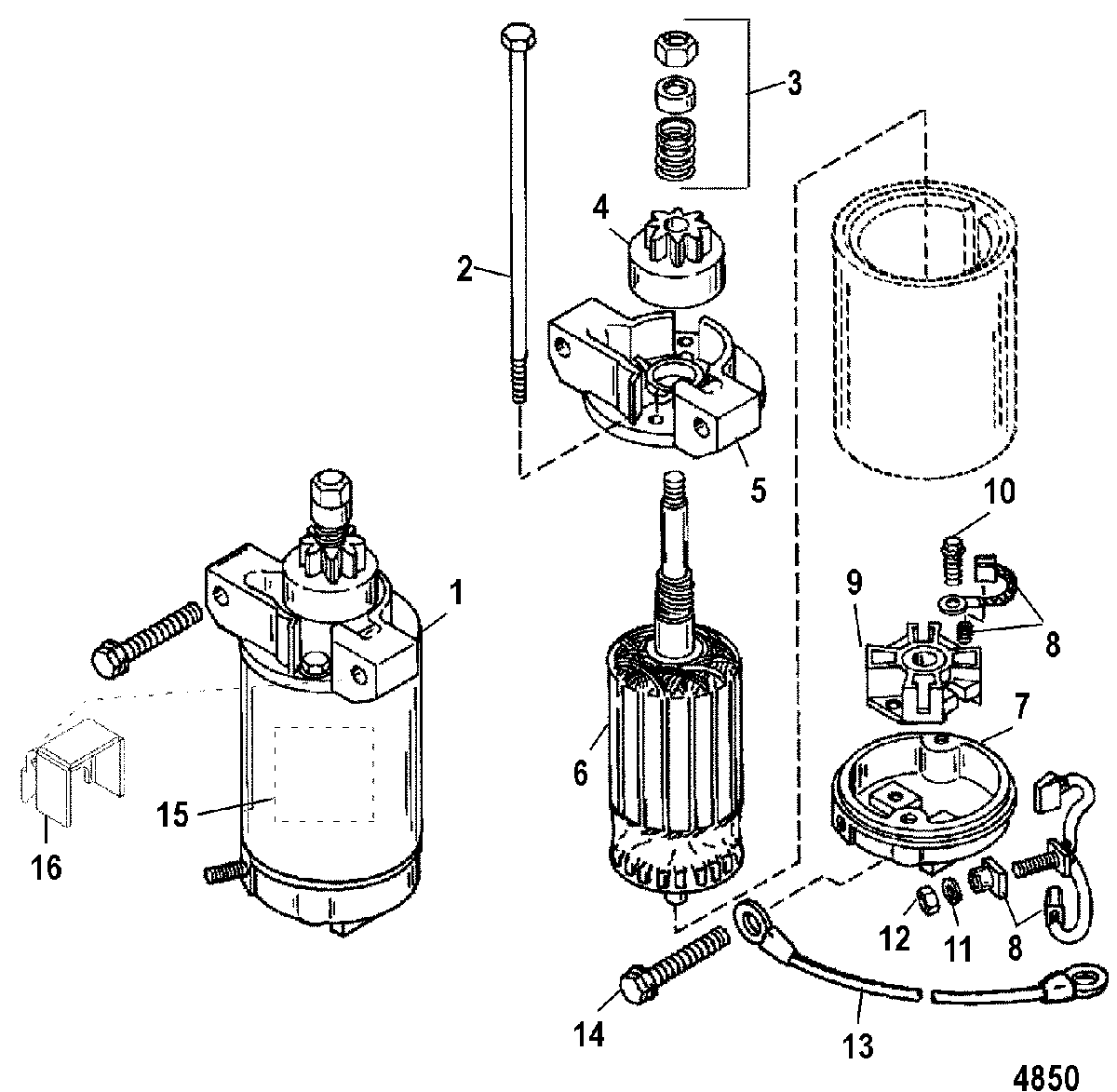

Starter Motor для Mariner - 30 JET (3 CYL.) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
150-893890T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
210-965661 THRU BOLTTHRU BOLT
-
390643 DRIVE KITDRIVE KIT
-
4685753 DRIVE ASSEMBLYDRIVE ASSEMBLY
-
58236392 DRIVE CAPDRIVE CAP
-
6965651 ARMATUREARMATURE
-
78119011 CAP, CommutatorCAP, Commutator
-
8898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
9898265014 HOLDERHOLDER
-
10F15158 SCREWSCREW
-
1113-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1211-64015 NUT, (.250-20)NUT, (.250-20)
-
1384-88439A9 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
1410-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
15NSS NOT SOLD SEPARATE, Decal-WarningNOT SOLD SEPARATE, Decal-Warning
-
16823989 BRACKET, Oil TankBRACKET, Oil Tank
