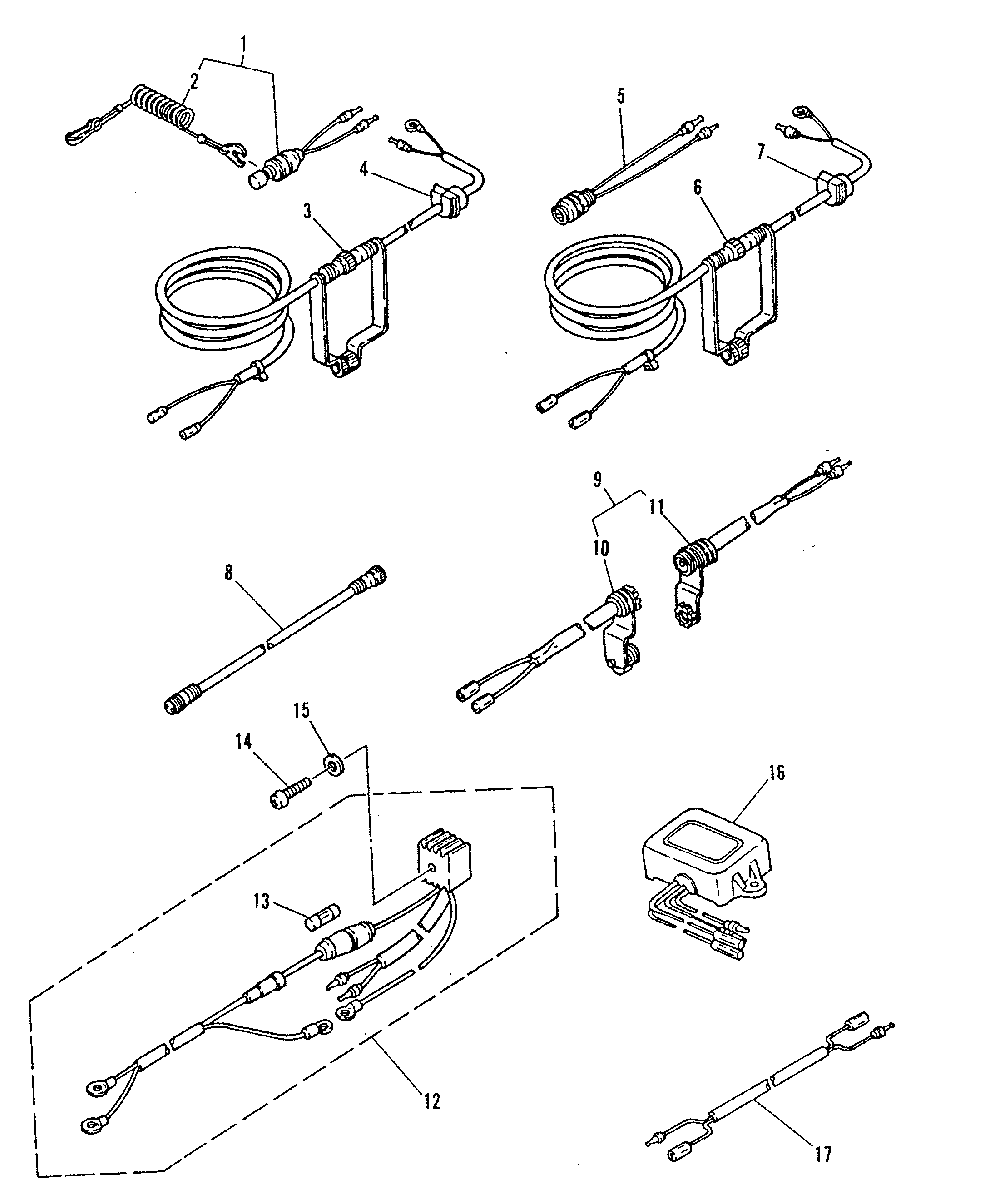

ELECTRICAL COMPONENTS (KILL SWITCH ASSEMBLY) для Mariner - 40 (TWIN CARB) (W/OIL INJECTION) 6E9-450001 AND UP (EL)
-
№АртикулНазвание
-
187-97765M KILL SWITCH ASSEMBLYKILL SWITCH ASSEMBLY
-
297756M STOPPERSTOPPER
-
393053M EXTENSIONEXTENSION
-
425-94536M GROMMETGROMMET
-
587-97754M STOP SWITCHSTOP SWITCH
-
693053M EXTENSIONEXTENSION
-
725-94536M GROMMETGROMMET
-
884959M EXTENSIONEXTENSION
-
984-84124M LEAD WIRE EXTENSIONLEAD WIRE EXTENSION
-
1084-99051M CONNECTORCONNECTOR
-
1184-99052M CONNECTORCONNECTOR
-
1283-8M0060278 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
1388-81522M FUSEFUSE
-
1410-83108M SCREWSCREW
-
1512-82211M WASHERWASHER
-
1684125T VOLTAGE REGULATORVOLTAGE REGULATOR
-
1784-14773M LEAD WIRELEAD WIRE
