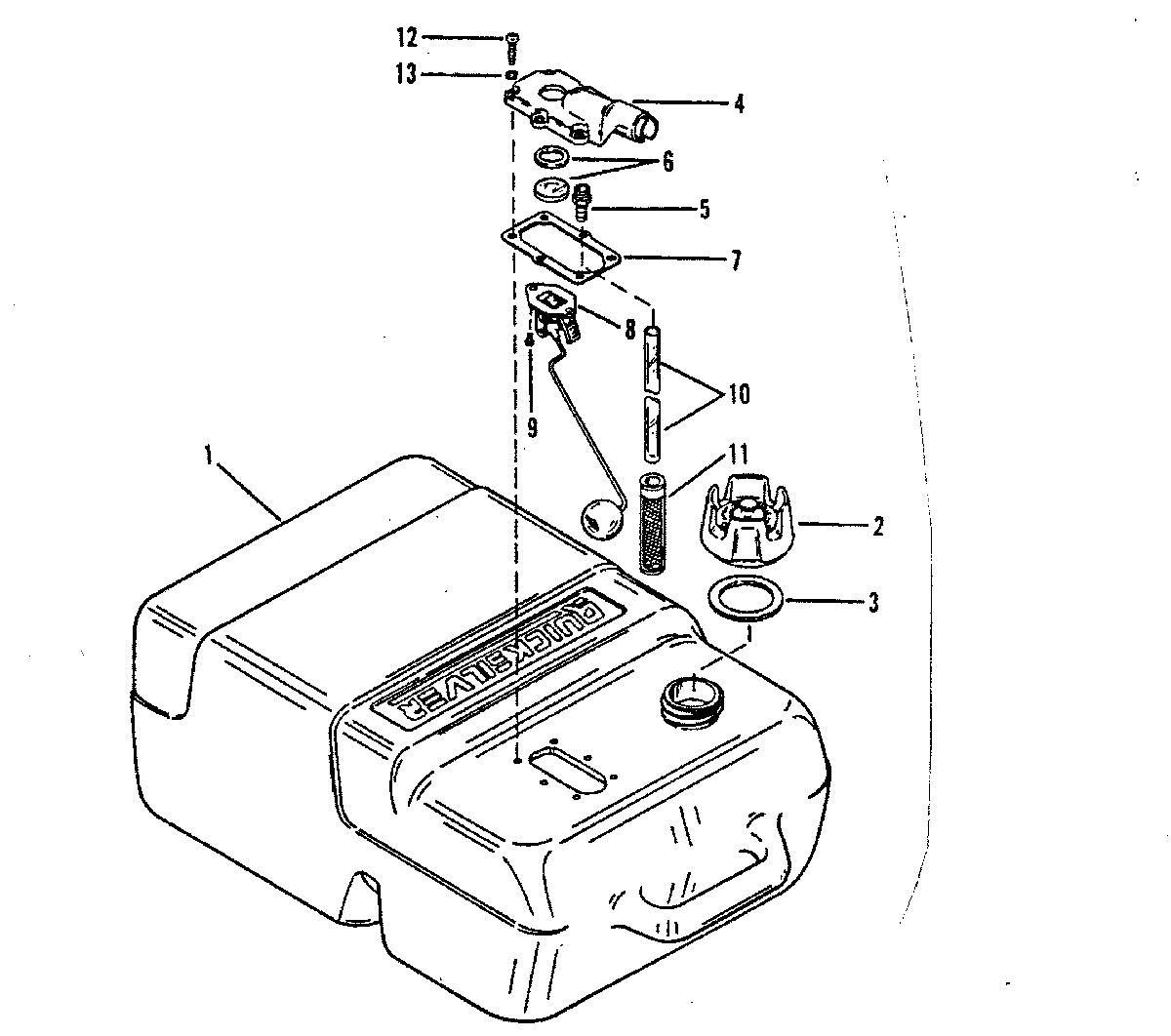

FUEL TANK AND FUEL LINE ASSEMBLY-NOT ORIGINAL EQUIPMENT TANK для Mariner - 40 (TWIN CARB) (W/OIL INJECTION) 6E9-450001 AND UP (EL)
-
№АртикулНазвание
-
11259-812410A1 FUEL TANK ASSEMBLY (PLASTIC-6.6 GALLONS)FUEL TANK ASSEMBLY (PLASTIC-6.6 GALLONS)
-
236-816976Q1 FILLER CAPFILLER CAP
-
327-8169771 GASKETGASKET
-
417792A1 PICK-UP BODY ASSEMBLYPICK-UP BODY ASSEMBLY
-
522-826178 ADAPTORADAPTOR
-
698542A1 WINDOW ASSEMBLYWINDOW ASSEMBLY
-
727-18026 GASKETGASKET
-
817971A2 FUEL GAUGE ASSEMBLYFUEL GAUGE ASSEMBLY
-
910-62568 SCREWSCREW
-
1032-827756A1 HOSEHOSE
-
1135-823534 FILTERFILTER
-
1210-18027 SCREWSCREW
-
1312-29070 WASHERWASHER
