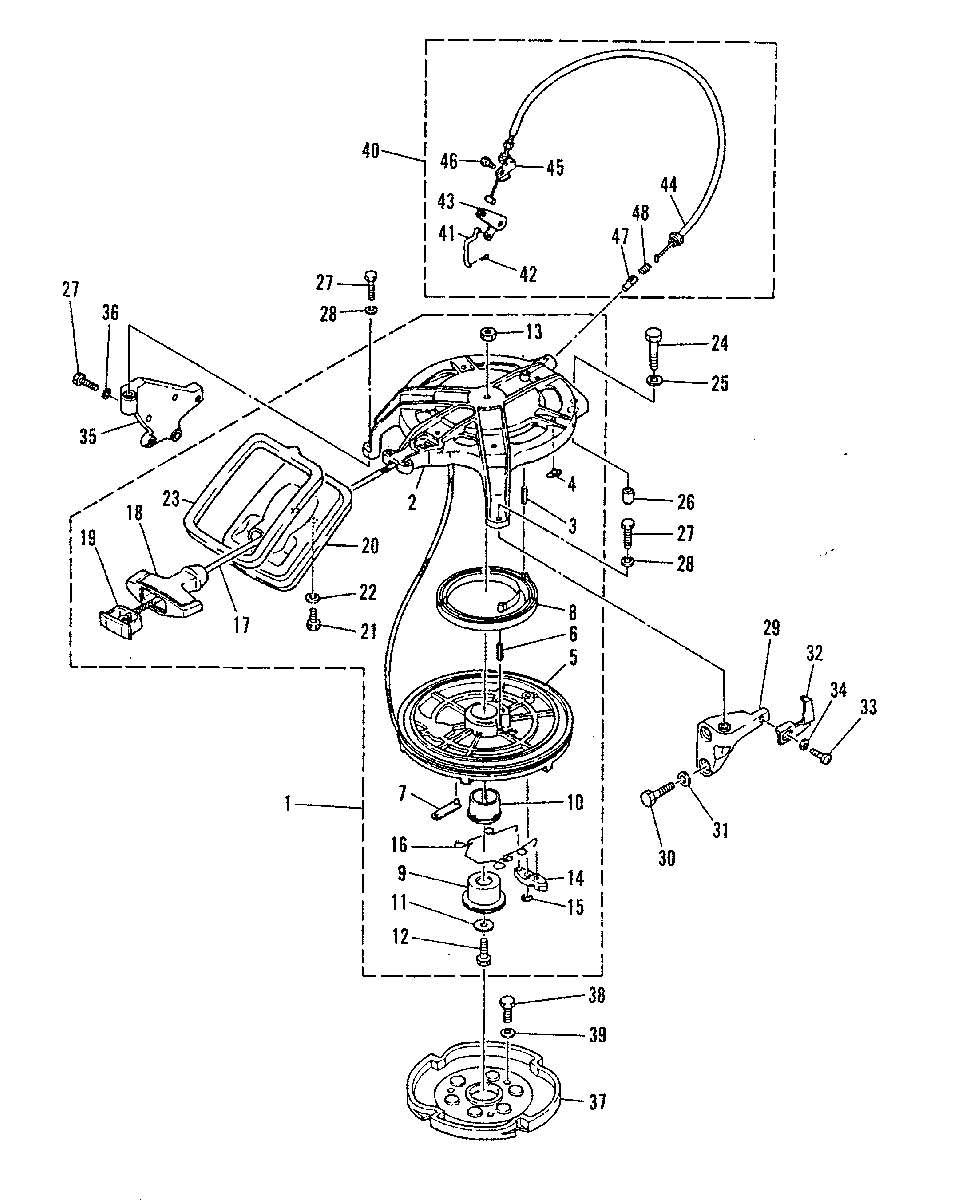

RECOIL STARTER для Mariner - 40 (TWIN CARB) (W/OIL INJECTION) 6E9-450001 AND UP (EL)
-
№АртикулНазвание
-
12169-814528M STARTER ASSEMBLYSTARTER ASSEMBLY
-
22169-811912M HOUSINGHOUSING
-
22169-811912M HOUSINGHOUSING
-
317-82157M PINPIN
-
423-83585M STAYSTAY
-
550-83587M STARTERSTARTER
-
617-82157M PINPIN
-
754-84893M CLIPCLIP
-
824-83588M SPRINGSPRING
-
923-83590M SHAFTSHAFT
-
1023-83589M BUSHINGBUSHING
-
1112-81801M WASHERWASHER
-
1210-84342M BOLTBOLT
-
1311-82382M NUTNUT
-
1484894M PAWLPAWL
-
1553-84895M SNAP RINGSNAP RING
-
1624-83591M SPRINGSPRING
-
1750-12066Q10 STARTER ROPESTARTER ROPE
-
18814491M HANDLEHANDLE
-
19814492M COVERCOVER
-
20814531M GUIDEGUIDE
-
2110-826957M BOLTBOLT
-
2213-82212M WASHERWASHER
-
2326-814532M SEALSEAL
-
2410-97749M BOLTBOLT
-
2513-82215M WASHERWASHER
-
2617-14229M PINPIN
-
2710-82405M BOLTBOLT
-
2813-82212M WASHERWASHER
-
29814533M BRACKETBRACKET
-
3010-82441M BOLTBOLT
-
3112-82217M WASHERWASHER
-
32814534M ARMARM
-
3310-83523M SCREWSCREW
-
3412-82211M WASHERWASHER
-
35814535M BRACKETBRACKET
-
3612-82214M WASHERWASHER
-
37814536M PULLEYPULLEY
-
3810-82438M BOLTBOLT
-
3912-82217M WASHERWASHER
-
4093105M SAFETY STARTERSAFETY STARTER
-
4183595M LINKLINK
-
4218-82125M COTTER PINCOTTER PIN
-
4383596M ARMARM
-
4483597M CABLECABLE
-
4593106M BRACKETBRACKET
-
4610-91772M BOLTBOLT
-
4781106M PLUNGERPLUNGER
-
4824-82079M SPRINGSPRING
