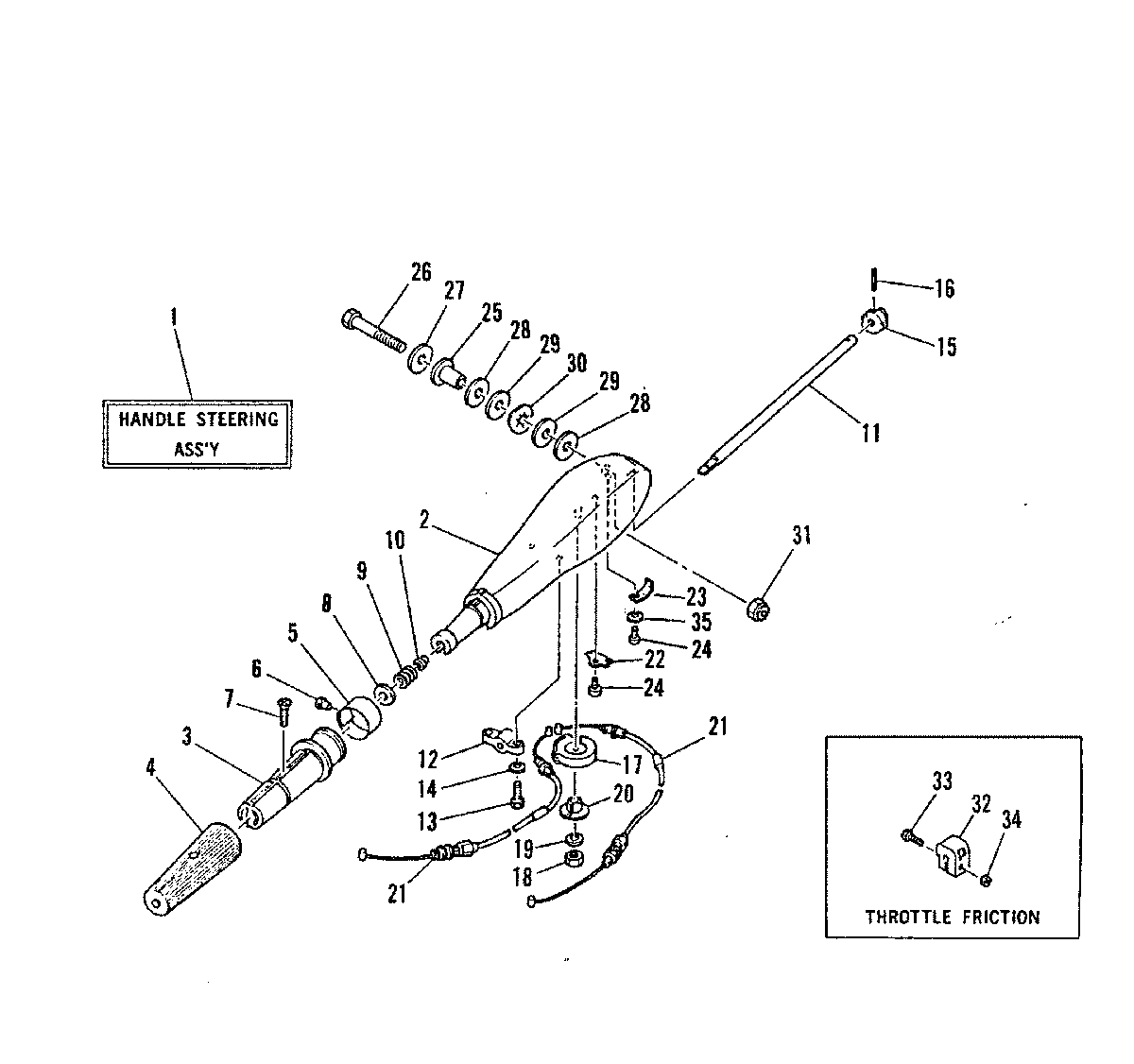

STEERING HANDLE для Mariner - 40 (TWIN CARB) (W/OIL INJECTION) 6E9-450001 AND UP (EL)
-
№АртикулНазвание
-
195419A1 STEERING HANDLE ASSEMBLYSTEERING HANDLE ASSEMBLY
-
284971M HANDLEHANDLE
-
381585M GRIPGRIP
-
48M0080456 RUBBERRUBBER
-
597747M THROTTLE INDICATORTHROTTLE INDICATOR
-
617-81907M RIVETRIVET
-
710-811916M SCREWSCREW
-
812-82220M WASHERWASHER
-
924-82095M SPRINGSPRING
-
1023-81945M BUSHINGBUSHING
-
1183516M SHAFTSHAFT
-
1283517M BRACKETBRACKET
-
1310-84058M BOLTBOLT
-
1412-82214M WASHERWASHER
-
1543-80778M GEARGEAR
-
1617-82151M ROLL PINROLL PIN
-
1743-83518M PINIONPINION
-
1811-82389M NUTNUT
-
1913-82212M WASHERWASHER
-
2023-83519M BUSHINGBUSHING
-
2197748M THROTTLE WIRETHROTTLE WIRE
-
2283521M HOLDERHOLDER
-
2383522M HOLDERHOLDER
-
2410-84313M SCREWSCREW
-
2523-81950M BUSHINGBUSHING
-
2610-94514M BOLTBOLT
-
2712-83524M WASHERWASHER
-
2812-81853M WASHERWASHER
-
2912-81815M WASHERWASHER
-
3013-81870M WAVE WASHERWAVE WASHER
-
3111-81786M NUTNUT
-
3282895M FRICTION PIECEFRICTION PIECE
-
3310-84058M BOLTBOLT
-
3411-83056M NUTNUT
-
3512-82211M WASHERWASHER
