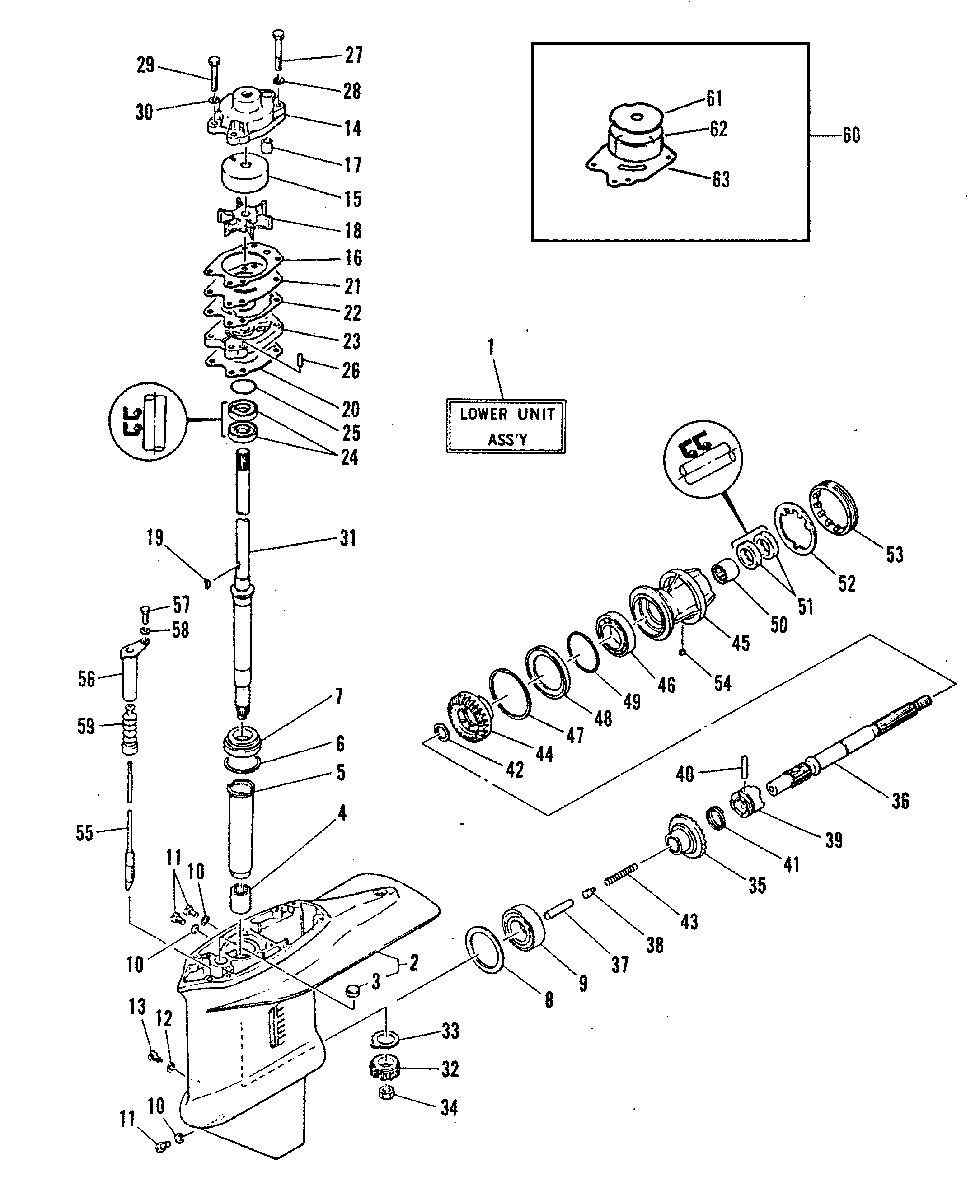

GEAR HOUSING ASSEMBLY для Mariner - 40 (TWIN CARB) (W/OIL INJECTION) 6E9-450001 AND UP (EL)
-
№АртикулНазвание
-
11651-9680M GEAR HOUSING ASSEMBLY (SHORT)GEAR HOUSING ASSEMBLY (SHORT)
-
11651-9681M GEAR HOUSING ASSEMBLY (LONG)GEAR HOUSING ASSEMBLY (LONG)
-
21651-9573M GEAR HOUSINGGEAR HOUSING
-
322-83857M PLUGPLUG
-
431-82316T NEEDLE BEARINGNEEDLE BEARING
-
583868M SLEEVESLEEVE
-
615-19148M SHIM (0.10MM)SHIM (0.10MM)
-
615-19148002 SHIM (0.12MM)SHIM (0.12MM)
-
615-19149M SHIM (0.15MM)SHIM (0.15MM)
-
615-19150M SHIM (0.18MM)SHIM (0.18MM)
-
615-19148004 SHIM (0.30MM)SHIM (0.30MM)
-
615-19152M SHIM (0.40MM)SHIM (0.40MM)
-
615-19153M SHIM (0.50MM)SHIM (0.50MM)
-
731-82319T BEARINGBEARING
-
815-19154M SHIM (0.10MM)SHIM (0.10MM)
-
815-19148003 SHIM (0.12MM)SHIM (0.12MM)
-
815-19156M SHIM (0.15MM)SHIM (0.15MM)
-
815-19157M SHIM (0.18MM)SHIM (0.18MM)
-
815-19158M SHIM (0.30MM)SHIM (0.30MM)
-
815-19159M SHIM (0.40MM)SHIM (0.40MM)
-
815-81460M SHIM (0.50MM)SHIM (0.50MM)
-
931-82320T BEARINGBEARING
-
1027-81987 GASKETGASKET
-
1122-81924M PLUGPLUG
-
1227-95610 GASKETGASKET
-
1310-83392M SCREWSCREW
-
1446-83396M COVERCOVER
-
1583403M INSERTINSERT
-
1627-83398 GASKETGASKET
-
1726-81426M WATER SEALWATER SEAL
-
1847-99971M IMPELLERIMPELLER
-
1928-83444M WOODRUFF KEYWOODRUFF KEY
-
2027-83865 GASKETGASKET
-
2183400M OUTER PLATEOUTER PLATE
-
2227-83399 GASKETGASKET
-
2346-8M0070508 WATER PUMP BASEWATER PUMP BASE
-
2426-854017 OIL SEALOIL SEAL
-
2525-82275M O-RINGO-RING
-
2617-82354M DOWEL PINDOWEL PIN
-
2710-84057M BOLTBOLT
-
2812-82217M WASHERWASHER
-
2910-85277614 BOLTBOLT
-
3012-82217M WASHERWASHER
-
11651-9680M GEAR HOUSING ASSEMBLY (SHORT)GEAR HOUSING ASSEMBLY (SHORT)
-
11651-9681M GEAR HOUSING ASSEMBLY (LONG)GEAR HOUSING ASSEMBLY (LONG)
-
3145-83866M DRIVESHAFT (SHORT)DRIVESHAFT (SHORT)
-
3145-83867M DRIVESHAFT (LONG)DRIVESHAFT (LONG)
-
3243-83869T PINIONPINION
-
3312-81455M BEARINGBEARING
-
3411-81772M NUTNUT
-
3543-83877T FORWARD GEARFORWARD GEAR
-
3644-94531M PROPELLER SHAFTPROPELLER SHAFT
-
3783419M CAM FOLLOWERCAM FOLLOWER
-
3881475M SHIFT SLIDESHIFT SLIDE
-
3952-81473T CLUTCHCLUTCH
-
4017-81903M CROSS PINCROSS PIN
-
4181474M RINGRING
-
4212-81837M WASHERWASHER
-
4324-83429M SPRINGSPRING
-
4443-83879T REVERSE GEARREVERSE GEAR
-
458M0121494 HOUSINGHOUSING
-
4630-82296T BEARINGBEARING
-
4715-19160M SHIM (0.10MM)SHIM (0.10MM)
-
4715-19163002 SHIM (0.12MM)SHIM (0.12MM)
-
4715-19161M SHIM (0.15MM)SHIM (0.15MM)
-
4715-19162M SHIM (0.18MM)SHIM (0.18MM)
-
4715-19163001 SHIM (0.30MM)SHIM (0.30MM)
-
4715-19164M SHIM (0.40MM)SHIM (0.40MM)
-
4715-19165M SHIM (0.50MM)SHIM (0.50MM)
-
4812-81461M THRUST WASHERTHRUST WASHER
-
4925-82289M O-RINGO-RING
-
5031-82317M NEEDLE BEARINGNEEDLE BEARING
-
5126-854017 OIL SEALOIL SEAL
-
5214-81877M TAB WASHERTAB WASHER
-
5311-8M0059031 NUTNUT
-
5428-81916M KEYKEY
-
5583881M SHIFT CAM (SHORT)SHIFT CAM (SHORT)
-
5583882M SHIFT CAM (LONG)SHIFT CAM (LONG)
-
5683883M BUSHINGBUSHING
-
5710-82423M BOLTBOLT
-
5812-82214M WASHERWASHER
-
5982881M BOOTBOOT
-
6046-83884M CHROME WATER PUMP KITCHROME WATER PUMP KIT
-
6183449M INNER PLATEINNER PLATE
-
6283450M INSERTINSERT
-
6383448M OUTER PLATEOUTER PLATE
-
-27-94533M LOWER UNIT GASKET SET
CONTENTS INDICATED BY FOOTNOTE 3LOWER UNIT GASKET SET
CONTENTS INDICATED BY FOOTNOTE 3 -
-84363T WATER PUMP REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 4WATER PUMP REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 4
