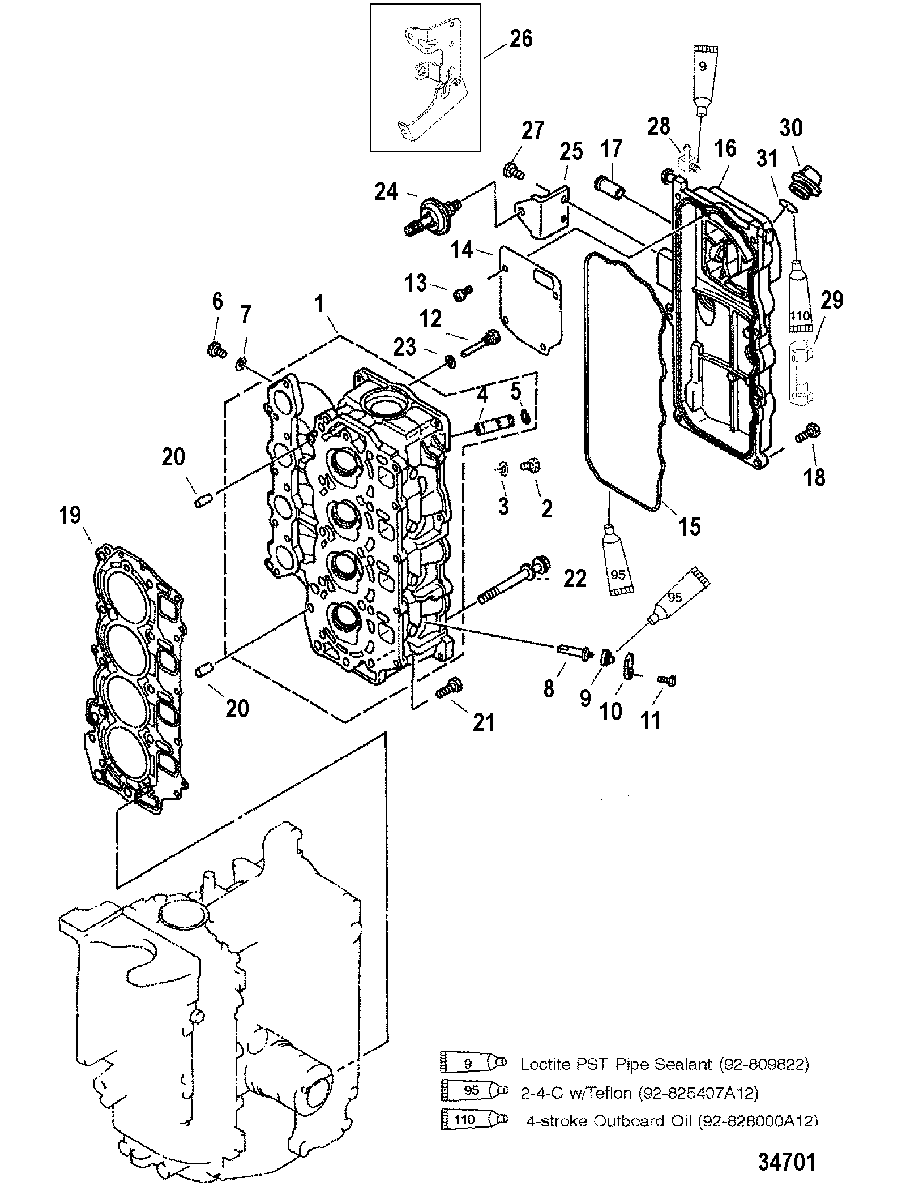

Cylinder Head для Mariner - 50 BIGFOOT (4-STROKE) 0G760300 THRU 0T178499
-
№АртикулНазвание
-
-825034A17 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
1825034A9 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
210-83124714 BOLTBOLT
-
312-831246 WASHER, SealingWASHER, Sealing
-
48M0054272 GUIDEGUIDE
-
553-825038 CIRCLIPCIRCLIP
-
610-84088M SCREW, (M6 x 10)SCREW, (M6 x 10)
-
727-827610 GASKETGASKET
-
8826887M ANODEANODE
-
925-825040 GROMMETGROMMET
-
10826888M COVERCOVER
-
1110-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1210-827607 BOLTBOLT
-
1310-4005785 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
14825055 COVERCOVER
-
1525-825056 O-RINGO-RING
-
168250534 COVER
SN# 0G960500 & UpCOVER
SN# 0G960500 & Up -
168250534 COVER
SN# 0G960499 & BelowCOVER
SN# 0G960499 & Below -
1722-825054 BREATHER PIPEBREATHER PIPE
-
1810-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1927-825032 GASKETGASKET
-
2017-825010 PIN, DowelPIN, Dowel
-
2110-893745025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2210-82503395 SCREW, (M9 x 95)SCREW, (M9 x 95)
-
2327-827610 GASKETGASKET
-
24826060 DIAPHRAGMDIAPHRAGM
-
25828528 BRACKET
Non HandleBRACKET
Non Handle -
26830294T1 BRACKET
HandleBRACKET
Handle -
2710-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
2822-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
298266241 CLAMPCLAMP
-
30859578A1 PLUGPLUG
-
3125-8M0052669 O-RINGO-RING
-
-27-832013A96 GASKET SETGASKET SET
-
-61-822775T97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-61-822775T98 POWERHEAD ASSEMBLY
BigfootPOWERHEAD ASSEMBLY
Bigfoot -
-825034A17 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
