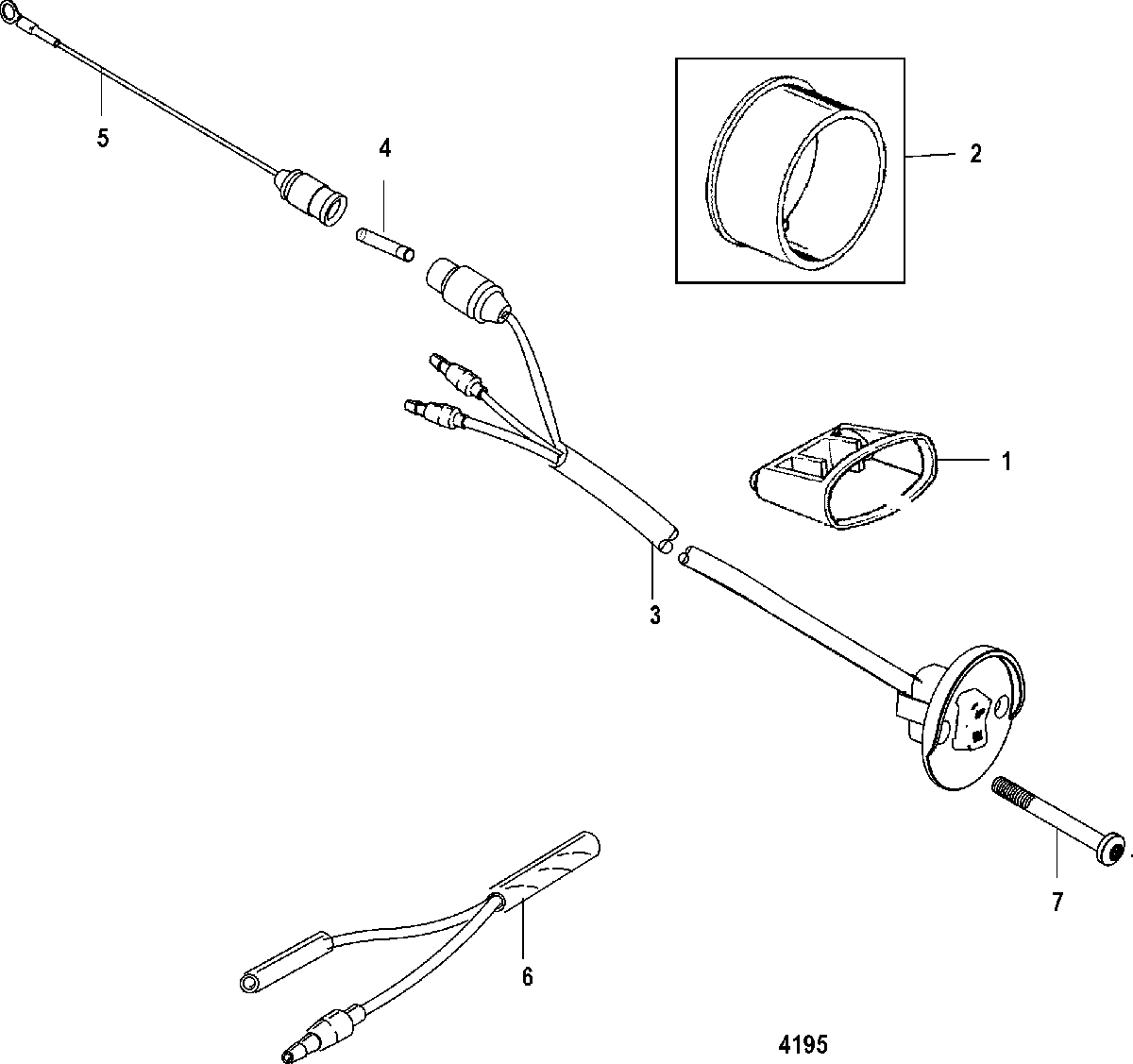

Trim Switch Kit для Mariner - 50 BIGFOOT (4-STROKE) 0G760300 THRU 0T178499
-
№АртикулНазвание
-
-87-18286A18 SWITCH KIT, Trim (10.00 Feet)SWITCH KIT, Trim (10.00 Feet)
-
118861 RETAINERRETAINER
-
2814820 ADAPTORADAPTOR
-
3NSS NOT SOLD SEPARATE, SwitchNOT SOLD SEPARATE, Switch
-
488-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
584-95084A2 CABLE ASSEMBLYCABLE ASSEMBLY
-
684-11149A2 CABLE ASSEMBLY, (6.00 Inches)CABLE ASSEMBLY, (6.00 Inches)
-
710-19209 SCREW, (#10-32 x 2.25)SCREW, (#10-32 x 2.25)
-
710-813523 SCREW, (#10-16 x 2.25)SCREW, (#10-16 x 2.25)
