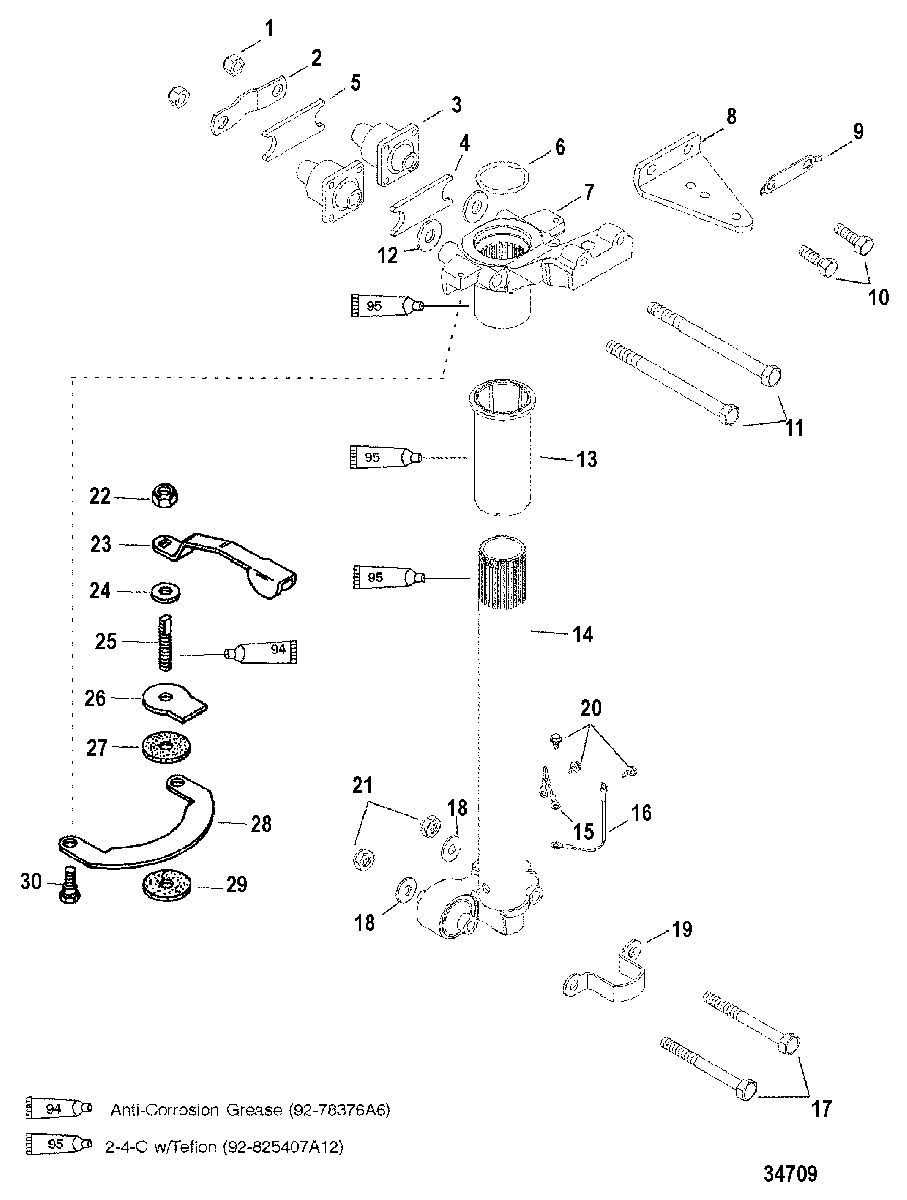

Steering Arm для Mariner - 50 BIGFOOT (4-STROKE) 0G760300 THRU 0T178499
-
№АртикулНазвание
-
111-896963 NUT, (M12)NUT, (M12)
-
2893773002 STRAPSTRAP
-
3893655T MOUNTMOUNT
-
4826658 BUMPERBUMPER
-
5826658 BUMPER
BigfootBUMPER
Bigfoot -
653-89531 RING, RetainingRING, Retaining
-
78M0118183 ARM, Steering
BlackARM, Steering
Black -
78M0118183 ARM, Steering
GrayARM, Steering
Gray -
8893696 BRACKET
Non HandleBRACKET
Non Handle -
914-8M0009820 TAB WASHER
Non HandleTAB WASHER
Non Handle -
1010-4000377 SCREW, (M10 x 30)
Non HandleSCREW, (M10 x 30)
Non Handle -
1110-898835001 BOLT, (M12 x 154)BOLT, (M12 x 154)
-
1212-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
BigfootWASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
Bigfoot -
1323-8279971 SPACERSPACER
-
14893590T01 SWIVEL TUBE ASSEMBLY
Non BigfootSWIVEL TUBE ASSEMBLY
Non Bigfoot -
14893590T04 SWIVEL TUBE
BigfootSWIVEL TUBE
Bigfoot -
1584-88238T01 CABLE ASSEMBLYCABLE ASSEMBLY
-
1688238A13 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1710-823567105 SCREW, (M10 x 105) Hex Flange - Stainless SteelSCREW, (M10 x 105) Hex Flange - Stainless Steel
-
1812-45176 WASHER, (.453 x .812 x .105) Stainless Steel
BigfootWASHER, (.453 x .812 x .105) Stainless Steel
Bigfoot -
19893703 BRACKETBRACKET
-
2010-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
2111-40140 NUT, (M10)NUT, (M10)
-
2211-8M0042636 NUT, (.375-24)
HandleNUT, (.375-24)
Handle -
23823792 LEVER
HandleLEVER
Handle -
2412-29330 WASHER
HandleWASHER
Handle -
25821961 ROD, Threaded
HandleROD, Threaded
Handle -
26821957 BRAKE PLATE
HandleBRAKE PLATE
Handle -
278165621 DISC
HandleDISC
Handle -
288M0007471 PLATE
HandlePLATE
Handle -
298165621 DISC
HandleDISC
Handle -
3010-768042 SHOULDER SCREW, Hex
HandleSHOULDER SCREW, Hex
Handle
