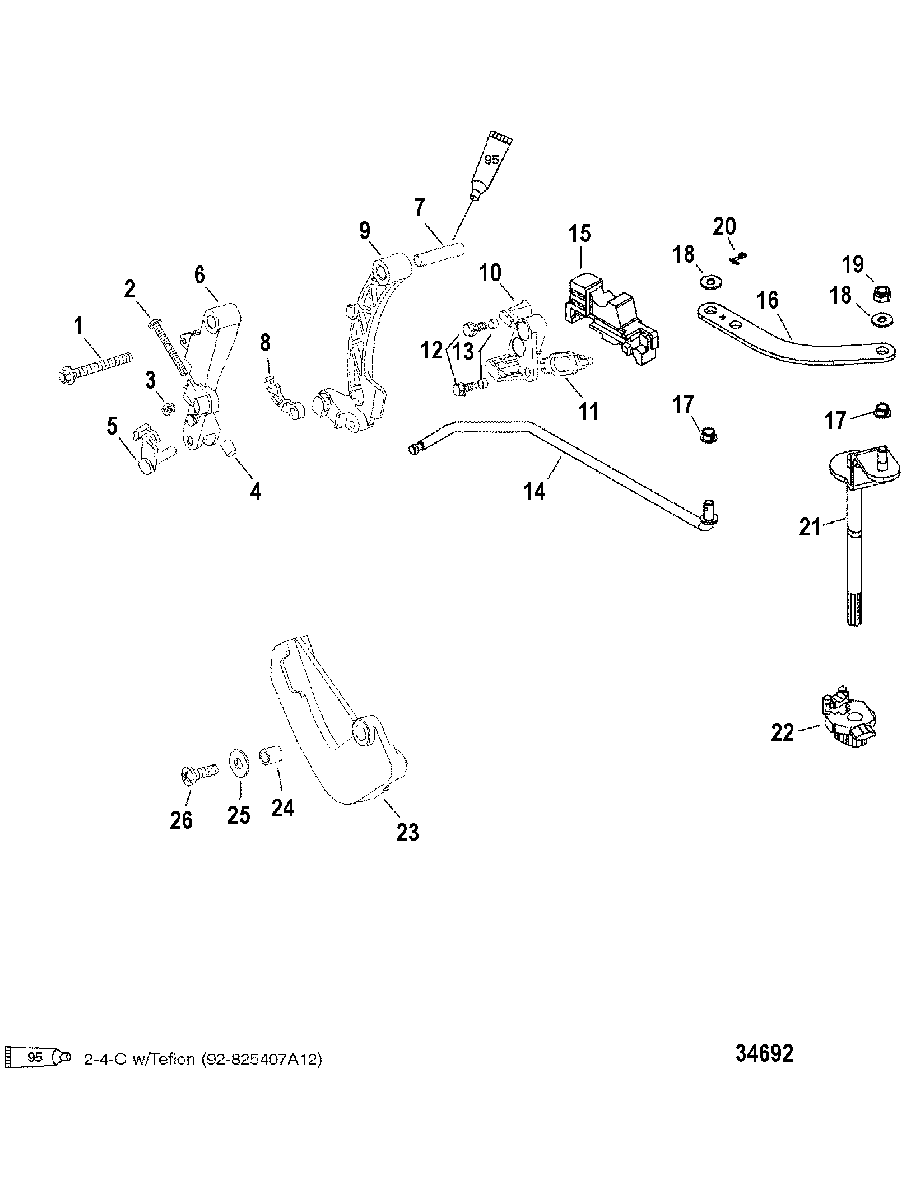

Linkage, Bigfoot для Mariner - 50 BIGFOOT (4-STROKE) 0G760300 THRU 0T178499
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
210-814776 SCREW, Adjusting (M6 x 55)SCREW, Adjusting (M6 x 55)
-
311-401196 NUT, (M6)NUT, (M6)
-
442942 CAPCAP
-
5826587 RETAINERRETAINER
-
6822682A4 LEVER, ThrottleLEVER, Throttle
-
723-825078 BUSHINGBUSHING
-
8822459 RETAINERRETAINER
-
98259571 LEVER, ShiftLEVER, Shift
-
10827706A4 BRACKETBRACKET
-
1198889 LATCHLATCH
-
1210-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1323-15885 SLEEVESLEEVE
-
14893777 SHIFT RODSHIFT ROD
-
15827706A4 GUIDE, Shift RodGUIDE, Shift Rod
-
16893769A01 SHIFT LINKSHIFT LINK
-
1723-48475 BUSHINGBUSHING
-
1812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1911-401386 NUT, (M6)NUT, (M6)
-
2018-210711 COTTER PINCOTTER PIN
-
21850166T2 LEVER ASSEMBLY, Shift Shaft
SN# 0G960500 & UpLEVER ASSEMBLY, Shift Shaft
SN# 0G960500 & Up -
21850166T2 LEVER ASSEMBLY, Shift Shaft
SN# 0G960499 & BelowLEVER ASSEMBLY, Shift Shaft
SN# 0G960499 & Below -
2223-850165 BUSHINGBUSHING
-
238262311 CAMCAM
-
2423-309772 SPACERSPACER
-
2512-4002314 WASHERWASHER
-
2610-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
