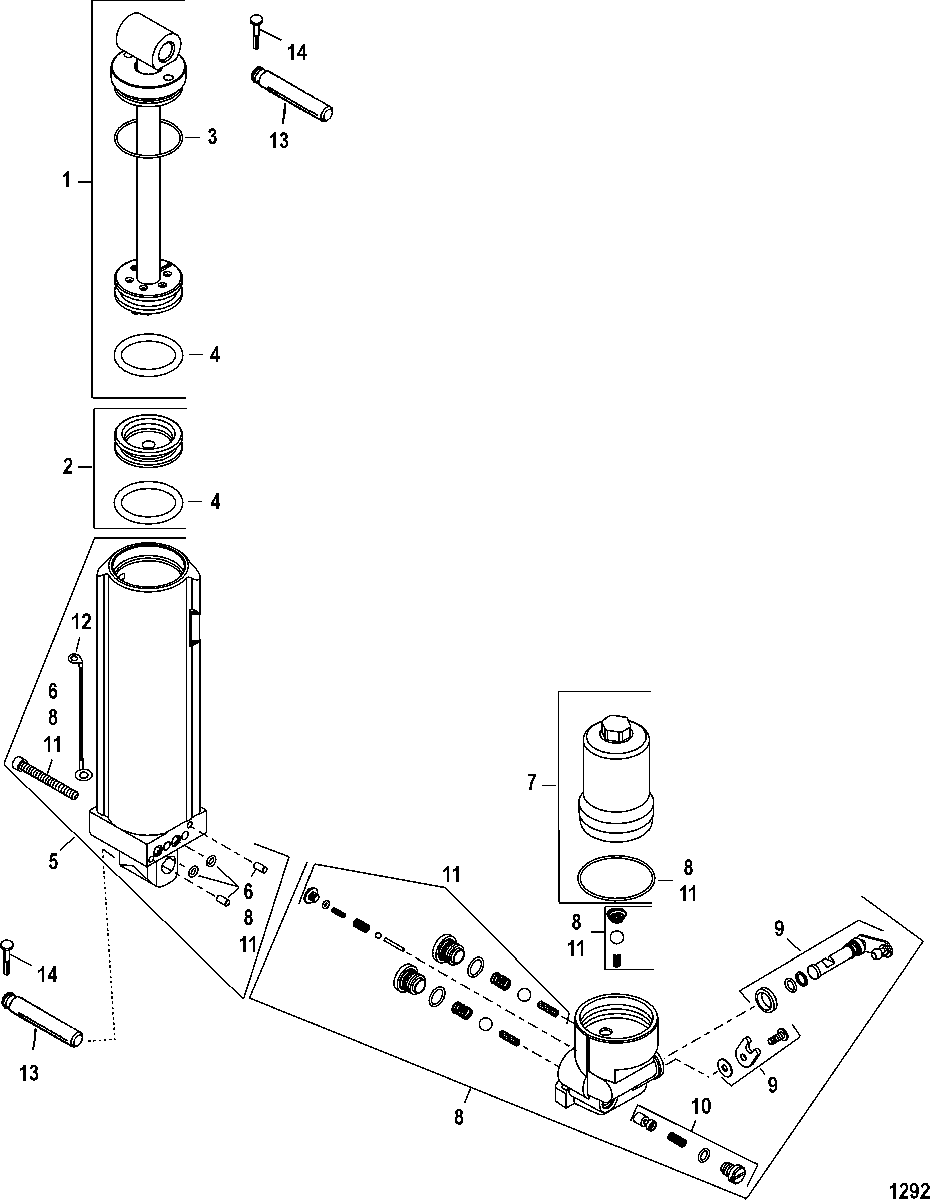

Manual Tilt Components для Mariner - 50 BIGFOOT (4-STROKE) 0G760300 THRU 0T178499
-
№АртикулНазвание
-
-8M0118570 MANUAL TRIM ASSEMBLY
SN# USA-0G835817/BEL-0P040654 & UpMANUAL TRIM ASSEMBLY
SN# USA-0G835817/BEL-0P040654 & Up -
-8M0118570 MANUAL TRIM ASSEMBLY
SN# USA-0G835816/BEL-0P040653 & BelowMANUAL TRIM ASSEMBLY
SN# USA-0G835816/BEL-0P040653 & Below -
18M0118572 SHOCK ROD ASSEMBLYSHOCK ROD ASSEMBLY
-
2893903A01 PISTON ASSEMBLY, Trim MemoryPISTON ASSEMBLY, Trim Memory
-
325-893917A01 O-RING KIT, CylinderO-RING KIT, Cylinder
-
4N.S.S. Not Sold Separate, O-RingNot Sold Separate, O-Ring
-
5893918A01 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
6893919A01 SCREW AND SEAL KITSCREW AND SEAL KIT
-
7893920A01 ACCUMULATOR ASSEMBLYACCUMULATOR ASSEMBLY
-
88M0118574 VALVE BODY ASSEMBLYVALVE BODY ASSEMBLY
-
9893923A01 CAM KITCAM KIT
-
10893924A01 VALVE KIT, VelocityVALVE KIT, Velocity
-
11893925A01 REPAIR KITREPAIR KIT
-
1288238A13 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
-25-893922A01 O-RING KITO-RING KIT
-
1317-19607 PINPIN
-
1417-821539 PIN, TrilobePIN, Trilobe
