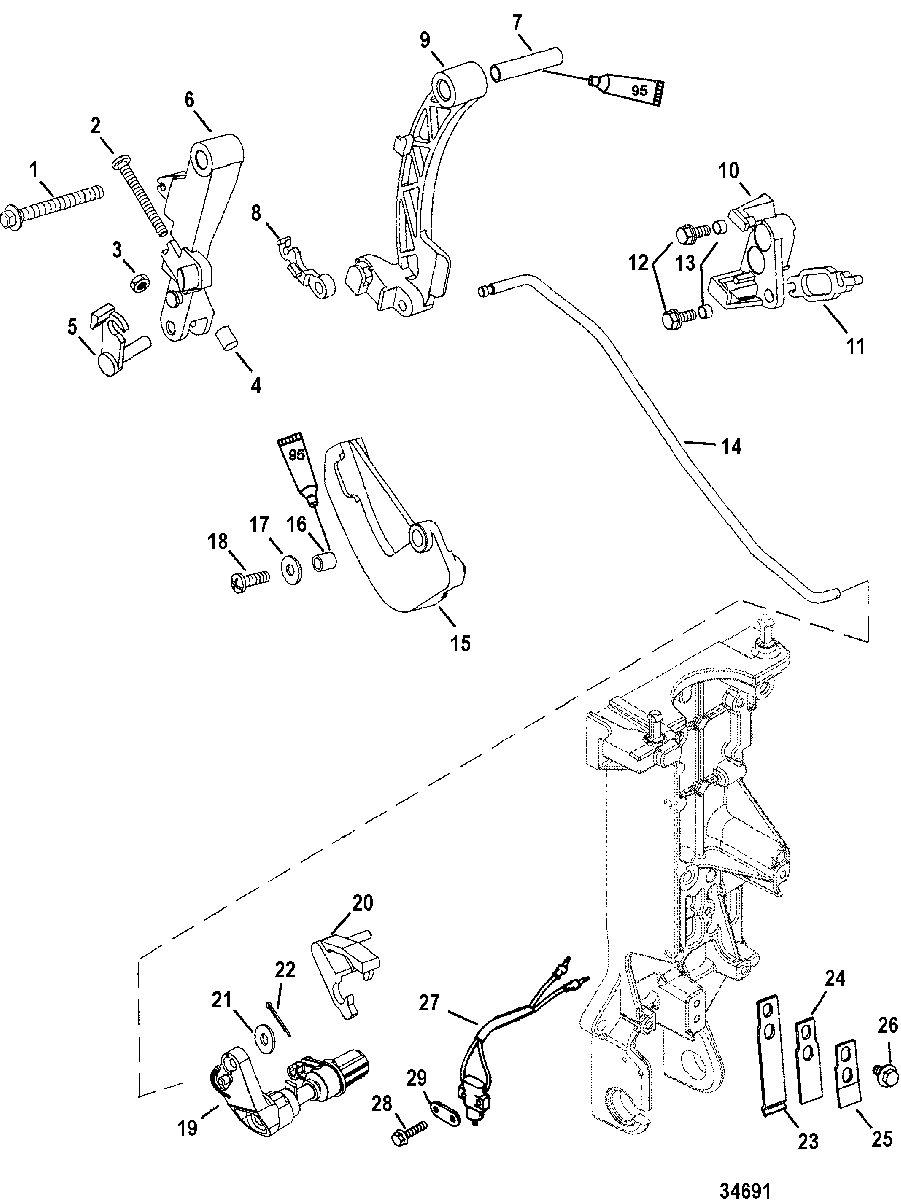

Linkage, Non-Bigfoot для Mariner - 50 BIGFOOT (4-STROKE) 0G760300 THRU 0T178499
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
210-814776 SCREW, Adjusting (M6 x 55)SCREW, Adjusting (M6 x 55)
-
311-401196 NUT, (M6)NUT, (M6)
-
442942 CAPCAP
-
5826587 RETAINERRETAINER
-
6822682A4 LEVER, ThrottleLEVER, Throttle
-
723-825078 BUSHINGBUSHING
-
8822459 RETAINER
Non-HandleRETAINER
Non-Handle -
98259571 LEVER, Shift
Non-HandleLEVER, Shift
Non-Handle -
10827706A4 BRACKET
Non-HandleBRACKET
Non-Handle -
1198889 LATCH
Non-HandleLATCH
Non-Handle -
1210-8248324 SCREW, (M6 x 16)
Non-HandleSCREW, (M6 x 16)
Non-Handle -
1323-15885 SLEEVE
Non-HandleSLEEVE
Non-Handle -
14882820 SHIFT ROD
Non-HandleSHIFT ROD
Non-Handle -
158262311 CAMCAM
-
158262312 CAM, Throttle
40 ItalianCAM, Throttle
40 Italian -
1623-309772 SPACERSPACER
-
1712-4002314 WASHERWASHER
-
1810-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
19826588A4 SHIFT SHAFT ASSEMBLY, HorizontalSHIFT SHAFT ASSEMBLY, Horizontal
-
208277071 RETAINERRETAINER
-
2112-4002316 WASHERWASHER
-
2218-210711 COTTER PINCOTTER PIN
-
2324-826077 SPRING, DetentSPRING, Detent
-
2424-824993 SPRING, BackingSPRING, Backing
-
25824994 SPRING, PlateSPRING, Plate
-
2610-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
2787-8M0052927 SWITCH
Handle ModelsSWITCH
Handle Models -
2810-88075020 SCREW, (M3.5 x 20) Stainless Steel
Handle ModelsSCREW, (M3.5 x 20) Stainless Steel
Handle Models -
29824923 PLATE
Handle ModelsPLATE
Handle Models
