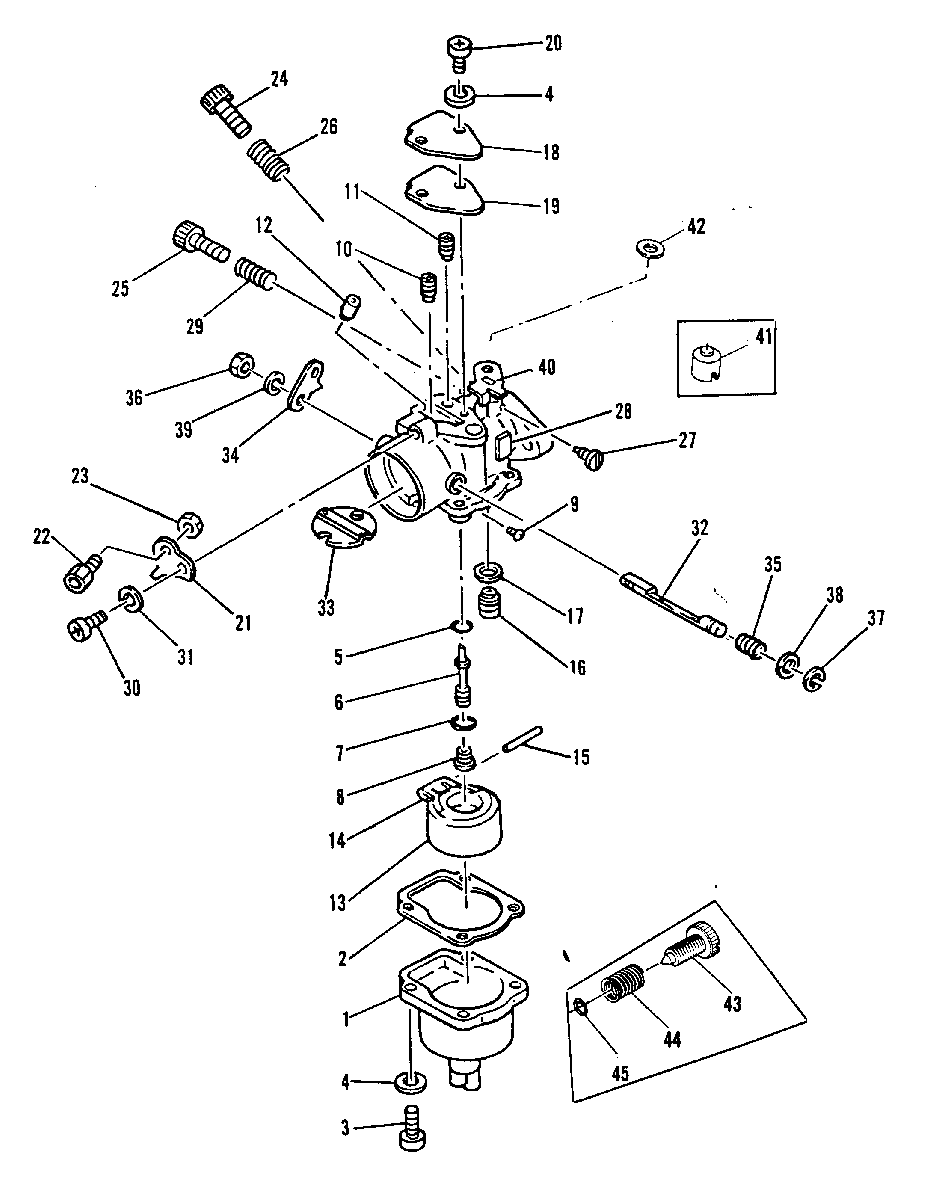

CARBURETOR для Mariner - 5A 661-30090 AND BELOW
-
№АртикулНазвание
-
-1383-6926M CARBURETOR
SERIAL 00032166-09999999CARBURETOR
SERIAL 00032166-09999999 -
191737M FLOAT BOWL
SERIAL 00032166-09999999FLOAT BOWL
SERIAL 00032166-09999999 -
-1383-6805M CARBURETOR
SERIAL 00000000-00032165CARBURETOR
SERIAL 00000000-00032165 -
181181M FLOAT BOWL
SERIAL 00000000-00032165FLOAT BOWL
SERIAL 00000000-00032165 -
227-80972M GASKETGASKET
-
310-11796M SCREWSCREW
-
413-82206M LOCKWASHERLOCKWASHER
-
527-80960M GAKSETGAKSET
-
680968M MAIN NOZZLEMAIN NOZZLE
-
725-80961M GASKETGASKET
-
880579M MAIN JET (#80)MAIN JET (#80)
-
882625M MAIN JET (#82)MAIN JET (#82)
-
884687M MAIN JET (#56)MAIN JET (#56)
-
9NLA SCREWSCREW
-
10NLA AIR JETAIR JET
-
1182600M LOW SPEED JET (#46)LOW SPEED JET (#46)
-
1194561M LOW SPEED JET (#48)LOW SPEED JET (#48)
-
1280967M MAIN AIR JETMAIN AIR JET
-
1380450M FLOATFLOAT
-
1480202M FLOAT ARMFLOAT ARM
-
1517-80451M FLOAT PINFLOAT PIN
-
1680204M VALVE SEATVALVE SEAT
-
1727-80205M GASKETGASKET
-
18NLA COVERCOVER
-
19NLA GASKETGASKET
-
2010-82500M SCREWSCREW
-
2182549M PLATEPLATE
-
2210-80958M BOLTBOLT
-
2311-80431M NUTNUT
-
2410-80573M AIR ADJUSTING SCREWAIR ADJUSTING SCREW
-
2510-80738M SCREWSCREW
-
2624-80575M SPRING
SERIAL 00018546-09999999SPRING
SERIAL 00018546-09999999 -
26NLA SPRING
SERIAL 00000000-00018545SPRING
SERIAL 00000000-00018545 -
2710-80191M SCREWSCREW
-
28NLA PLATEPLATE
-
2924-80966M SPRINGSPRING
-
3010-82500M SCREW
SERIAL 00030091-09999999SCREW
SERIAL 00030091-09999999 -
3113-82206M LOCKWASHER
SERIAL 00030091-09999999LOCKWASHER
SERIAL 00030091-09999999 -
3010-82534M SCREW
SERIAL 00000000-00030090SCREW
SERIAL 00000000-00030090 -
32NLA CHOKE SHAFTCHOKE SHAFT
-
33NLA CHOKE VALVECHOKE VALVE
-
34NLA CHOKE LEVERCHOKE LEVER
-
35NLA SPRINGSPRING
-
3611-82949M NUTNUT
-
37NLA SNAP RINGSNAP RING
-
3812-84401M WASHERWASHER
-
3913-82212M LOCKWASHERLOCKWASHER
-
40NLA THROTTLE SHAFT
SERIAL 00000000-00030090THROTTLE SHAFT
SERIAL 00000000-00030090 -
41NLA CONNECTOR
SERIAL 00000000-00030090CONNECTOR
SERIAL 00000000-00030090 -
4212-82952M WASHER
SERIAL 00000000-00030090WASHER
SERIAL 00000000-00030090 -
43NLA DRAIN VALVE
SERIAL 00000000-00018545DRAIN VALVE
SERIAL 00000000-00018545 -
4424-82641M SPRING
SERIAL 00000000-00018545SPRING
SERIAL 00000000-00018545 -
4310-80349M DRAIN VALVE
SERIAL 00018546-00032165DRAIN VALVE
SERIAL 00018546-00032165 -
4424-80331M SPRING
SERIAL 00018546-00032165SPRING
SERIAL 00018546-00032165 -
4525-80350M O-RING
SERIAL 00018546-00032165O-RING
SERIAL 00018546-00032165
