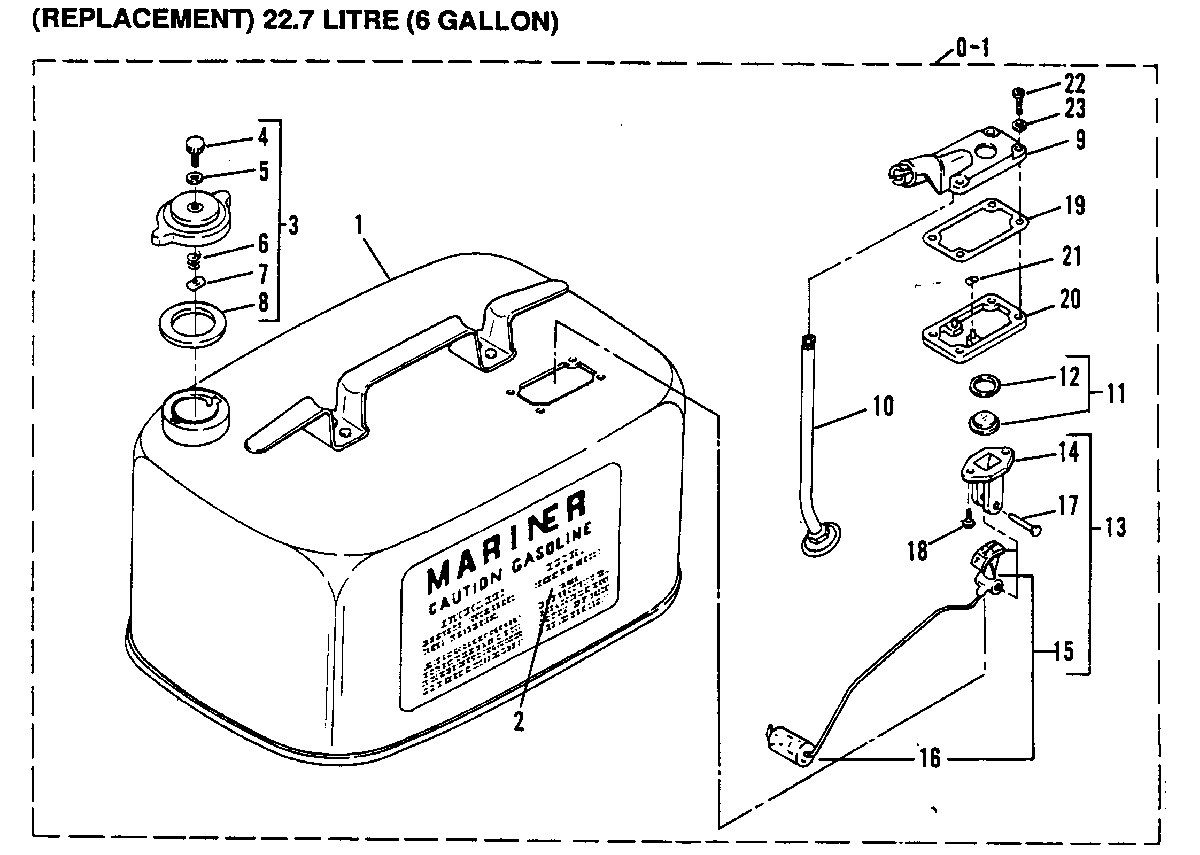

FUEL TANK (REPLACEMENT) для Mariner - 5A 661-30090 AND BELOW
-
№АртикулНазвание
-
0-11259-812410A1 FUEL TANKFUEL TANK
-
237-13921 DECALDECAL
-
336-18962M CAP ASSEMBLYCAP ASSEMBLY
-
410-25575 SCREWSCREW
-
512-49221 WASHERWASHER
-
624-22227 SPRINGSPRING
-
711-28587 NUTNUT
-
827-41065 GASKETGASKET
-
-64841A1 ADAPTOR ASSEMBLYADAPTOR ASSEMBLY
-
917792A1 BODY ASSEMBLYBODY ASSEMBLY
-
1032-75239 HOSEHOSE
-
1198542A1 WINDOW ASSEMBLYWINDOW ASSEMBLY
-
12NLA GASKETGASKET
-
1328897A2 FUEL GAUGEFUEL GAUGE
-
1420430 RETAINERRETAINER
-
1528897A1 INDICATOR/FLOAT ASSEMBLYINDICATOR/FLOAT ASSEMBLY
-
1699274 FLOATFLOAT
-
1717-20426 RIVETRIVET
-
1810-62568 SCREWSCREW
-
1927-28862 GASKETGASKET
-
2028860 FRAMEFRAME
-
2111-28903 NUTNUT
-
2210-20411 SCREWSCREW
-
2312-29070 WASHERWASHER
