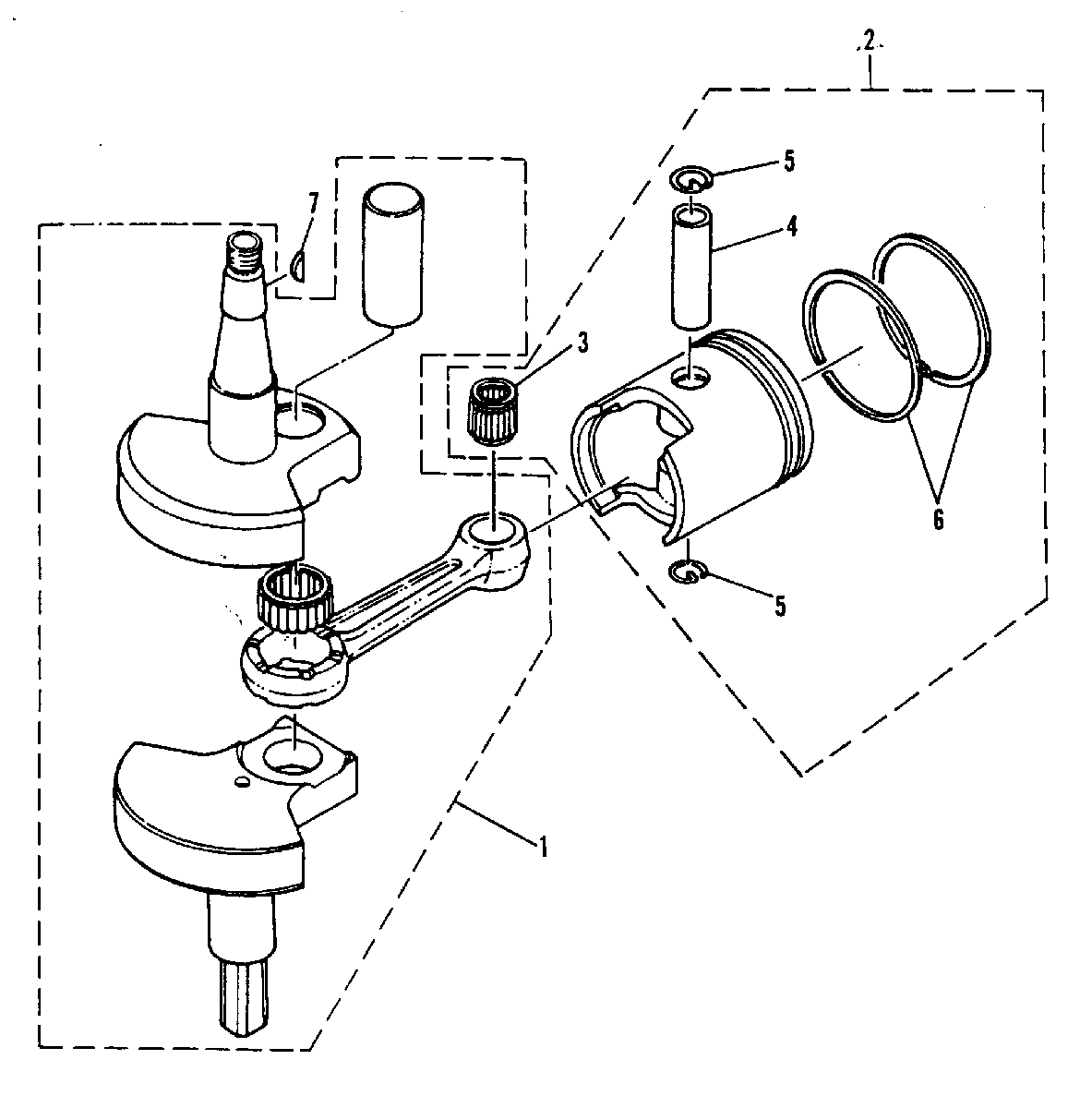

CRANKSHAFT AND PISTON для Mariner - 5A 661-30090 AND BELOW
-
№АртикулНазвание
-
1463-7160M CRANKSHAFT
SERIAL 00012506-09999999CRANKSHAFT
SERIAL 00012506-09999999 -
1463-6701M CRANKSHAFT
SERIAL 00000000-00012505CRANKSHAFT
SERIAL 00000000-00012505 -
2761-8230M PISTON (STANDARD)PISTON (STANDARD)
-
2NLA PISTON (50.25 MM O.S.)PISTON (50.25 MM O.S.)
-
2761-8232M PISTON (50.50 MM O.S.)PISTON (50.50 MM O.S.)
-
331-82835M BEARINGBEARING
-
441-80005M PISTON PINPISTON PIN
-
553-82342M CLIPCLIP
-
639-80305M PISTON RING SET (STANDARD)PISTON RING SET (STANDARD)
-
639-80306M PISTON RING SET (50.25 MM O.S.)PISTON RING SET (50.25 MM O.S.)
-
639-80307M PISTON RING SET (50.50 MM O.S.)PISTON RING SET (50.50 MM O.S.)
-
728-8M0084803 KEY ( AND UP)
SERIAL 00012506-09999999KEY ( AND UP)
SERIAL 00012506-09999999 -
728-81910M KEY ( AND BELOW)
SERIAL 00000000-00012505KEY ( AND BELOW)
SERIAL 00000000-00012505
