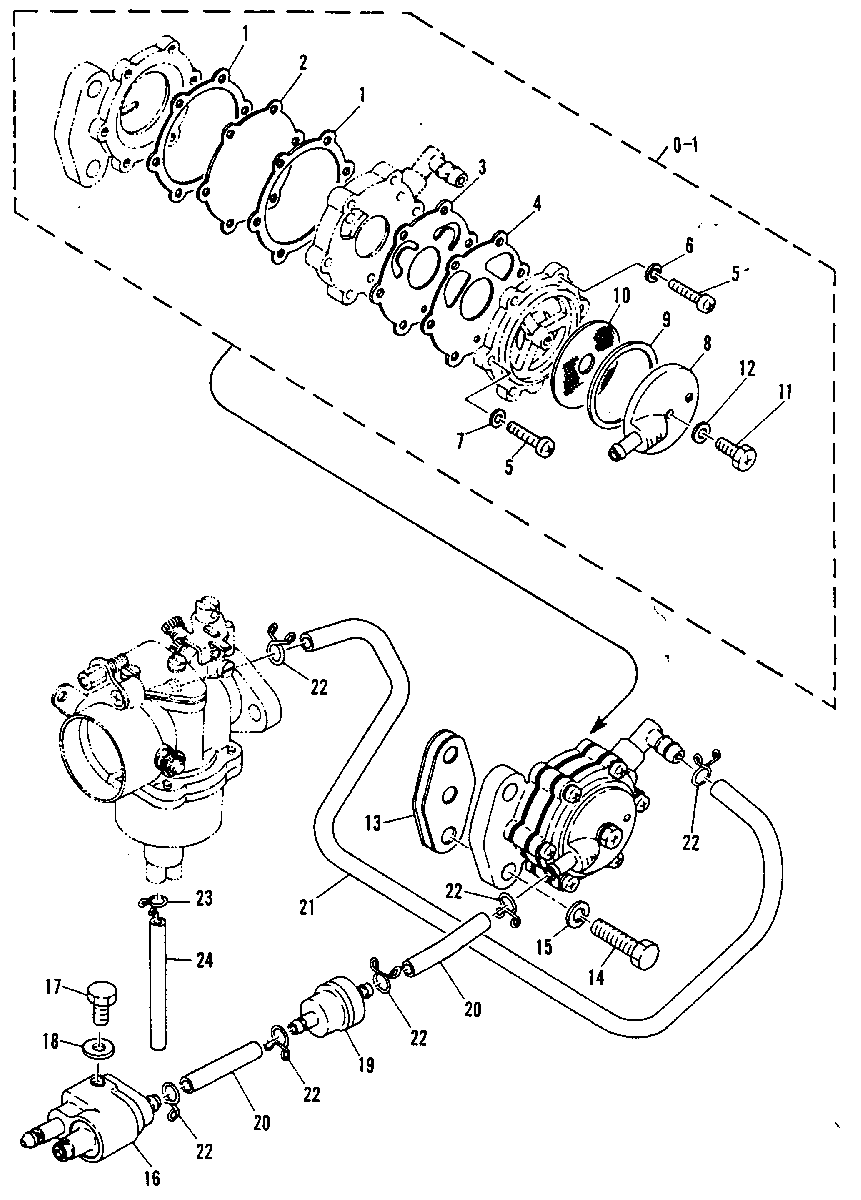

FUEL PUMP AND LINE для Mariner - 5A 661-30090 AND BELOW
-
№АртикулНазвание
-
0-181189M FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
127-81686M GASKETGASKET
-
280217M DIAPHRAGMDIAPHRAGM
-
327-81684M CHECK VALVECHECK VALVE
-
427-81687M GASKETGASKET
-
510-82967M SCREWSCREW
-
613-82206M LOCKWASHERLOCKWASHER
-
727-13999M GASKETGASKET
-
8NLA CAPCAP
-
927-81688M GASKETGASKET
-
1035-81692M FUEL FILTERFUEL FILTER
-
1110-81691M SCREWSCREW
-
1227-81689M GASKETGASKET
-
1327-80104M SPACERSPACER
-
1410-82405M BOLTBOLT
-
1513-82212M LOCKWASHERLOCKWASHER
-
168M0121326 CONNECTOR HOUSINGCONNECTOR HOUSING
-
1710-82405M BOLTBOLT
-
1812-82214M WASHERWASHER
-
1935-80365M STRAINERSTRAINER
-
2032-82012M FUEL LINEFUEL LINE
-
2132-82012M FUEL LINEFUEL LINE
-
2254-82047M CLAMPCLAMP
-
2332-81993M HOSE
SERIAL 00000000-00032165HOSE
SERIAL 00000000-00032165 -
2454-82045M CLIP
SERIAL 00000000-00032165CLIP
SERIAL 00000000-00032165
