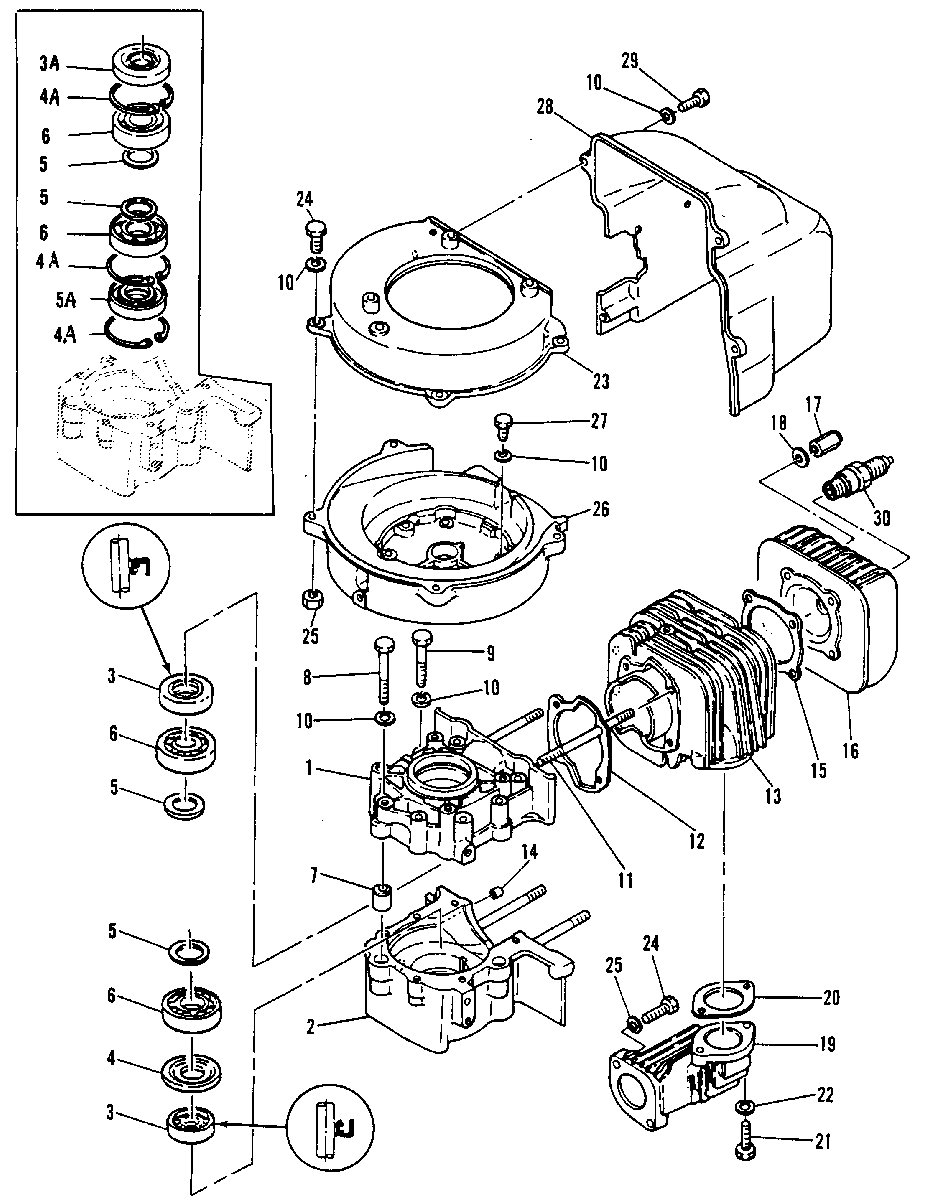

CYLINDER AND CYLINDER HEAD для Mariner - 5A 661-30090 AND BELOW
-
№АртикулНазвание
-
1968-6806M UPPER CRANKCASEUPPER CRANKCASE
-
2968-6807M LOWER CRANKCASE
SERIAL 00016636-09999999LOWER CRANKCASE
SERIAL 00016636-09999999 -
2968-6879M LOWER CRANKCASE
SERIAL 00000000-00016635LOWER CRANKCASE
SERIAL 00000000-00016635 -
326-18843M OIL SEAL
SERIAL 00030291-09999999OIL SEAL
SERIAL 00030291-09999999 -
482941M PROTECTOR
SERIAL 00030291-09999999PROTECTOR
SERIAL 00030291-09999999 -
3A26-82240M OIL SEAL
SERIAL 00000000-00030290OIL SEAL
SERIAL 00000000-00030290 -
4A53-82326M CIRCLIP
SERIAL 00000000-00030290CIRCLIP
SERIAL 00000000-00030290 -
5A26-82231M OIL SEAL
SERIAL 00000000-00030290OIL SEAL
SERIAL 00000000-00030290 -
515-80015M SHIM (.3MM)SHIM (.3MM)
-
515-80016M SHIM (.4MM)SHIM (.4MM)
-
515-80017M SHIM (.5MM)SHIM (.5MM)
-
515-80018M SHIM (.6MM)SHIM (.6MM)
-
515-80019M SHIM (.7MM)SHIM (.7MM)
-
515-80020M SHIM(.8MM)SHIM(.8MM)
-
630-82300M BEARINGBEARING
-
717-14229M DOWEL PINDOWEL PIN
-
810-8527765 BOLTBOLT
-
910-84657M BOLTBOLT
-
1013-82212M LOCKWASHERLOCKWASHER
-
1116-81725M STUDSTUD
-
1227-80066M GASKETGASKET
-
13870-6804M CYLINDERCYLINDER
-
14NLA BUSHINGBUSHING
-
1527-80035M GASKETGASKET
-
16968-6700M CYLINDER HEADCYLINDER HEAD
-
1711-81764M NUTNUT
-
1812-82214M WASHERWASHER
-
1980308M EXHAUST MANIFOLDEXHAUST MANIFOLD
-
2027-80042M GASKETGASKET
-
2110-82405M BOLTBOLT
-
2212-81792M WASHERWASHER
-
23NLA CASECASE
-
2410-82405M BOLT
SERIAL 00018546-09999999BOLT
SERIAL 00018546-09999999 -
2410-82423M BOLT
SERIAL 00000000-00018545BOLT
SERIAL 00000000-00018545 -
2511-82389M NUTNUT
-
2681176M HOUSING
SERIAL 00018546-09999999HOUSING
SERIAL 00018546-09999999 -
26NLA HOUSING
SERIAL 00000000-00L41375HOUSING
SERIAL 00000000-00L41375 -
2710-84058M BOLTBOLT
-
2881177M AIR SHROUDAIR SHROUD
-
2910-82423M BOLTBOLT
-
3033-8M0114739 SPARK PLUG (NGK#B-7HS)SPARK PLUG (NGK#B-7HS)
