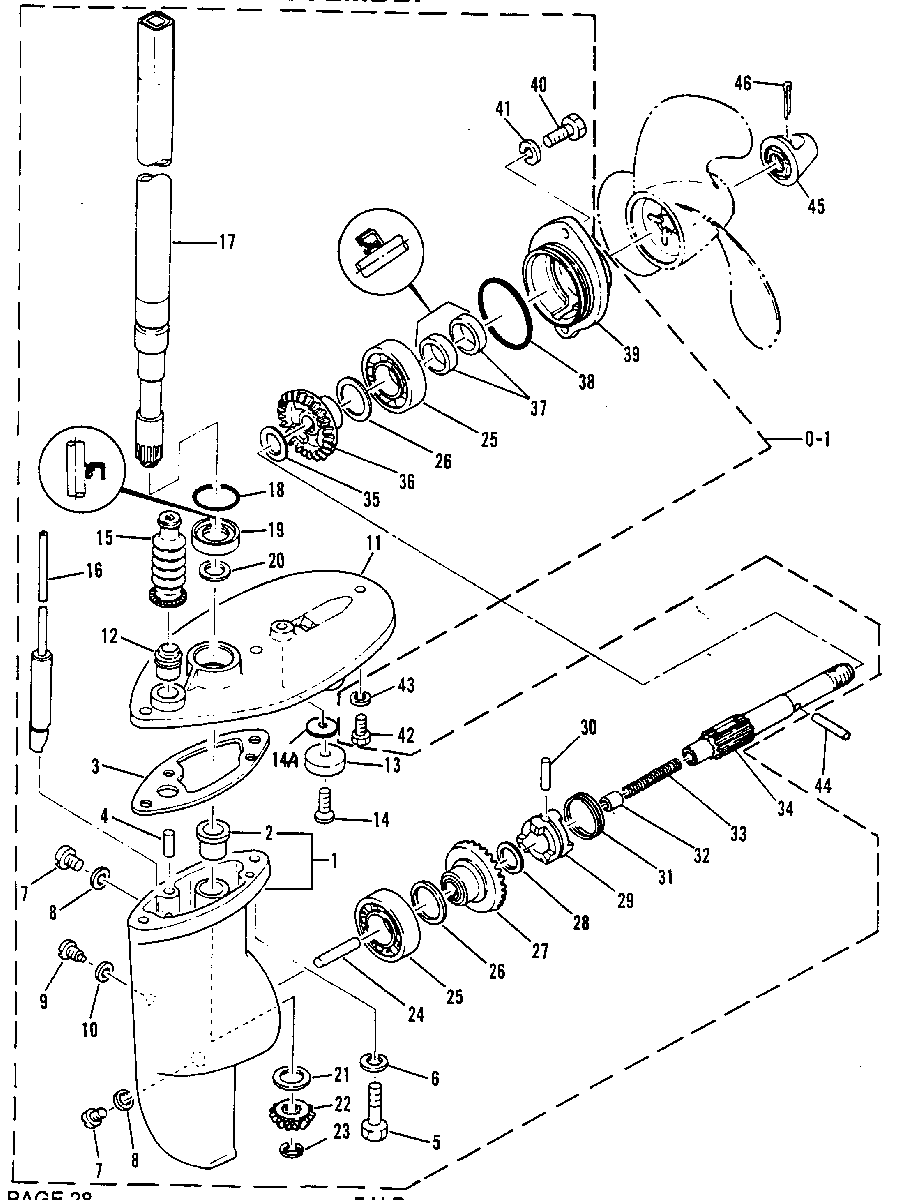

GEARHOUSING ASSEMBLY(CONT) для Mariner - 5A 661-30090 AND BELOW
-
№АртикулНазвание
-
0-1NLA GEARHOUSING ASSEMBLY (SHORT)GEARHOUSING ASSEMBLY (SHORT)
-
0-11651-6905M USING ASSEMBLY (LONG)USING ASSEMBLY (LONG)
-
11651-6774M GEARHOUSINGGEARHOUSING
-
2NLA BUSHINGBUSHING
-
327-80299M GASKETGASKET
-
417-82365M DOWEL PINDOWEL PIN
-
510-95416M BOLTBOLT
-
613-82215M LOCKWASHERLOCKWASHER
-
722-81924M DRAIN PLUGDRAIN PLUG
-
827-81987 GASKETGASKET
-
910-81752M DETENT SCREWDETENT SCREW
-
1027-95610 GASKETGASKET
-
1180998M PLATEPLATE
-
1223-80530M BUSHINGBUSHING
-
1343107M ANODEANODE
-
1410-84367M SCREW
SERIAL 00010247-09999999SCREW
SERIAL 00010247-09999999 -
1410-82791M SCREW
SERIAL 00000000-00010246SCREW
SERIAL 00000000-00010246 -
14A82953M SEAT
SERIAL 00000000-00010246SEAT
SERIAL 00000000-00010246 -
1580529M BOOTBOOT
-
1680991M LOWER SHIFT SHAFTLOWER SHIFT SHAFT
-
1745-81002M DRIVESHAFT (SHORT)DRIVESHAFT (SHORT)
-
1745-81003M DRIVESHAFT (LONG)DRIVESHAFT (LONG)
-
1825-82271M O-RINGO-RING
-
1926-82238M OIL SEALOIL SEAL
-
2012-81809M THRUST WASHERTHRUST WASHER
-
2112-80538M THRUST WASHER (.8MM)THRUST WASHER (.8MM)
-
2112-80539M THRUST WASHER (1.0MM)THRUST WASHER (1.0MM)
-
2112-80540M THRUST WASHER (1.2MM)THRUST WASHER (1.2MM)
-
2112-80541M THRUST WASHER (1.4MM)THRUST WASHER (1.4MM)
-
2243-81004M PINION GEARPINION GEAR
-
2353-82332M SNAP RINGSNAP RING
-
2481014M PLUNGERPLUNGER
-
2530-82291T BEARINGBEARING
-
2615-81006M SHIM (.4MM)SHIM (.4MM)
-
2615-81007M SHIM (.5MM)SHIM (.5MM)
-
2615-81008M SHIM (.6MM)SHIM (.6MM)
-
2615-81009M SHIM (.7MM)SHIM (.7MM)
-
2743-81005M FORWARD GEARFORWARD GEAR
-
2812-81813M THRUST WASHERTHRUST WASHER
