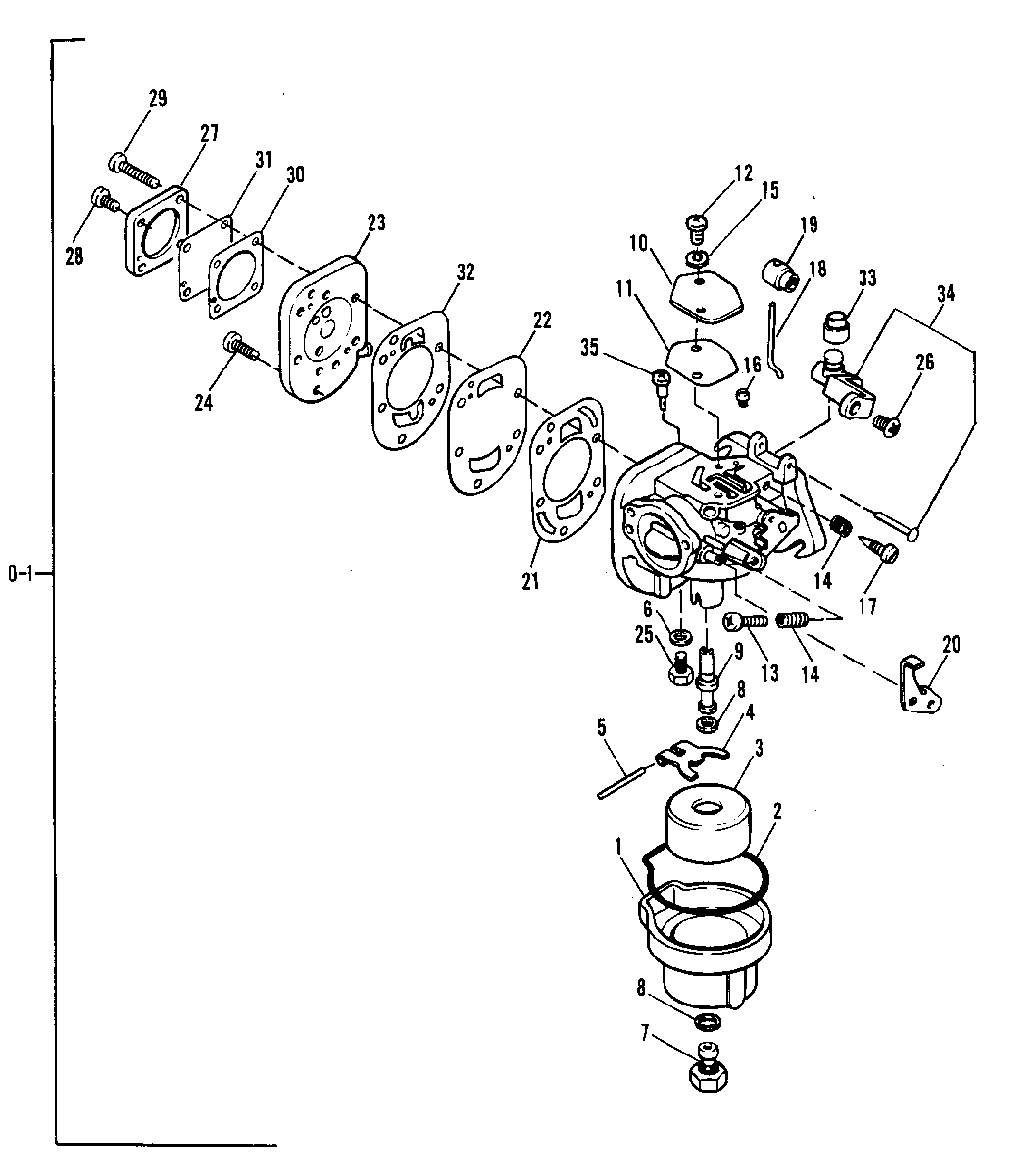

CARBURETOR для Mariner - 8B 677-300101 AND UP
-
№АртикулНазвание
-
0-11383-6972M CARBURETOR ASS'YCARBURETOR ASS'Y
-
184252M BODY, FLOAT CHAMBERBODY, FLOAT CHAMBER
-
227-43115M GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
380450M FLOATFLOAT
-
480202M ARMARM
-
517-80451M PIN, FLOATPIN, FLOAT
-
612-80261M WASHER, VALVE SEATWASHER, VALVE SEAT
-
710-83289M JET, MAIN (#80)JET, MAIN (#80)
-
827-80267 GASKETGASKET
-
983288M NOZZLE, MAINNOZZLE, MAIN
-
1083294M PLATEPLATE
-
1127-83295M GASKETGASKET
-
1210-82500M SCREWSCREW
-
1310-83509M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
1424-814460M SPRINGSPRING
-
1513-82206M WASHER, LOCKWASHER, LOCK
-
1682600M JET, PILOT (#46)JET, PILOT (#46)
-
1710-80573M SCREW, IDLE MIXTURESCREW, IDLE MIXTURE
-
1883299M RODROD
-
1983300M THROTTLE, LEVER ENDTHROTTLE, LEVER END
-
2083302M LEVER CHOKE ASS'YLEVER CHOKE ASS'Y
-
2127-83298M GASKET, PUMPGASKET, PUMP
-
2283297M DIAPHRAGM, PUMPDIAPHRAGM, PUMP
-
2383296M COVER, PUMPCOVER, PUMP
-
2410-82606M SCREWSCREW
-
2580447M VALVE SEAT ASS'YVALVE SEAT ASS'Y
-
2610-80091M SCREWSCREW
-
2782638M COVER, PUMPCOVER, PUMP
-
2810-80954M SCREWSCREW
-
2910-82661M SCREWSCREW
-
3027-83627M GASKET, COVERGASKET, COVER
-
3183614M DIAPHRAGM, PUMPDIAPHRAGM, PUMP
-
3282671M DIAPHRAGM, PUMPDIAPHRAGM, PUMP
-
3323-80227M COLLAR, GUIDE PINCOLLAR, GUIDE PIN
-
3481148M THROTTLE ARM ASS'YTHROTTLE ARM ASS'Y
-
3510-80434M SCREWSCREW
