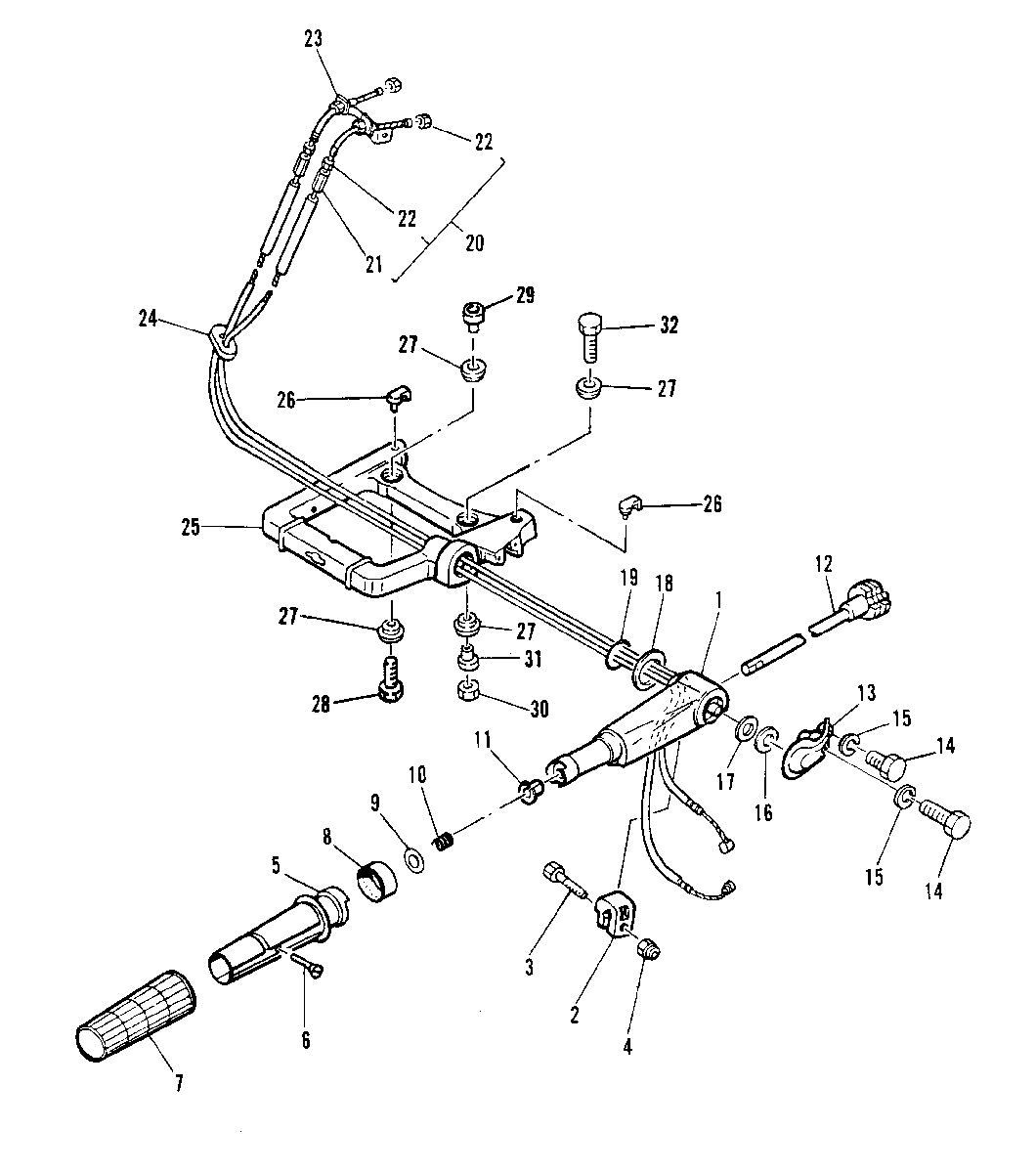

STEERING HANDLE для Mariner - 8B 677-300101 AND UP
-
№АртикулНазвание
-
183093M HANDLE, STEERINGHANDLE, STEERING
-
282895M PIECE, FRICTIONPIECE, FRICTION
-
310-84058M BOLTBOLT
-
411-83056M NUTNUT
-
580504M GRIP, STEERING HANDLEGRIP, STEERING HANDLE
-
610-811916M SCREWSCREW
-
780509M RUBBER, HANDLERUBBER, HANDLE
-
898971M INDICATOR, THROTTLE
SERIAL 00039056-09999999INDICATOR, THROTTLE
SERIAL 00039056-09999999 -
898971M INDICATOR, THROTTLE
SERIAL 00000000-00039055INDICATOR, THROTTLE
SERIAL 00000000-00039055 -
912-82220M WASHERWASHER
-
1024-82095M SPRINGSPRING
-
1123-81945M BUSHINGBUSHING
-
1281280M LEVER, THROTTLELEVER, THROTTLE
-
1380503M CAP, STEERING ARM PIVOTCAP, STEERING ARM PIVOT
-
1410-11828M SCREWSCREW
-
1513-82212M WASHER, LOCKWASHER, LOCK
-
1623-80506M SPACER (0.5MM)SPACER (0.5MM)
-
1623-898103217 SPACER (0.6MM)SPACER (0.6MM)
-
1623-80508M SPACER (0.8MM)SPACER (0.8MM)
-
1723-82118M SPACERSPACER
-
1823-82121M SPACERSPACER
-
1925-82272M O-RINGO-RING
-
2095405M THROTTLE CABLE ASS'YTHROTTLE CABLE ASS'Y
-
2111-81778M NUT, ADJUSTINGNUT, ADJUSTING
-
2211-81761M NUTNUT
-
2381037M STAY, THROTTLE WIRESTAY, THROTTLE WIRE
-
2425-81373M GROMMETGROMMET
-
2581054M BRACKET, STEERINGBRACKET, STEERING
-
2680510M SPACER, FRICTIONSPACER, FRICTION
-
2725-80515M GROMMETGROMMET
-
2810-82442M BOLT
SERIAL 00033091-09999999BOLT
SERIAL 00033091-09999999 -
2982956M BUSHING
SERIAL 00033091-09999999BUSHING
SERIAL 00033091-09999999 -
3011-82382M NUT
SERIAL 00000000-00033090NUT
SERIAL 00000000-00033090 -
3182956M BUSHING
SERIAL 00000000-00033090BUSHING
SERIAL 00000000-00033090 -
3210-82442M BOLT
SERIAL 00000000-00033090BOLT
SERIAL 00000000-00033090
