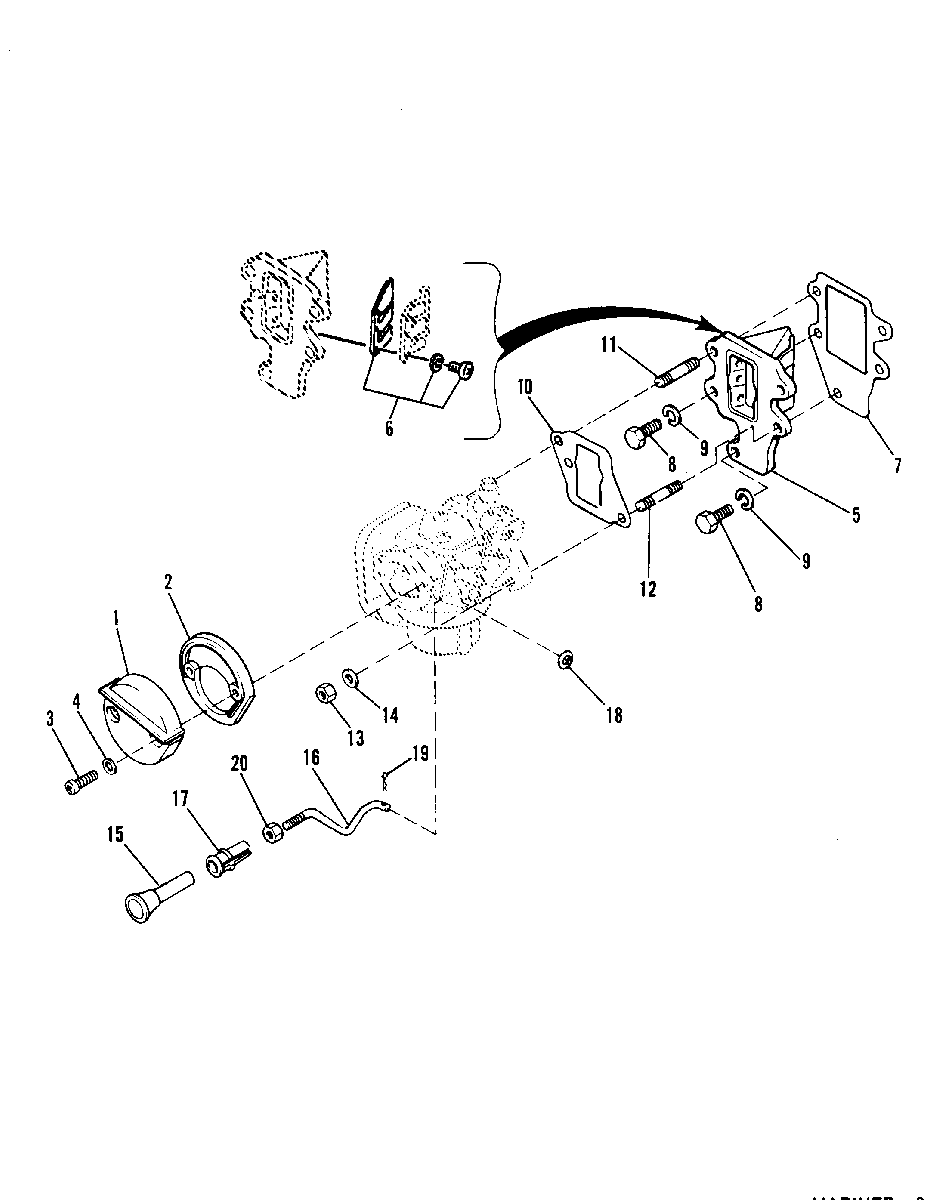

INTAKE MANIFOLD для Mariner - 8B 677-300101 AND UP
-
№АртикулНазвание
-
182864M COVER, AIR INTAKE (OUTER)COVER, AIR INTAKE (OUTER)
-
235-80154M COVER, AIR INTAKE (INNER)COVER, AIR INTAKE (INNER)
-
310-84438M SCREWSCREW
-
412-82211M WASHERWASHER
-
534-83243M REED VALVE ASS'YREED VALVE ASS'Y
-
634-84662M REED SET (REED STOPS NOT INCLUDED)REED SET (REED STOPS NOT INCLUDED)
-
727-83244M GASKET, REED VALVEGASKET, REED VALVE
-
810-82423M BOLTBOLT
-
913-82212M WASHER, LOCKWASHER, LOCK
-
1027-83245M GASKET, CARBURETORGASKET, CARBURETOR
-
1116-80232M STUDSTUD
-
1216-84249M STUDSTUD
-
1311-82390M NUTNUT
-
1412-82214M WASHERWASHER
-
1583287M KNOB, CHOKEKNOB, CHOKE
-
1683265M ROD, CHOKE LINKROD, CHOKE LINK
-
1725-80231M GROMMETGROMMET
-
1812-82847M WASHERWASHER
-
1918-82050M CLIPCLIP
-
2011-80245M NUTNUT
