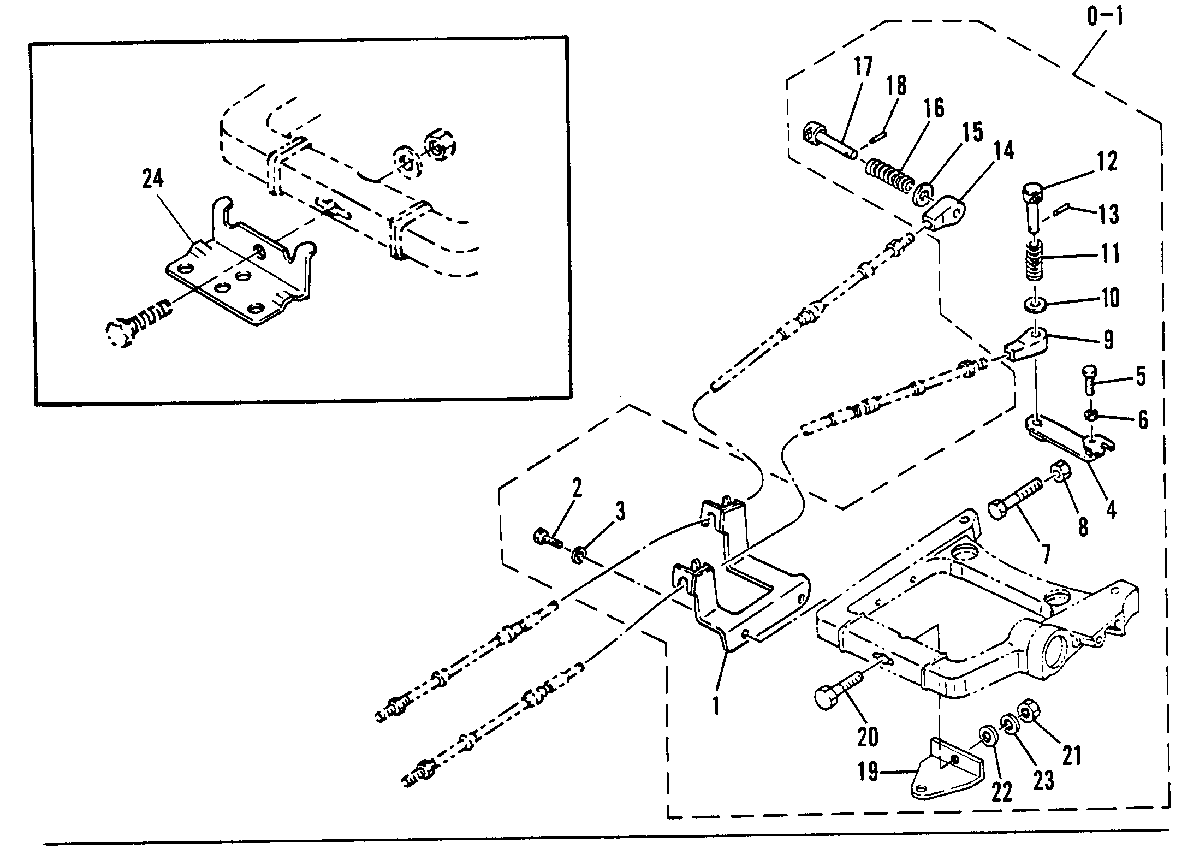

REMOTE CONTROL ATTACHING KIT - OPTIONAL для Mariner - 8B 677-300101 AND UP
-
№АртикулНазвание
-
0-143986A1 REMOTE CONTROL ATTACHING KITREMOTE CONTROL ATTACHING KIT
-
184224M BRACKET, CABLEBRACKET, CABLE
-
210-82423M BOLTBOLT
-
312-82214M WASHERWASHER
-
484225M LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
510-82447M BOLTBOLT
-
612-82211M WASHERWASHER
-
710-84657M BOLTBOLT
-
811-82389M NUTNUT
-
984227M CABLE ENDCABLE END
-
1012-82217M WASHERWASHER
-
1124-83725M SPRINGSPRING
-
1217-814499M CABLE ANCHOR PINCABLE ANCHOR PIN
-
1317-82146M PIN, ROLLPIN, ROLL
-
1483724M CABLE ENDCABLE END
-
1512-82217M WASHERWASHER
-
1624-83721M SPRINGSPRING
-
1717-814500M CABLE ANCHOR PINCABLE ANCHOR PIN
-
1817-82146M PIN, ROLLPIN, ROLL
-
1911670T BRACKET, STEERING ATTACHINGBRACKET, STEERING ATTACHING
-
2010-91636M BOLTBOLT
-
2111-81785M LOCKNUT
SERIAL 00039056-09999999LOCKNUT
SERIAL 00039056-09999999 -
2111-82395M NUT
SERIAL 00000000-00039055NUT
SERIAL 00000000-00039055 -
2212-82220M WASHERWASHER
-
2313-82218M WASHER, LOCKWASHER, LOCK
-
2482776 BRACKET, STEERING ROPE/PULLEY TYPE, OPTBRACKET, STEERING ROPE/PULLEY TYPE, OPT
