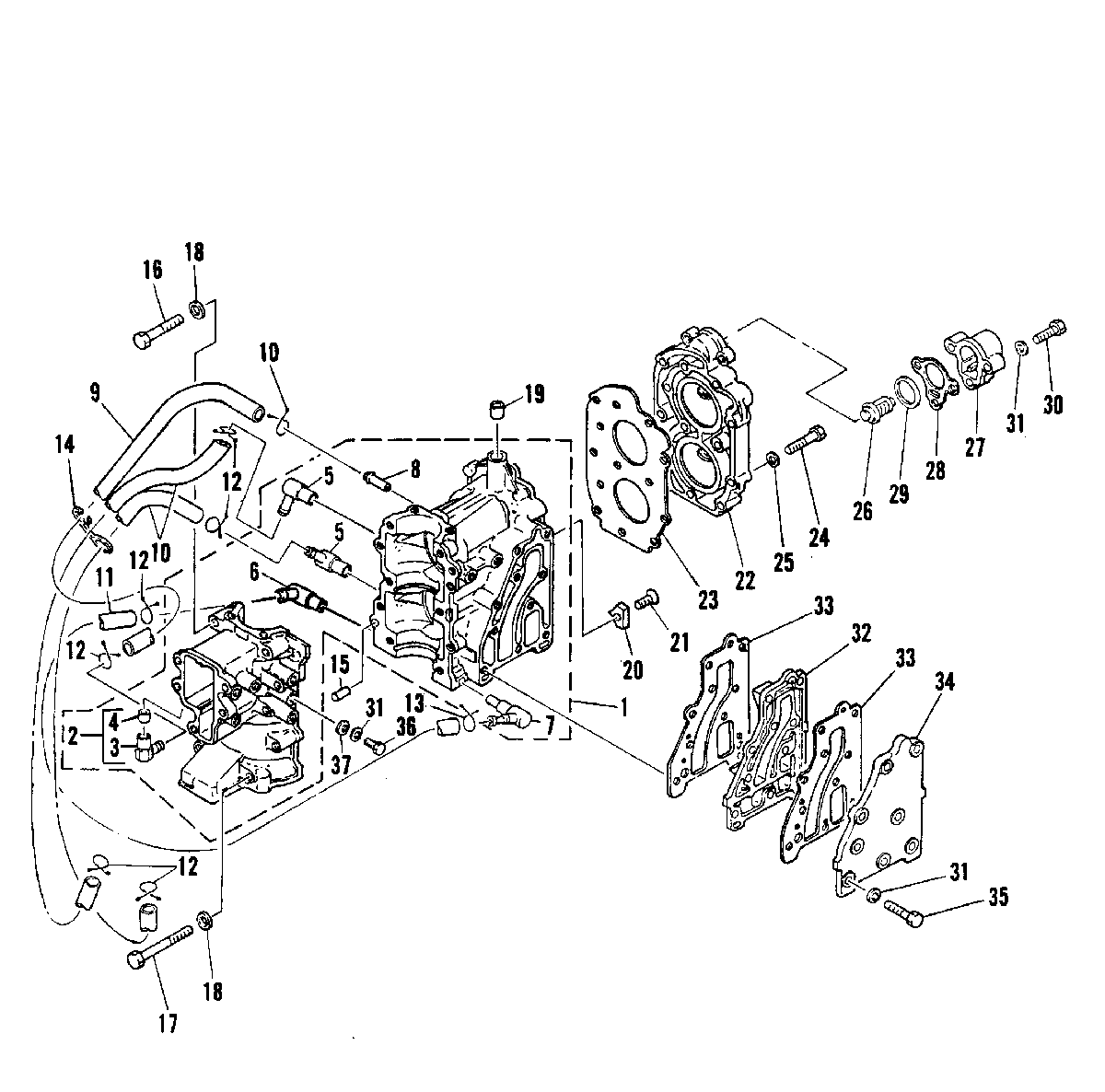

CRANKCASE AND CYLINDER HEAD для Mariner - 8B 677-300101 AND UP
-
№АртикулНазвание
-
1968-6973M CRANKCASE ASS'YCRANKCASE ASS'Y
-
221-80727M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
322-82975M FITTING, DRAINFITTING, DRAIN
-
421-80107M VALVE, CHECKVALVE, CHECK
-
521-82692M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
622-84661M FITTING, DRAIN
SERIAL 00012921-09999999FITTING, DRAIN
SERIAL 00012921-09999999 -
622-83326M FITTING, DRAIN
SERIAL 00000000-00012920FITTING, DRAIN
SERIAL 00000000-00012920 -
722-83326M FITTING, DRAINFITTING, DRAIN
-
822-80122M FITTING, DRAINFITTING, DRAIN
-
932-811045M HOSEHOSE
-
1032-811045M HOSEHOSE
-
1132-82012M HOSEHOSE
-
1254-82046M CLAMPCLAMP
-
1354-98974M CLAMPCLAMP
-
1482038M CLAMPCLAMP
-
1517-82359M PIN, DOWELPIN, DOWEL
-
1610-84657M BOLTBOLT
-
1710-84658M BOLTBOLT
-
1812-81792M WASHERWASHER
-
1917-14214M PIN, DOWELPIN, DOWEL
-
2097-84732M ANODEANODE
-
2110-83286M SCREWSCREW
-
22968-6964M HEAD, CYLINDERHEAD, CYLINDER
-
2327-95595 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
2410-83285M BOLTBOLT
-
2512-81792M WASHERWASHER
-
2683282M THERMOSTATTHERMOSTAT
-
2783241M COVER, THERMOSTATCOVER, THERMOSTAT
-
2827-83242 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
2912-81835M WASHERWASHER
-
3010-82405M BOLTBOLT
-
3112-82214M WASHER, LOCKWASHER, LOCK
-
3295596M INNER COVER, EXHAUSTINNER COVER, EXHAUST
-
3327-95597 GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
3495598M OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
3510-83285M BOLTBOLT
-
3610-91772M BOLTBOLT
-
3727-95610 GASKETGASKET
-
3783783M POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
REPLACEMENT PARTSPOWERHEAD ASS'Y, COMPLETE (SEE NOTE)
REPLACEMENT PARTS -
3727-84161M GASKET SET, POWERHEAD
REPLACEMENT PARTSGASKET SET, POWERHEAD
REPLACEMENT PARTS
