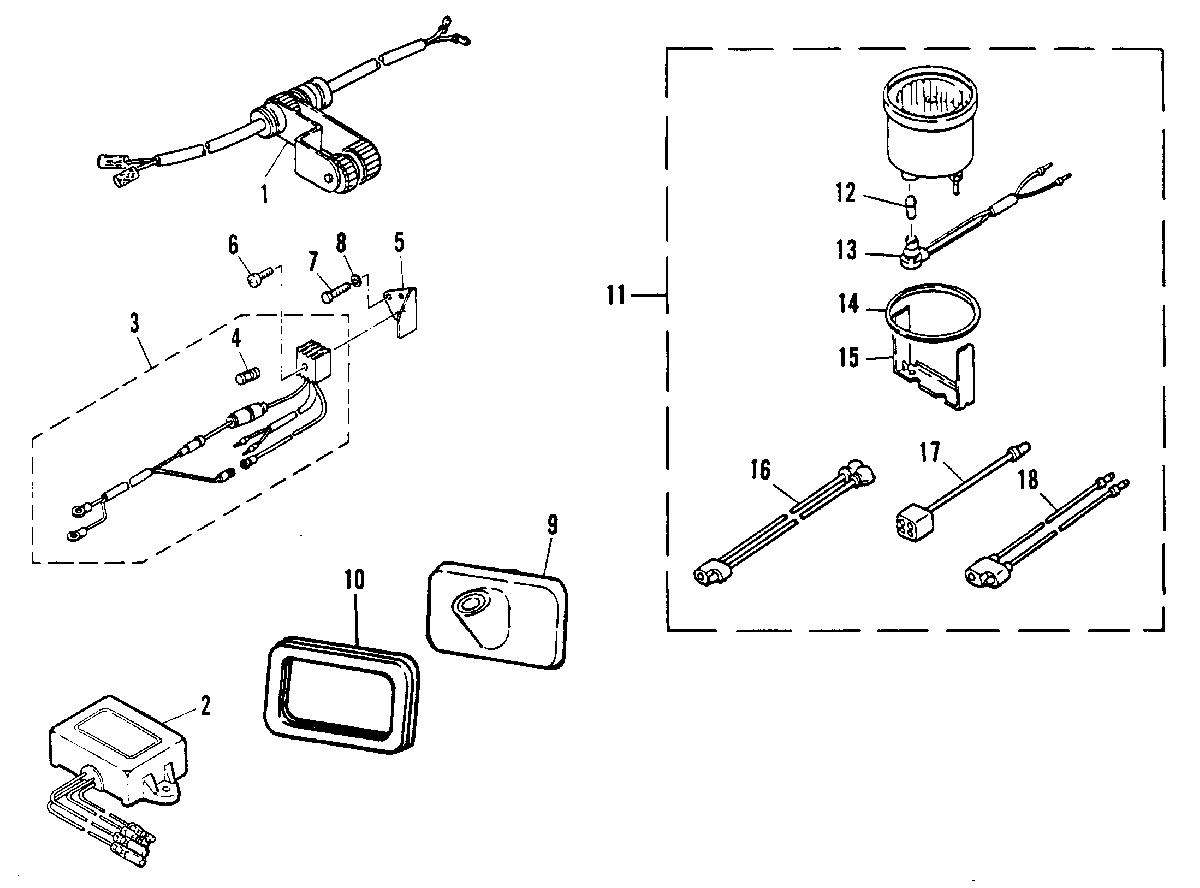

OPTIONAL PARTS для Mariner - 8B 677-300101 AND UP
-
№АртикулНазвание
-
184-84124M CONNECTOR ASS'Y (USED WITH REMOTE KILL SWITCH)CONNECTOR ASS'Y (USED WITH REMOTE KILL SWITCH)
-
284125T VOLTAGE REGULATORVOLTAGE REGULATOR
-
383-8M0060278 RECTIFIER ASS'Y - ENGINE MOUNTRECTIFIER ASS'Y - ENGINE MOUNT
-
488-81522M FUSE (12V-20A)FUSE (12V-20A)
-
584680M PLATE, RECTIFIER MOUNTINGPLATE, RECTIFIER MOUNTING
-
610-83108M SCREWSCREW
-
710-84088M BOLTBOLT
-
812-82214M WASHER, LOCKWASHER, LOCK
-
997130M STARTER ROPE GUIDE - VERTICAL PULL
SERIAL 00030636-09999999STARTER ROPE GUIDE - VERTICAL PULL
SERIAL 00030636-09999999 -
984126M STARTER ROPE GUIDE - VERTICAL PULL
SERIAL 00000000-00030635STARTER ROPE GUIDE - VERTICAL PULL
SERIAL 00000000-00030635 -
1026-83256M SEAL, STARTER ROPE GUIDE - VERTICAL PULL
SERIAL 00030636-09999999SEAL, STARTER ROPE GUIDE - VERTICAL PULL
SERIAL 00030636-09999999 -
1179-43984A1 TACHOMETER KITTACHOMETER KIT
-
1288-99055M BULBBULB
-
1399056A1 SOCKET, BULBSOCKET, BULB
-
1499057M DAMPERDAMPER
-
1599058M PLATEPLATE
-
1684-99059M WIREWIRE
-
1784-84353M CONNECTORCONNECTOR
-
1884-84352M EXTENSION, LEADEXTENSION, LEAD
