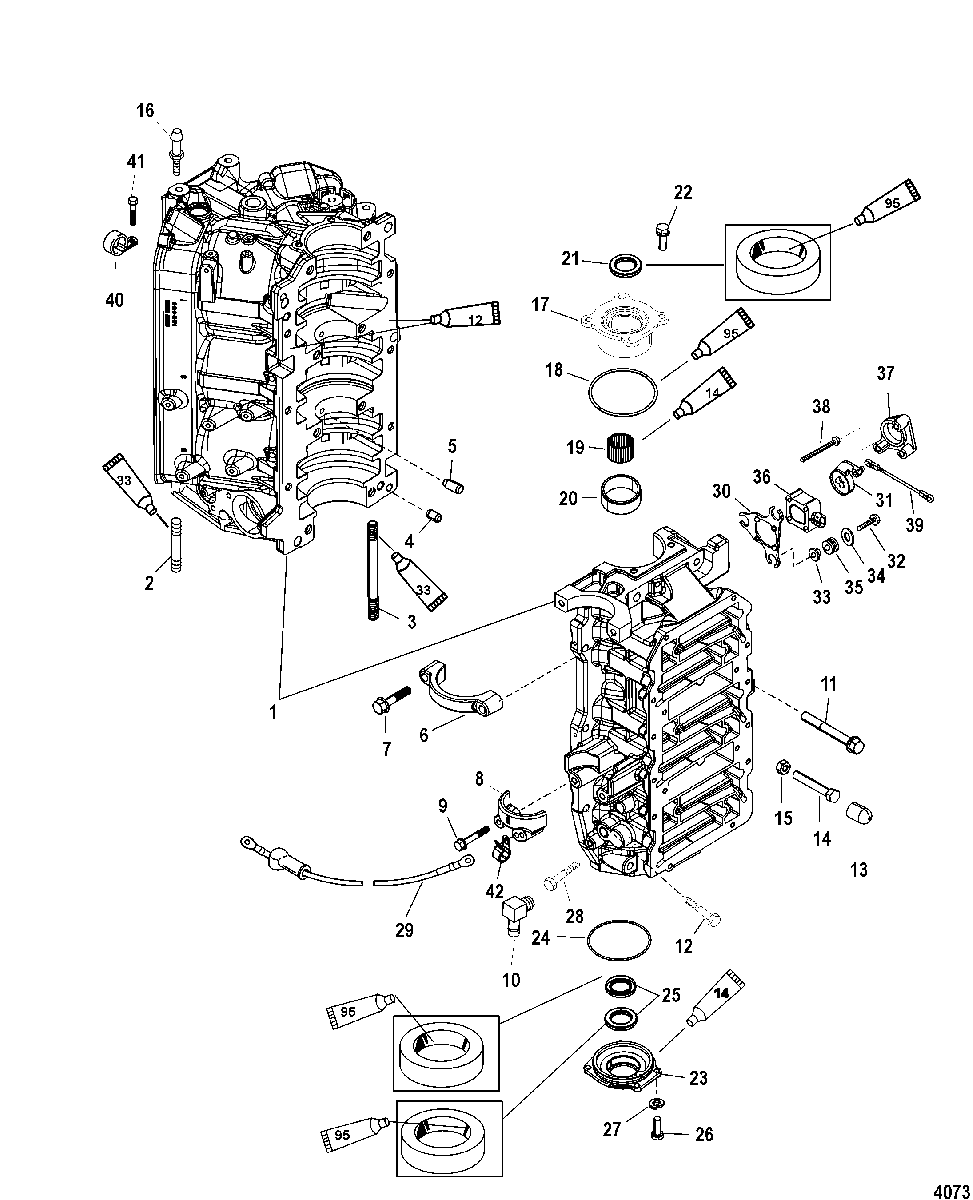

Cylinder Block and End Caps для Mariner - V-150 EFI (2.5L) 1B227000 & Up
-
№АртикулНазвание
-
1884-858961A21 CYLINDER BLOCK ASSEMBLY
(150)CYLINDER BLOCK ASSEMBLY
(150) -
1884-858961A23 CYLINDER BLOCK ASSEMBLY
(200)CYLINDER BLOCK ASSEMBLY
(200) -
216-8M0034455 STUD, (1.750 Inches)STUD, (1.750 Inches)
-
316-670654 STUD, (.375-16/.375-24 x 5.620)
(.375 x 5.62)STUD, (.375-16/.375-24 x 5.620)
(.375 x 5.62) -
316-8M0034454 STUD, (.375-16/.375-24 x 6.870)
(.375 x 6.87)STUD, (.375-16/.375-24 x 6.870)
(.375 x 6.87) -
417-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
517-8M0036405 PIN (Bearing Race)PIN (Bearing Race)
-
68M0111325 BRACKETBRACKET
-
710-828213 SCREW, (.312-18 x 1.500) Hex FlangeSCREW, (.312-18 x 1.500) Hex Flange
-
876867 COVER (Bottom)COVER (Bottom)
-
910-828214 SCREW, (.312-18 x 2.00) Hex FlangeSCREW, (.312-18 x 2.00) Hex Flange
-
1022-887801 FITTING, Elbow 90 Degree (.0625-27)FITTING, Elbow 90 Degree (.0625-27)
-
1110-66717 SCREW, (.375-16 x 3.250)SCREW, (.375-16 x 3.250)
-
1210-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
1326852 CAP, NylonCAP, Nylon
-
1410-856832 SCREW, (.250-20 x 1.750)SCREW, (.250-20 x 1.750)
-
1511-64015 NUT, (.250-20)NUT, (.250-20)
-
168215832 PIN, Special (1.5 Inches)PIN, Special (1.5 Inches)
-
171159-832760T1 END CAP ASSEMBLYEND CAP ASSEMBLY
-
1825-54029 O-RING, (2.800 x .103)O-RING, (2.800 x .103)
-
1931-16756A4 BEARING KITBEARING KIT
-
20NSS NOT SOLD SEPARATE, Bearing RaceNOT SOLD SEPARATE, Bearing Race
-
2126-41953 SEALSEAL
-
2210-881190 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
231156-7809T1 END CAP ASSEMBLYEND CAP ASSEMBLY
-
2425-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
2526-41953 SEALSEAL
-
2610-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
2713-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2810-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
2984-88439A26 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
308538821 BRACKET, Throttle Position Indicator MountBRACKET, Throttle Position Indicator Mount
-
318519371 LEVER, Throttle Position IndicatorLEVER, Throttle Position Indicator
-
3210-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3323-856954 BUSHINGBUSHING
-
3412-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
3525-834985 GROMMETGROMMET
-
368M6005165 INDICATOR, Throttle PositionINDICATOR, Throttle Position
-
378582261 COVERCOVER
-
3810-8508281 SCREW, (#10-32 x 2.00)SCREW, (#10-32 x 2.00)
-
398M0084738 LINK ASSEMBLY
SN# 1B417701 & BelowLINK ASSEMBLY
SN# 1B417701 & Below -
398M0084738 LINK ASSEMBLYLINK ASSEMBLY
-
4054-28700 CLAMP
SN# 1B417702 & UpCLAMP
SN# 1B417702 & Up -
4110-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4254-859172 CLAMPCLAMP
-
-27-8M0046715 GASKET SETGASKET SET
-
-883511T04 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-883600T04 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
