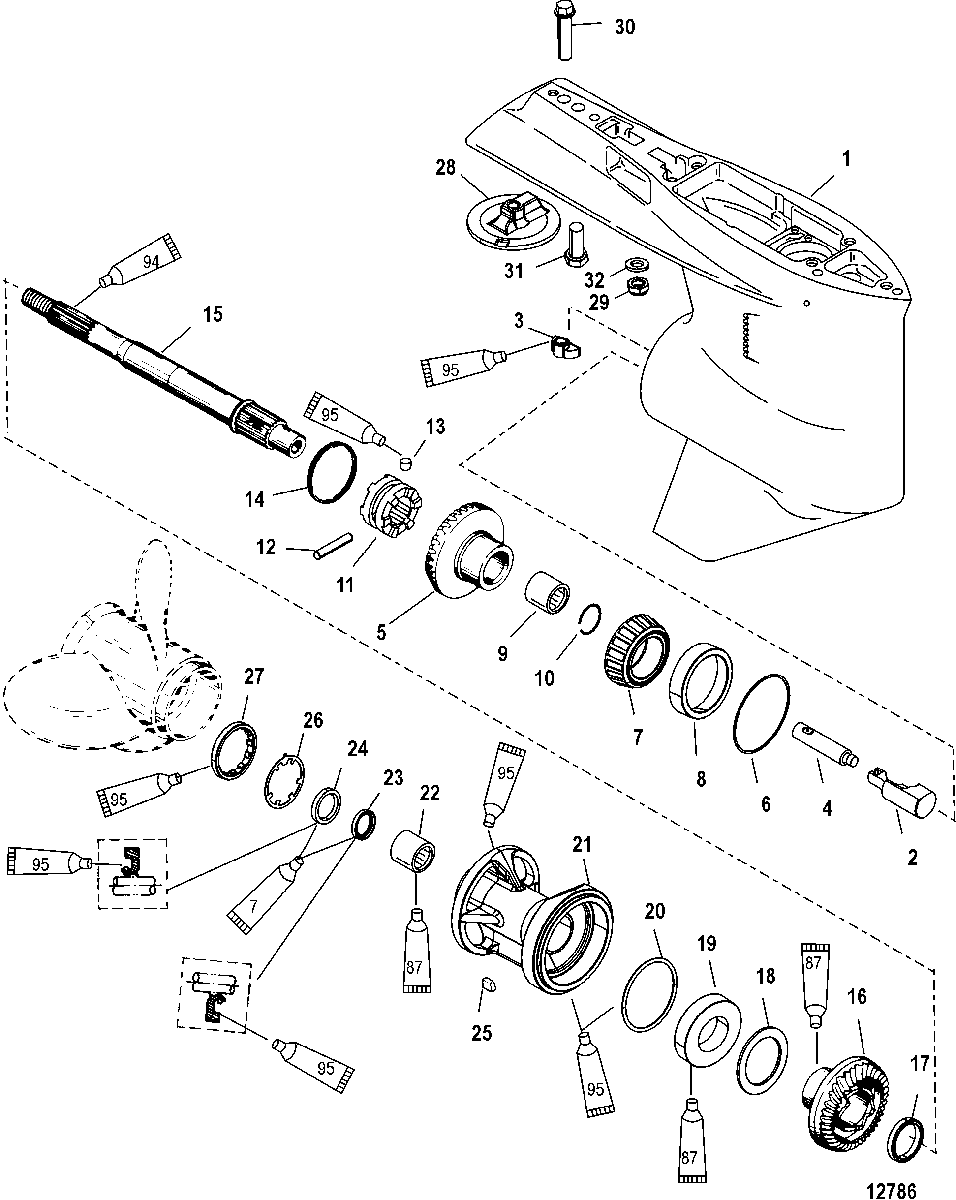

Gear Housing, Propeller Shaft - Standard Rotation для Mariner - V-150 EFI (2.5L) 1B227000 & Up
-
№АртикулНазвание
-
01647-9148T84 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Long- 1.87:1)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Long- 1.87:1) -
01647-9148T85 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-Long - 1.87:1)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-Long - 1.87:1) -
01647-9148T81 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Long - 2:1)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Long - 2:1) -
01647-9148T82 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-Long - 2:1)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-Long - 2:1) -
11647-9148T93 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
289594A1 FOLLOWER ASSEMBLYFOLLOWER ASSEMBLY
-
3789562 SHIFT CAMSHIFT CAM
-
4828287 RODROD
-
543-803615T2 GEAR ASSEMBLY, Pinion/Forward
(1.87:1 Gear Ratio)GEAR ASSEMBLY, Pinion/Forward
(1.87:1 Gear Ratio) -
543-803612T2 GEAR ASSEMBLY, Pinion/Forward
(2:1 Gear Ratio)GEAR ASSEMBLY, Pinion/Forward
(2:1 Gear Ratio) -
615-8M0063266 SHIM SETSHIM SET
-
731-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
8NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
931-30895T BEARING, NeedleBEARING, Needle
-
1053-856823 RING, RetainingRING, Retaining
-
1152-859340T CLUTCHCLUTCH
-
1217-8M0100263 PIN, CrossPIN, Cross
-
1317-828356 PIN, DetentPIN, Detent
-
1424-30893 SPRINGSPRING
-
1544-94148 PROPELLER SHAFTPROPELLER SHAFT
-
1643-828175A1 GEAR ASSEMBLY, Reverse - 15/28
(1.87:1 Gear Ratio)GEAR ASSEMBLY, Reverse - 15/28
(1.87:1 Gear Ratio) -
1643-828177A1 GEAR ASSEMBLY, Reverse - 14/28
(2:1 Gear Ratio)GEAR ASSEMBLY, Reverse - 14/28
(2:1 Gear Ratio) -
1723-824108 SPACERSPACER
-
18681001 RING, ThrustRING, Thrust
-
1930-88957T BEARING, BallBEARING, Ball
-
2025-31534 O-RINGO-RING
-
2143567T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
2231-30956T BEARING, NeedleBEARING, Needle
-
2326-14077 SEAL, Oil (Inside)SEAL, Oil (Inside)
-
2426-76868 SEAL (Outside)SEAL (Outside)
-
2528-30281 KEYKEY
-
2614-79447 TAB WASHERTAB WASHER
-
278M2000347 RETAINERRETAINER
-
2897-76214Q5 ANODE
(Aluminum)ANODE
(Aluminum) -
2897-76214Q5 ANODE KIT
(Aluminum-Quicksilver Branded)ANODE KIT
(Aluminum-Quicksilver Branded) -
2897-76214T5 ANODE KIT
(Aluminum-Mercury Branded)ANODE KIT
(Aluminum-Mercury Branded) -
2897-76214A6 ANODE KIT
(Magneseum)ANODE KIT
(Magneseum) -
2911-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
3010-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
3110-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
3212-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
-NS NOT SHOWN, See Accessory Guide-Propellers-For Appropriate hardware (Thrust Washers/Nuts)NOT SHOWN, See Accessory Guide-Propellers-For Appropriate hardware (Thrust Washers/Nuts)
-
-26-89238A2 SEAL KITSEAL KIT
-
-52-803491T1 FOLLOWER ASSEMBLY, Clutch/CamFOLLOWER ASSEMBLY, Clutch/Cam
-
-31-803033T1 BEARING AND SEAL KIT (Without Foward Bearing)BEARING AND SEAL KIT (Without Foward Bearing)
-
-27-8M0046715 GASKET SETGASKET SET
