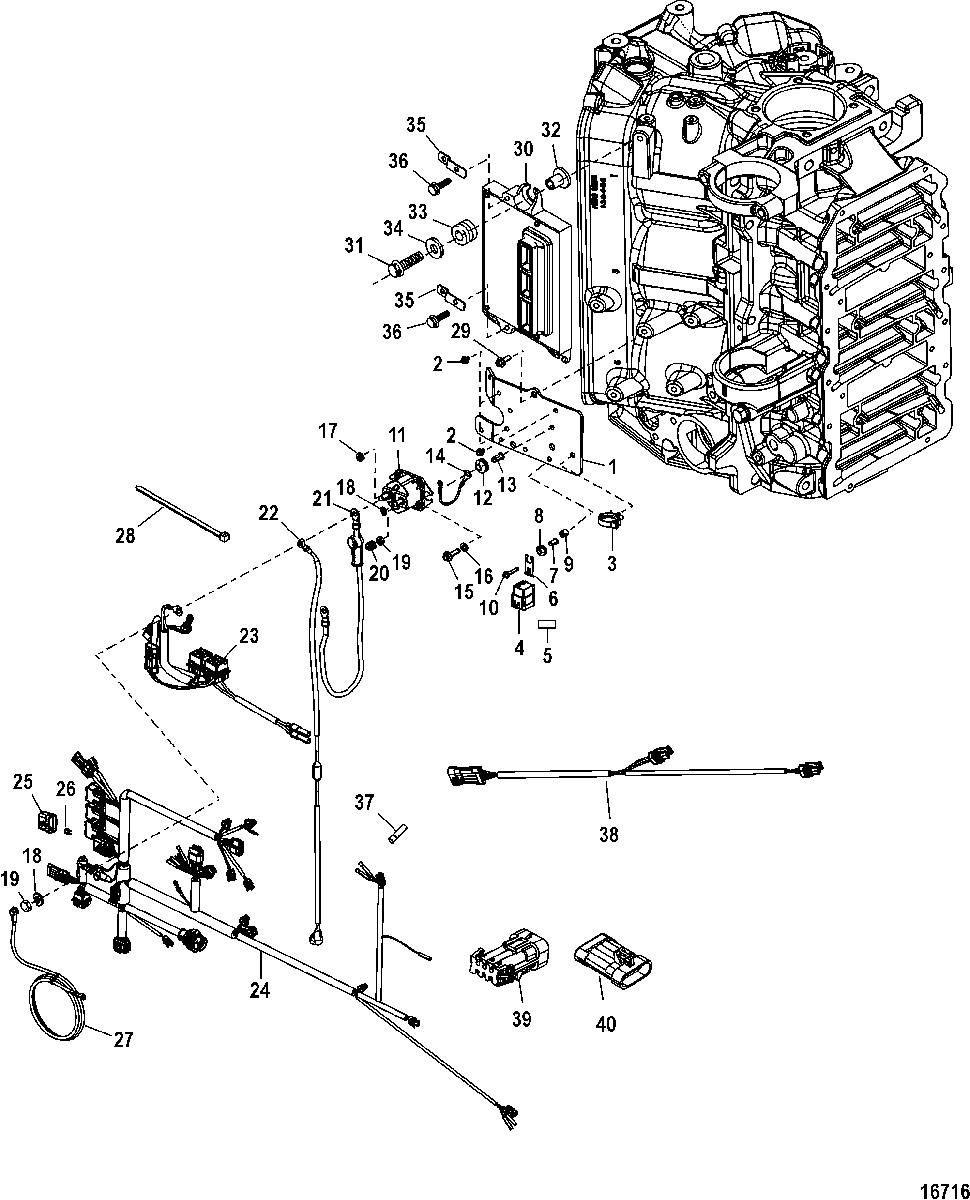

Electrical Plate Assembly для Mariner - V-150 EFI (2.5L) 1B227000 & Up
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Electrical Plate Assembly-CompleteNOT SOLD SEPARATE, Electrical Plate Assembly-Complete
-
1833137F1 PLATEPLATE
-
210-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
354-858755 CLIP, (1.00)CLIP, (1.00)
-
4882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
5NSS NOT SOLD SEPARATE, Decal-Trim RelayNOT SOLD SEPARATE, Decal-Trim Relay
-
6828102 BRACKETBRACKET
-
723-818968 BUSHINGBUSHING
-
825-818967 GROMMETGROMMET
-
923-19661 BUSHINGBUSHING
-
1010-82129135 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
1189-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
1225-822179 GROMMETGROMMET
-
1323-818968 BUSHINGBUSHING
-
1484-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
-
1510-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1711-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1813-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1911-68292 NUT, (.312-18)NUT, (.312-18)
-
2011-813938 CAP NUT, (#10-32)CAP NUT, (#10-32)
-
2184-882829A1 CABLE ASSEMBLY, StarterCABLE ASSEMBLY, Starter
-
2284-878231T03 HARNESS ASSEBMLY, FuseHARNESS ASSEBMLY, Fuse
-
2384-819514T21 HARNESS ASSEMBLY, Trim
SN# 1B417701 & BelowHARNESS ASSEMBLY, Trim
SN# 1B417701 & Below -
2384-819514T21 HARNESS ASSEMBLY, Trim
SN# 1B417702 & UpHARNESS ASSEMBLY, Trim
SN# 1B417702 & Up -
2484-892970T01 HARNESS ASSEMBLY, EngineHARNESS ASSEMBLY, Engine
-
25858754 COVER, FuseCOVER, Fuse
-
-879346A50 HARNESS ASSEMBLY (FUEL INJECTOR)HARNESS ASSEMBLY (FUEL INJECTOR)
-
-879346A41 HARNESS ASSEMBLY (TPS)HARNESS ASSEMBLY (TPS)
-
2688-832969T20 FUSE, Mini - Yellow - 20 Ampere
(20 AMP)FUSE, Mini - Yellow - 20 Ampere
(20 AMP) -
2688-832969T05 FUSE, Mini - Tan - 5 Ampere
(5 AMP)FUSE, Mini - Tan - 5 Ampere
(5 AMP) -
2784-88439A46 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
2854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2910-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
3089790630T PCM, Propulsion Control Module
(150) SN# 1B348750 & BelowPCM, Propulsion Control Module
(150) SN# 1B348750 & Below -
3088555764T PCM, Propulsion Control Module
(150) SN# 1B348751 THRU 1B417701PCM, Propulsion Control Module
(150) SN# 1B348751 THRU 1B417701 -
3089790630T PCM, Propulsion Control Module
(150) SN# 1B417702 & UpPCM, Propulsion Control Module
(150) SN# 1B417702 & Up -
3089790617T PCM, Propulsion Control Module
(200) SN# 1B417701 & BelowPCM, Propulsion Control Module
(200) SN# 1B417701 & Below -
3089790617T PCM, Propulsion Control Module
(200) SN# 1B417702 & UpPCM, Propulsion Control Module
(200) SN# 1B417702 & Up -
3110-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3223-856954 BUSHINGBUSHING
-
3325-834985 GROMMETGROMMET
-
3412-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
35858953 BRACKETBRACKET
-
3610-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
3713540 CAP, FemaleCAP, Female
-
3713541 PLUG, MalePLUG, Male
-
3884-882815A1 HARNESS ASSEMBLY, Knock Sensor
(200)HARNESS ASSEMBLY, Knock Sensor
(200) -
39877613A02 CONNECTOR ASSEMBLY, Weather Cap 6 PinCONNECTOR ASSEMBLY, Weather Cap 6 Pin
-
40830796A04 CONNECTOR ASSEMBLY, Weather Cap - MaleCONNECTOR ASSEMBLY, Weather Cap - Male
