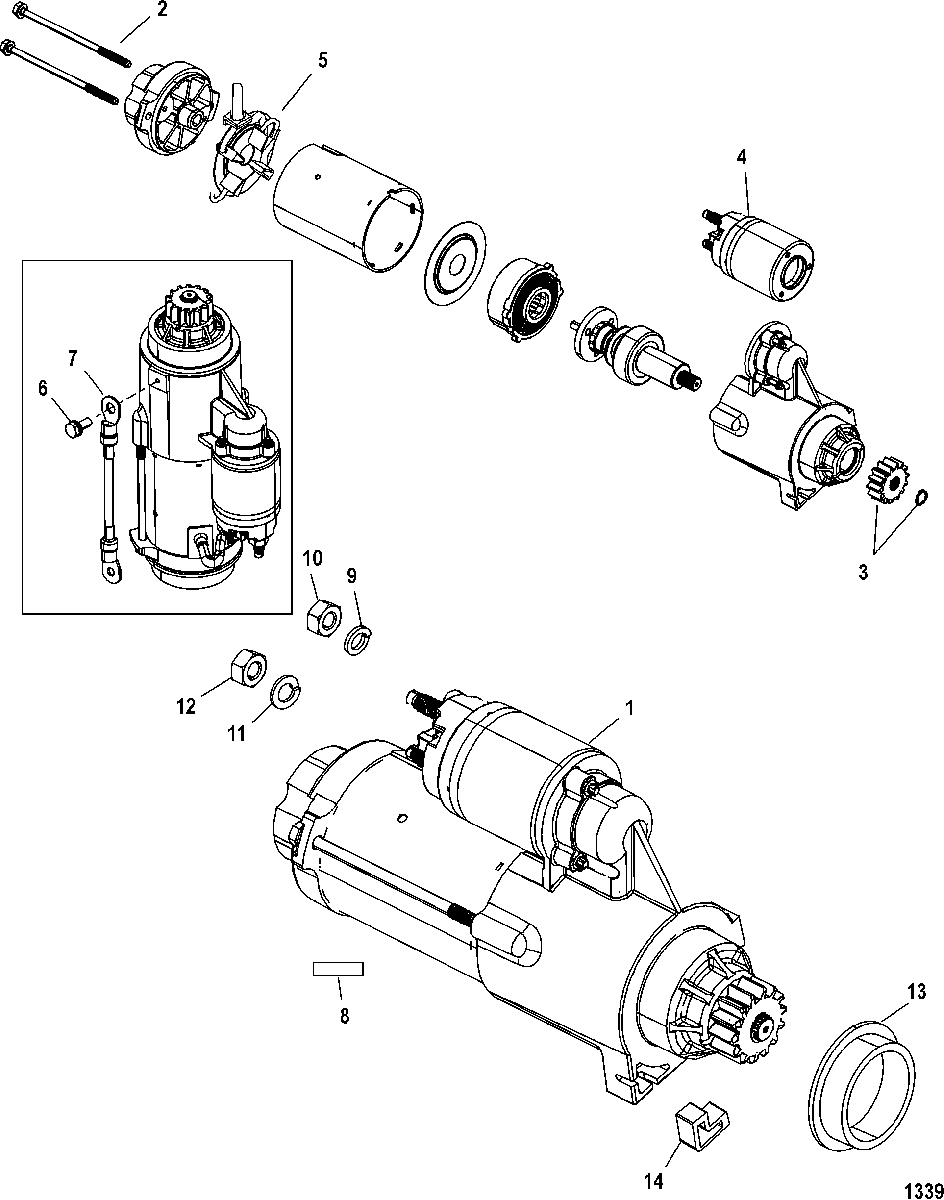

Starter Motor для Mariner - V-150 EFI (2.5L) 1B227000 & Up
-
№АртикулНазвание
-
150-892339T01 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
210-803005 THRU BOLTTHRU BOLT
-
343-880805A1 GEAR KITGEAR KIT
-
4809463A1 SOLENOID KITSOLENOID KIT
-
510-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
684-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
7NSS NOT SOLD SEPARATE, Decal-Warning-High VoltageNOT SOLD SEPARATE, Decal-Warning-High Voltage
-
813-400255 LOCKWASHER, (M5)LOCKWASHER, (M5)
-
911-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
1013-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1111-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
1223-8M0034918 COLLAR
SN# 1B417701 & BelowCOLLAR
SN# 1B417701 & Below -
1223-8M0034918 COLLAR, Starter Motor
SN# 1B417702 & UpCOLLAR, Starter Motor
SN# 1B417702 & Up -
138M0043276 STOPSTOP
