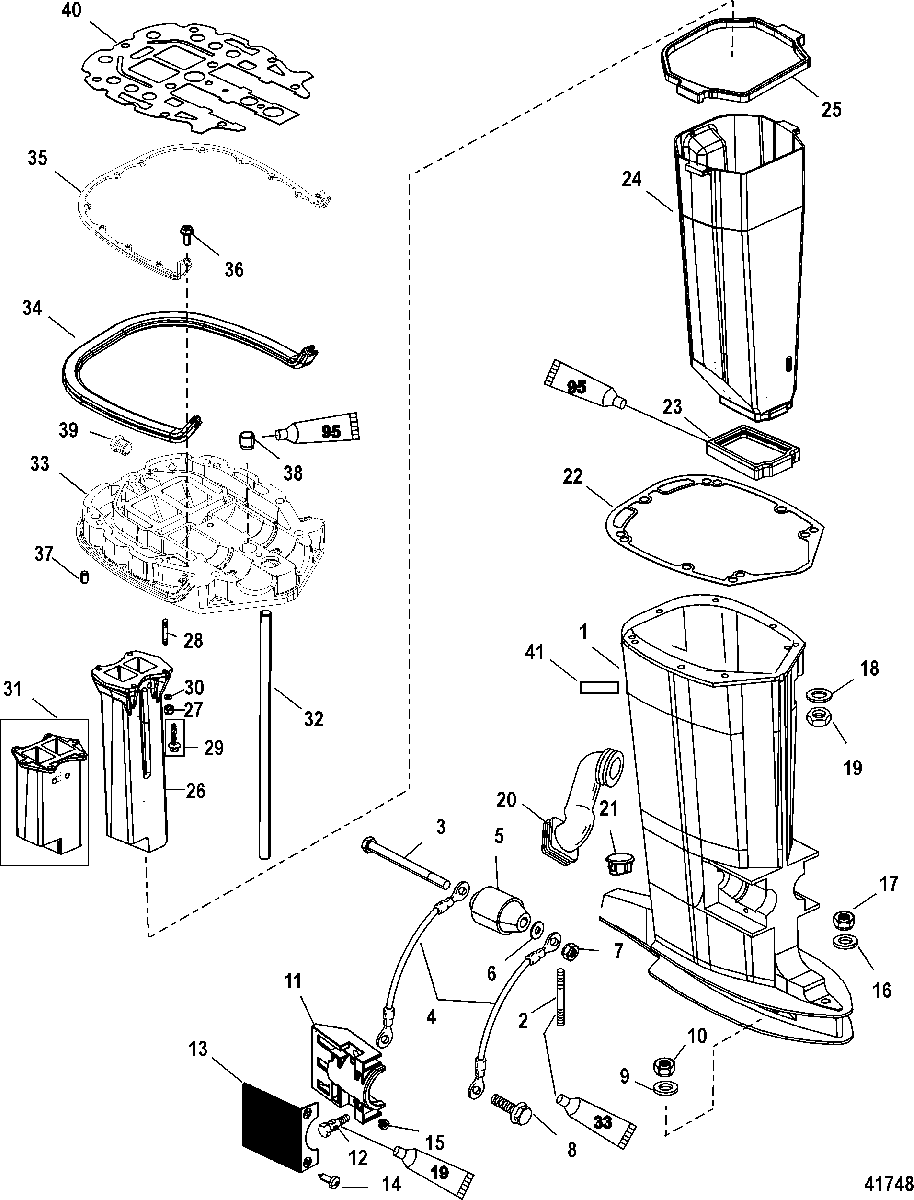

Driveshaft Housing and Exhaust Tube для Mariner - V-150 EFI (2.5L) 1B227000 & Up

№

Артикул

Название
1

1590-8343T10 HOUSING ASSEMBLY, Driveshaft - Black - Long
(Long)

HOUSING ASSEMBLY, Driveshaft - Black - Long
(Long)

117 820 ₽
1

3503-813563T1 HOUSING, Driveshaft - Black - X-Long
(X-Long)

HOUSING, Driveshaft - Black - X-Long
(X-Long)

111 050 ₽
2

16-56295 STUD, (.437 x 2.69)

STUD, (.437 x 2.69)

420 ₽
3

10-898831 SCREW, (.500-20 x 6.00)
SN# 1B417701 & Below

SCREW, (.500-20 x 6.00)
SN# 1B417701 & Below

1 860 ₽
3

10-898831 SCREW, (.500-20 x 6.220)
SN# 1B417702 & Up

SCREW, (.500-20 x 6.220)
SN# 1B417702 & Up

1 860 ₽
4

88238A10 CABLE ASSEMBLY, Ground

CABLE ASSEMBLY, Ground

600 ₽
5

77327 MOUNT, Lower

MOUNT, Lower

16 010 ₽
6

12-49339 WASHER, (.8125)

WASHER, (.8125)

140 ₽
7

11-898832 NUT, (.500-20)
SN# 1B417701 & Below

NUT, (.500-20)
SN# 1B417701 & Below

260 ₽
7

11-898832 NUT, (.500-20)
SN# 1B417702 & Up

NUT, (.500-20)
SN# 1B417702 & Up

260 ₽
8

10-41508 SCREW, (.250-20 x .500) Stainless Steel

SCREW, (.250-20 x .500) Stainless Steel

260 ₽
9

12-45176 WASHER, (.453 x .812 x .105) Stainless Steel

WASHER, (.453 x .812 x .105) Stainless Steel

130 ₽
10

11-34933 NUT, (.437-20) Stainless Steel

NUT, (.437-20) Stainless Steel

440 ₽
11

54-8M0036782 CLAMP

CLAMP

2 200 ₽
12

10-66727 SCREW, (.312-18 x 1.250)

SCREW, (.312-18 x 1.250)

220 ₽
13

100-8M4500752 COVER, Black
SN# 1B417701 & Below

COVER, Black
SN# 1B417701 & Below

2 270 ₽
13

100-8M4500752 COVER
SN# 1B417702 & Up

COVER
SN# 1B417702 & Up

2 270 ₽
14

10-88417 SCREW, (#12-24 x .620)

SCREW, (#12-24 x .620)

140 ₽
15

11-35521 NUT

NUT

190 ₽
16

12-48926 WASHER

WASHER

570 ₽
17

11-34933 NUT, (.437-20) Stainless Steel

NUT, (.437-20) Stainless Steel

440 ₽
18

12-20553 WASHER, (.406 x .734 x .063)

WASHER, (.406 x .734 x .063)

120 ₽
19

11-69254 NUT

NUT

430 ₽
20

8M0039081 BOOT, Idle Exhaust

BOOT, Idle Exhaust

2 960 ₽
21

19-64649 PLUG

PLUG

300 ₽
22

27-991734 GASKET

GASKET

1 500 ₽
23

66350001 SEAL (Lower)

SEAL (Lower)

950 ₽
24

18276T TUBE, Exhaust
SN# 1B417701 & Below

TUBE, Exhaust
SN# 1B417701 & Below

23 600 ₽
24

18276T TUBE, Exhaust
SN# 1B417702 & Up

TUBE, Exhaust
SN# 1B417702 & Up

23 600 ₽
25

8M0039076 SEAL (Upper)

SEAL (Upper)

3 710 ₽
26

812834A2 EXTENSION ASSEMBLY, Exhaust
(150)

EXTENSION ASSEMBLY, Exhaust
(150)

23 510 ₽
27

11-888500 NUT
SN# 1B776450 & Below

NUT
SN# 1B776450 & Below

200 ₽
28

16-56766 STUD, (.250 x 1.38)
Design-I SN# 1B776450 & Below

STUD, (.250 x 1.38)
Design-I SN# 1B776450 & Below

250 ₽
29

10-8M0030694 SCREW, (0.25-20 x 1.00)
Design-II SN# 1B776451 & Up

SCREW, (0.25-20 x 1.00)
Design-II SN# 1B776451 & Up

760 ₽
29

10-8M0047146 SCREW, (0.25-20 x 1.50)
Design-III

SCREW, (0.25-20 x 1.50)
Design-III

900 ₽
30

12-35044 WASHER, (.281 x .625 x .065) Stainless Steel
Design-I and Design-III

WASHER, (.281 x .625 x .065) Stainless Steel
Design-I and Design-III

140 ₽
31

879288T71 EXTENSION, Exhaust
(200)

EXTENSION, Exhaust
(200)

15 200 ₽
32

32-8M0042788 TUBE, Water
(Long)

TUBE, Water
(Long)

4 350 ₽
32

32-8M0042790 TUBE, Water
(X-Long)

TUBE, Water
(X-Long)

5 800 ₽
33

18233A20 PLATE ASSEMBLY, Driveshaft Housing

PLATE ASSEMBLY, Driveshaft Housing

68 860 ₽
34

8M0043165 SEAL

SEAL

4 140 ₽
35

68011 BRACKET

BRACKET

760 ₽
36

10-878608 SCREW, (#10-16 x .500)

SCREW, (#10-16 x .500)

120 ₽
37

17-43044 PIN, Dowel - Without Hole (.375 x .625)

PIN, Dowel - Without Hole (.375 x .625)

200 ₽
38

26-38970 SEAL

SEAL

340 ₽
39

22-328022 PLUG, Pipe (.125-27) Brass

PLUG, Pipe (.125-27) Brass

600 ₽
40

27-183076 GASKET

GASKET

1 930 ₽
41

NSS NOT SOLD SEPARATE, Decal-Counter Rotation

NOT SOLD SEPARATE, Decal-Counter Rotation

0 ₽
-

27-8M0046715 GASKET SET

GASKET SET

30 270 ₽
