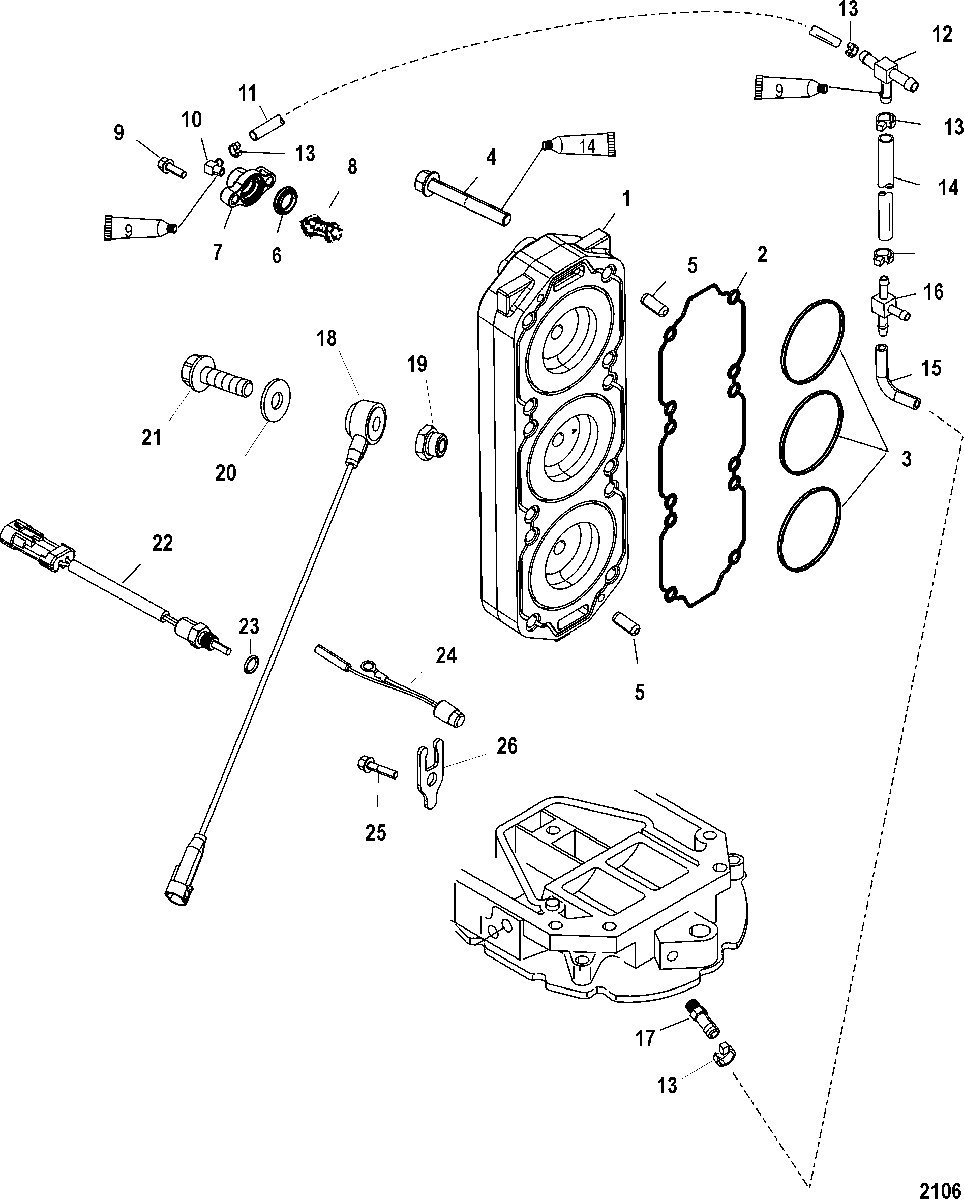

Cylinder Head для Mariner - V-150 EFI (2.5L) 1B227000 & Up
-
№АртикулНазвание
-
1858281A9 CYLINDER HEAD KIT
(150)CYLINDER HEAD KIT
(150) -
1858281A10 CYLINDER HEAD ASSEMBLY
(200)CYLINDER HEAD ASSEMBLY
(200) -
28584521 SEALSEAL
-
38597721 SEALSEAL
-
410-8M0125882 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
517-63779 PIN, Dowel (.250 x .625)PIN, Dowel (.250 x .625)
-
627-62386001 GASKETGASKET
-
790390A1 COVER KITCOVER KIT
-
875692 THERMOSTATTHERMOSTAT
-
910-40011149 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
1022-687271 FITTING, (.250-18) 90 Degree - BrassFITTING, (.250-18) 90 Degree - Brass
-
1132-77653101 HOSE, (48.00 Inches Bulk) (Cut to 12-3/4 Inches)HOSE, (48.00 Inches Bulk) (Cut to 12-3/4 Inches)
-
1222-68728 FITTINGFITTING
-
1354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1432-77653101 HOSE, (48.00 Inches Bulk) (Cut to 13-1/2 Inches)HOSE, (48.00 Inches Bulk) (Cut to 13-1/2 Inches)
-
1532-827602002 HOSEHOSE
-
1622-815914 T-FITTING, To TelltaleT-FITTING, To Telltale
-
1722-897722 FITTING, StraightFITTING, Straight
-
188M6003194 SENSOR ASSEMBLY, Knock
(200)SENSOR ASSEMBLY, Knock
(200) -
19882841 ADAPTOR
(200)ADAPTOR
(200) -
2012-4002319 WASHER
(200)WASHER
(200) -
2110-87810178 SCREW, (M10 x 35)
(200)SCREW, (M10 x 35)
(200) -
22885342002 SENSOR ASSEMBLY
SN# 1B417701 & BelowSENSOR ASSEMBLY
SN# 1B417701 & Below -
22885342002 SENSOR ASSEMBLY
SN# 1B417702 & UpSENSOR ASSEMBLY
SN# 1B417702 & Up -
2325-896699 O-RING, (.351 x .072)
SN# 1B417701 & BelowO-RING, (.351 x .072)
SN# 1B417701 & Below -
2325-896699 O-RING, (1.78 mm x .08 mm)
SN# 1B417702 & UpO-RING, (1.78 mm x .08 mm)
SN# 1B417702 & Up -
2413536A13 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
2510-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
26137151 RETAINERRETAINER
-
-27-8M0046715 GASKET SETGASKET SET
-
-883511T04 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-883600T04 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
