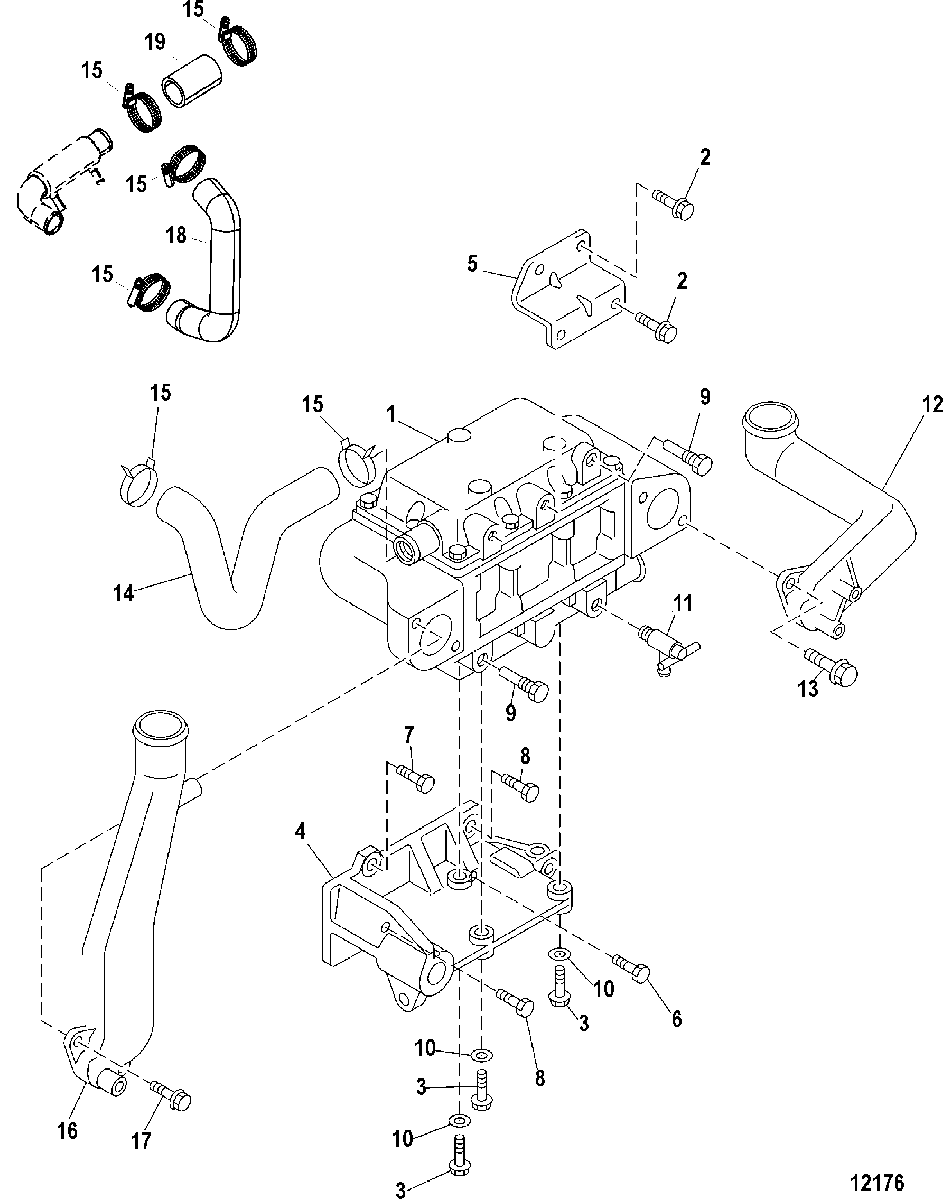

Air Cooler для Mercruiser - CMD 1.7 MI 120 I/L4 88109041 & Up
-
№АртикулНазвание
-
1882566 COOLER ASSEMBLY, AirCOOLER ASSEMBLY, Air
-
210-882323 SCREW, (M10 x 22), With LockwasherSCREW, (M10 x 22), With Lockwasher
-
310-882324 BOLTBOLT
-
4882560 BRACKET, Air CoolerBRACKET, Air Cooler
-
5882561 BRACKET, Air CoolerBRACKET, Air Cooler
-
610-882419 SCREW, (M10 x 40)SCREW, (M10 x 40)
-
710-882623 SCREW, (M10 x 25)SCREW, (M10 x 25)
-
810-882625 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
9882283 BAR, ZincBAR, Zinc
-
1013-882640 LOCKWASHERLOCKWASHER
-
11882656 FITTINGFITTING
-
12882558 DUCT, Intake, TurboDUCT, Intake, Turbo
-
1310-882674 SCREW, (M8 x 75)SCREW, (M8 x 75)
-
1432-882573 HOSE
(Without Power Steering)HOSE
(Without Power Steering) -
1554-815504220 CLAMP, Worm Gear, HoseCLAMP, Worm Gear, Hose
-
16882551 DUCT, AirDUCT, Air
-
1710-882325 SCREW, (M8 x 25), With LockwasherSCREW, (M8 x 25), With Lockwasher
-
1832-863819 HOSE, Fluid Cooler to Heat ExchangerHOSE, Fluid Cooler to Heat Exchanger
-
1932-863047 HOSE, Air Cooler to Fluid CoolerHOSE, Air Cooler to Fluid Cooler
Все узлы модели:
- • Air Cooler
- Alternator
- Camshaft and Valves
- Crankshaft, PISTONS, AND FLYWHEEL
- Cylinder Block
- Cylinder Head
- Cylinder Head Cover
- Drive Lubricant Monitor
- Engine Mounts
- Exhaust Components
- Fuel Filter and Bracket
- Fuel Injection System
- Glow Plug System
- Heat Exchanger
- Instrument Panel
- Instrument Panel Kit Components, Full
- Intake Manifold
- Jackshaft Components
- Oil and Vacuum Hoses
- Oil Cooler and Oil Filter
- Oil Pan and Level Gauge
- Oil Pump and Strainer
- Power Steering Components
- Seawater Pump(INBOARD)
- Service and Support Material
- Service Kit - Gasket Set, CYLINDER HEAD OVERHAUL
- Service Kit - Gasket Set, ENGINE OVERHAUL
- Service Kit - Partial Engine Assembly
- Shift Bracket(DESIGN I-With Cotter Pins)
- Shift Bracket(DESIGN II-With Hairpin Clips or 4 Cotter Pins)
- Special Tools
- Starter and Alternator
- Starter Motor
- Thermostat and Housing
- Throttle Linkage
- Timing Cover and Flywheel Housing(INBOARD)
- Timing Cover and Flywheel Housing(STERNDRIVE)
- Transmission and Related Parts
- Turbocharger System
- Water Pump
- Wiring Harness and Clips
