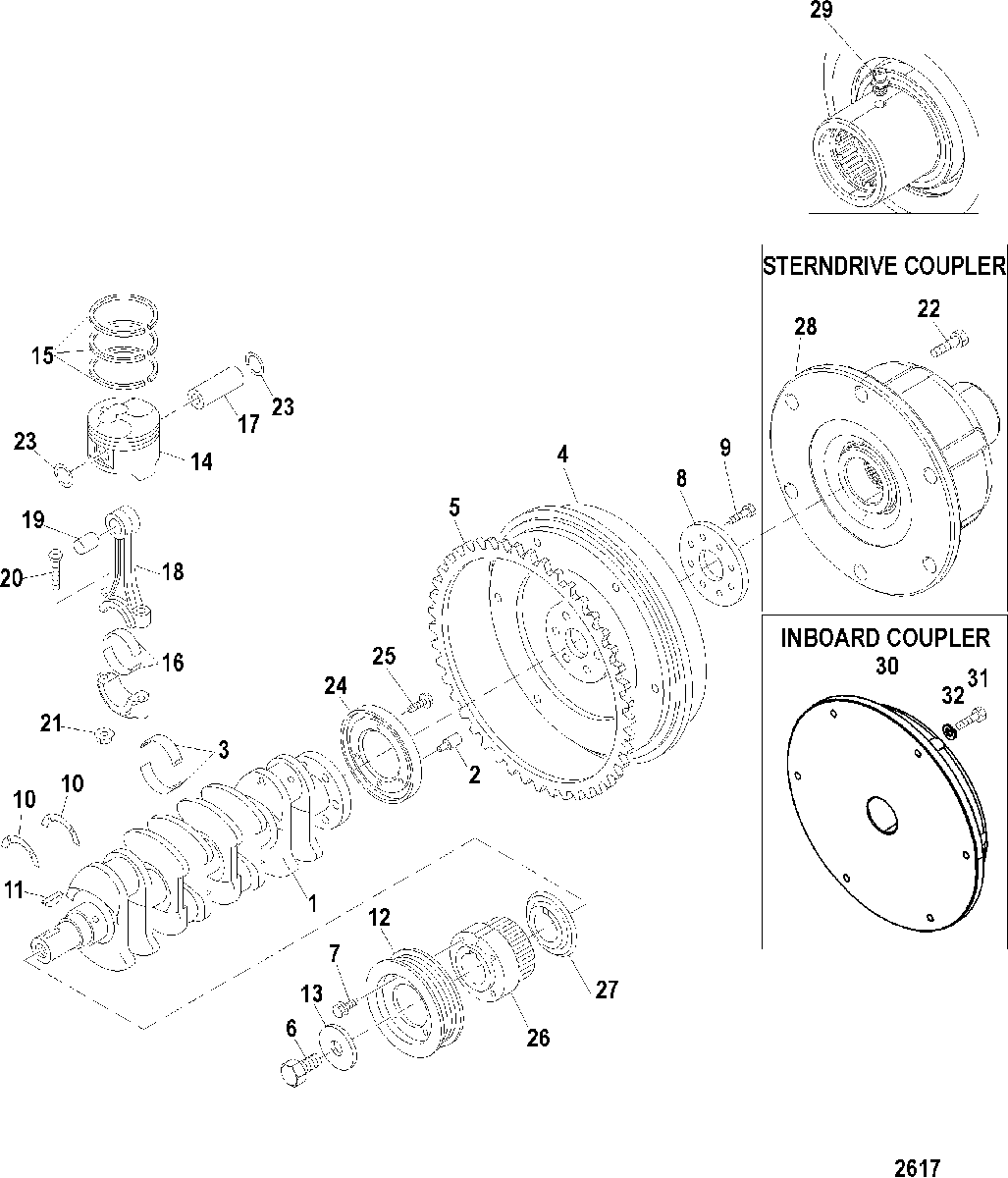

Crankshaft, PISTONS, AND FLYWHEEL для Mercruiser - CMD 1.7 MI 120 I/L4 88109041 & Up
-
№АртикулНазвание
-
1891723001 CRANKSHAFTCRANKSHAFT
-
2882717 PIN, CrankshaftPIN, Crankshaft
-
323-882411001 BEARING SET, GreenBEARING SET, Green
-
323-882412001 BEARING SET, BrownBEARING SET, Brown
-
323-882413001 BEARING SET, BlackBEARING SET, Black
-
323-882414001 BEARING SET, BlueBEARING SET, Blue
-
4222-882539 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
543-882363 GEAR, Ring, FlywheelGEAR, Ring, Flywheel
-
610-882663 SCREW, (M16 x 35), Pulley to CrankshaftSCREW, (M16 x 35), Pulley to Crankshaft
-
710-882318 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
812-882429 WASHER, FlywheelWASHER, Flywheel
-
910-882723 SCREW, FlywheelSCREW, Flywheel
-
10888746001 WASHER, Thrust, Crankshaft
SN# 88121100 & UpWASHER, Thrust, Crankshaft
SN# 88121100 & Up -
11882386001 KEY, Woodruff, CrankshaftKEY, Woodruff, Crankshaft
-
12882724001 PULLEY, Crankshaft DamperPULLEY, Crankshaft Damper
-
1312-882396 WAHSER, Crankshaft PulleyWAHSER, Crankshaft Pulley
-
14795-882692001 PISTON, (Grade A)PISTON, (Grade A)
-
14795-882693001 PISTON, (Grade B)PISTON, (Grade B)
-
14795-882694001 PISTON, (Grade C)PISTON, (Grade C)
-
1539-882416 RING SET, PistonRING SET, Piston
-
1623-882504 BEARING SET, Brown, Connencting Rod
Design-1 Locating TabBEARING SET, Brown, Connencting Rod
Design-1 Locating Tab -
1623-8M0119627 BEARING SET, Black, Connencting Rod
Design-1 Locating TabBEARING SET, Black, Connencting Rod
Design-1 Locating Tab -
1623-882506 BEARING SET, Blue, Connencting Rod
Design-1 Locating TabBEARING SET, Blue, Connencting Rod
Design-1 Locating Tab -
1623-8M0079336 BEARING SET, Yellow, Connencting Rod
Design-2 Locating TabBEARING SET, Yellow, Connencting Rod
Design-2 Locating Tab -
1623-8M0079337 BEARING SET, Black, Connencting Rod
Design-2 Locating TabBEARING SET, Black, Connencting Rod
Design-2 Locating Tab -
1623-8M0079338 BEARING SET, Pink, Connencting Rod
Design-2 Locating TabBEARING SET, Pink, Connencting Rod
Design-2 Locating Tab -
17882406 PIN, PistonPIN, Piston
-
18882527 ROD ASSEMBLY, Connecting
Design-1 Locating TabROD ASSEMBLY, Connecting
Design-1 Locating Tab -
18600-8M0079335 ROD ASSEMBLY, Connecting
Design-2 Locating TabROD ASSEMBLY, Connecting
Design-2 Locating Tab -
1923-882495 BUSHING, Connencting RodBUSHING, Connencting Rod
-
2010-882409 BOLT, (.375-24), Connencting RodBOLT, (.375-24), Connencting Rod
-
2111-882410 NUT, (.375-24 UNF), Connecting RodNUT, (.375-24 UNF), Connecting Rod
-
2210-882667 SCREW, (M10 x 25), With LockwasherSCREW, (M10 x 25), With Lockwasher
-
23882407 RING, Snap, Piston PinRING, Snap, Piston Pin
-
24882472 ROTOR, Crankshaft SensorROTOR, Crankshaft Sensor
-
2510-882510 SCREW, RotorSCREW, Rotor
-
26882503 PULLEY, CrankshaftPULLEY, Crankshaft
-
27882387 PLATE, Guide, Timing BeltPLATE, Guide, Timing Belt
-
28861839A3 COUPLERCOUPLER
-
2922-74036 FITTING, GreaseFITTING, Grease
-
30891783T FLYWHEEL, InboardFLYWHEEL, Inboard
-
3110-864917 SCREW, (M7 x 30)SCREW, (M7 x 30)
-
3213-864918 LOCKWASHERLOCKWASHER
