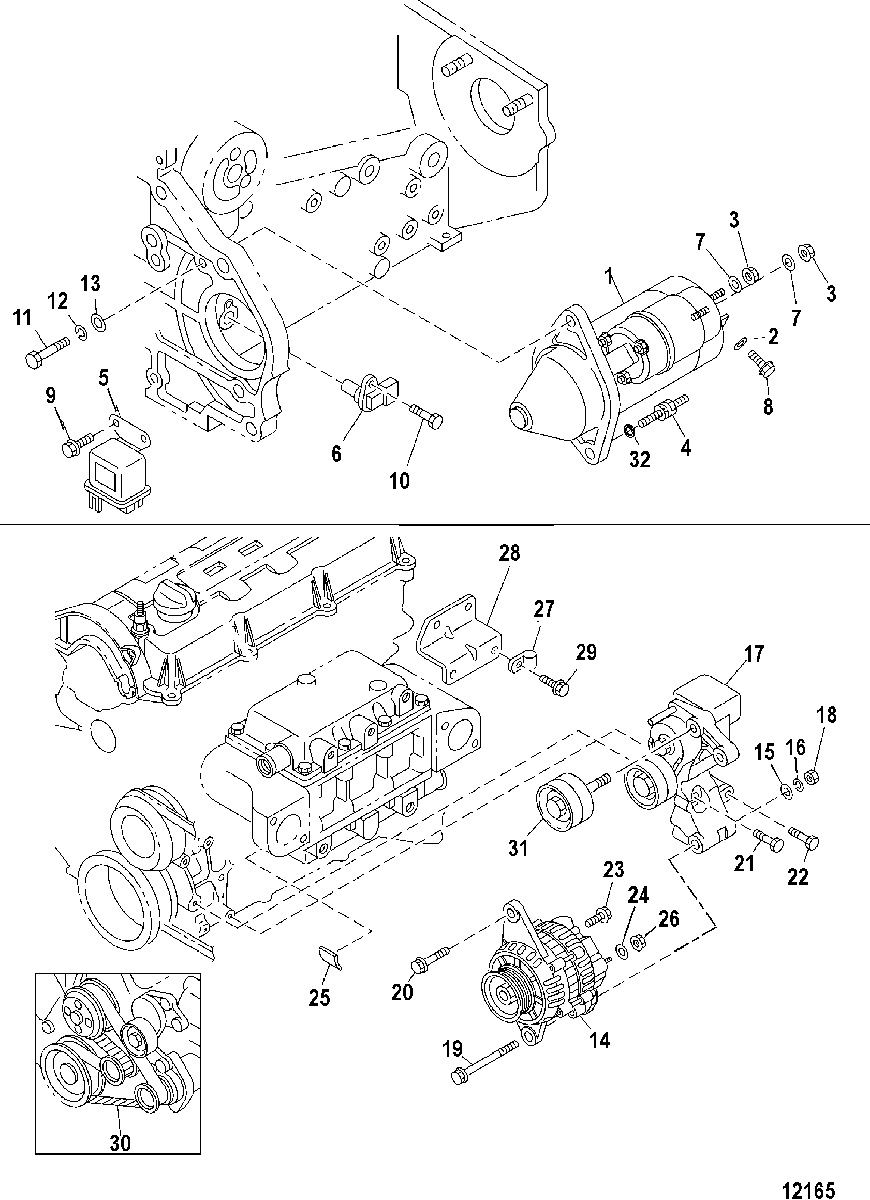

Starter and Alternator для Mercruiser - CMD 1.7 MI 120 I/L4 88109041 & Up
-
№АртикулНазвание
-
1879194371 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
212-882744 WASHERWASHER
-
311-882340 NUT, (M8)NUT, (M8)
-
416-8M0120052 STUDSTUD
-
587-882395 RELAY, StarterRELAY, Starter
-
6882454 SENSOR, TachSENSOR, Tach
-
713-882342 LOCKWASHERLOCKWASHER
-
810-882708 SCREWSCREW
-
910-882290 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
1010-882313 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1110-882622 SCREW, (M12 x 55)SCREW, (M12 x 55)
-
1213-882637 LOCKWASHERLOCKWASHER
-
1312-882344 WASHERWASHER
-
148M0084523 ALTERNATOR ASSEMBLYALTERNATOR ASSEMBLY
-
1512-882642 WASHERWASHER
-
1613-882636 LOCKWASHERLOCKWASHER
-
17882520 BRACKET, With Tensioner, AlternatorBRACKET, With Tensioner, Alternator
-
1811-882633 NUT, (M10)NUT, (M10)
-
1910-882307 SCREW, (M10 x 130)SCREW, (M10 x 130)
-
2010-882327 SCREW, (M8 x 35), With Plain and LockwasherSCREW, (M8 x 35), With Plain and Lockwasher
-
2110-882316 SCREW, (M14 x 35)SCREW, (M14 x 35)
-
2210-882317 SCREW, (M10 x 40)SCREW, (M10 x 40)
-
2210-889900 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
2310-882417 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
2413-882634 LOCKWASHERLOCKWASHER
-
25882746 PROTECTORPROTECTOR
-
2611-882339 NUTNUT
-
2754-882351 CLIP, HarnessCLIP, Harness
-
28882561 BRACKETBRACKET
-
2910-882323 SCREW, (M10 x 22), With LockwasherSCREW, (M10 x 22), With Lockwasher
-
3057-882531T BELT, Alternator DriveBELT, Alternator Drive
-
318M0098318 PULLEY, Idler (Included with Reference 17)PULLEY, Idler (Included with Reference 17)
-
3212-889902 WASHERWASHER
