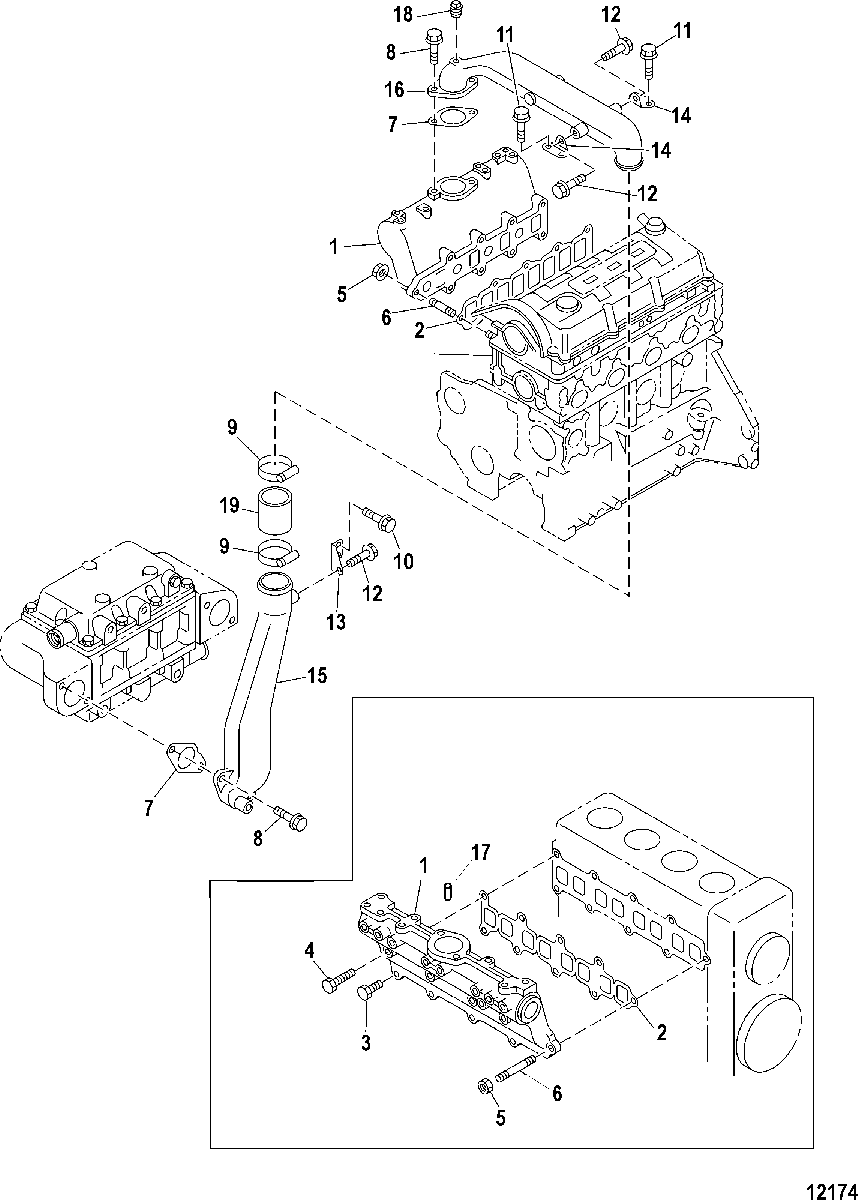

Intake Manifold для Mercruiser - CMD 1.7 MI 120 I/L4 88109041 & Up

№

Артикул

Название
1

882553 MANIFOLD, Intake

MANIFOLD, Intake

62 830 ₽
2

27-882513 GASKET, Intake Manifold

GASKET, Intake Manifold

3 600 ₽
3

10-882304 SCREW, (M8 x 70), Intake Manifold

SCREW, (M8 x 70), Intake Manifold

200 ₽
4

10-882315 SCREW, (M8 x 20), Intake Maifold

SCREW, (M8 x 20), Intake Maifold

180 ₽
5

11-882338 NUT

NUT

300 ₽
6

16-882628 STUD, Intake Manifold

STUD, Intake Manifold

290 ₽
7

27-882514 GASKET

GASKET

1 240 ₽
8

10-882325 SCREW, (M8 x 25), With Lockwasher

SCREW, (M8 x 25), With Lockwasher

400 ₽
9

54-8M0098323 CLAMP, Hose

CLAMP, Hose

1 750 ₽
10

10-882319 SCREW, (M8 x 16), With Lockwasher

SCREW, (M8 x 16), With Lockwasher

250 ₽
11

10-8M0115083 SCREW, (M8 x 18), With Lockwasher

SCREW, (M8 x 18), With Lockwasher

280 ₽
12

10-882322 SCREW, (M10 x 20), With Lockwasher

SCREW, (M10 x 20), With Lockwasher

290 ₽
13

882583 BRACKET

BRACKET

1 530 ₽
14

882609 BRACKET

BRACKET

1 410 ₽
15

882551 DUCT, Air
(Lower)

DUCT, Air
(Lower)

15 230 ₽
16

882552 DUCT, Air
(Upper)

DUCT, Air
(Upper)

15 230 ₽
17

17-882728 PIN

PIN

250 ₽
18

22-882347 FITTING, (NPT .125), Plug

FITTING, (NPT .125), Plug

590 ₽
19

32-882337 HOSE

HOSE

11 230 ₽
NS

10-882298 SCREW, (M8 x 12), Flange

SCREW, (M8 x 12), Flange

440 ₽
