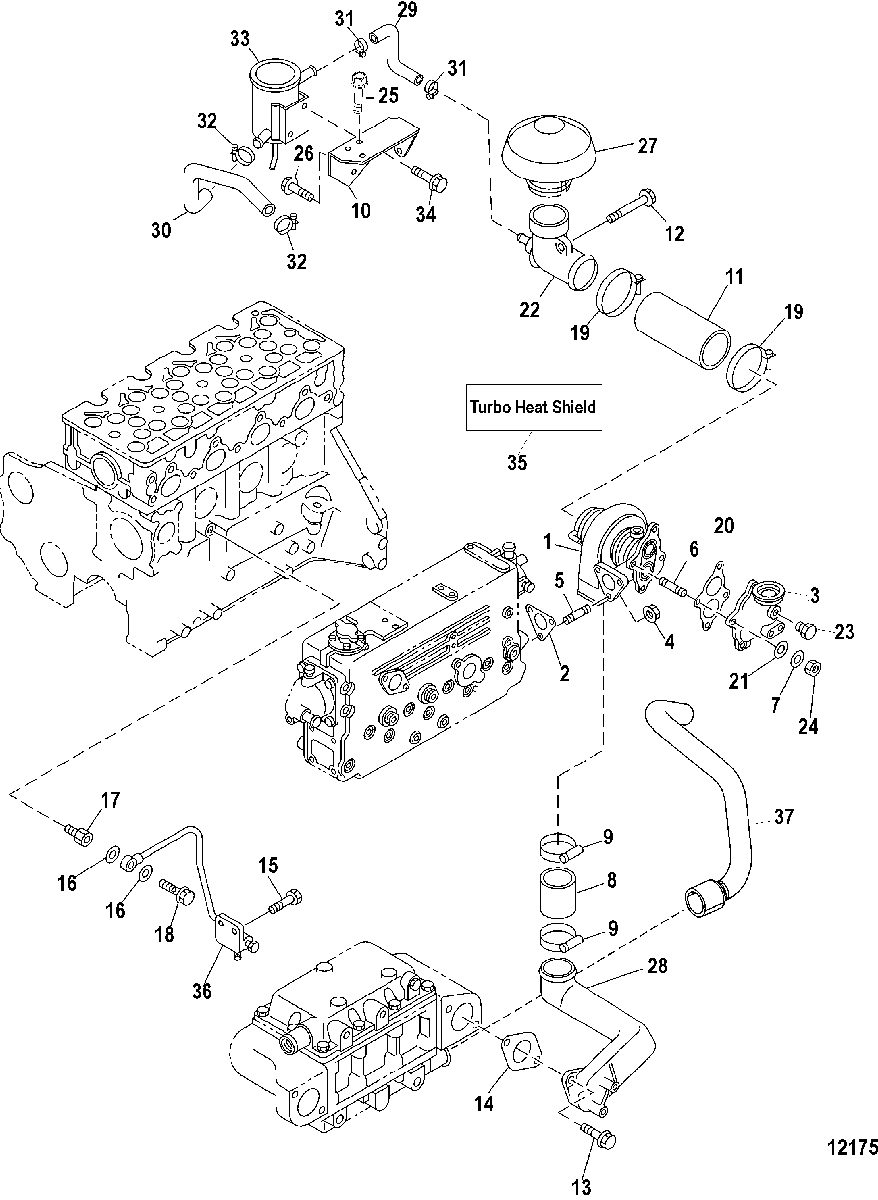

Turbocharger System для Mercruiser - CMD 1.7 MI 120 I/L4 88109041 & Up
-
№АртикулНазвание
-
1898148 TURBOCHARGER ASSEMBLY
With Power Steering SN# 88141948 & BelowTURBOCHARGER ASSEMBLY
With Power Steering SN# 88141948 & Below -
1898148 TURBOCHARGER ASSEMBLY
With Power Steering SN# 88142000 & UpTURBOCHARGER ASSEMBLY
With Power Steering SN# 88142000 & Up -
1898148 TURBOCHARGER ASSEMBLY
Without Power Steering SN# 88130146 & BelowTURBOCHARGER ASSEMBLY
Without Power Steering SN# 88130146 & Below -
1898148 TURBOCHARGER ASSEMBLY
Without Power Steering SN# 88130150 & UpTURBOCHARGER ASSEMBLY
Without Power Steering SN# 88130150 & Up -
1898148 TURBOCHARGER ASSEMBLY
Inboard SN# 88121062 & BelowTURBOCHARGER ASSEMBLY
Inboard SN# 88121062 & Below -
1898148 TURBOCHARGER ASSEMBLY
Inboard SN# 88121100 & UpTURBOCHARGER ASSEMBLY
Inboard SN# 88121100 & Up -
227-882564 GASKET, Turbocharger to Exhaust ManifoldGASKET, Turbocharger to Exhaust Manifold
-
3882563 PIPE, Exhaust,TurbochargerPIPE, Exhaust,Turbocharger
-
411-882341 NUT, (M10)NUT, (M10)
-
516-8M0119626 STUDSTUD
-
616-8M0119626 STUDSTUD
-
713-882346 LOCKWASHERLOCKWASHER
-
832-882337 HOSEHOSE
-
954-8M0098323 CLAMPCLAMP
-
10882559 BRACKET, Intake PipeBRACKET, Intake Pipe
-
1132-882578 HOSE, IntakeHOSE, Intake
-
1210-882674 SCREW, (M8 x 75)SCREW, (M8 x 75)
-
1310-882325 SCREW, (M8 x 25), With LockwasherSCREW, (M8 x 25), With Lockwasher
-
1427-882514 GASKET, Inlet PipeGASKET, Inlet Pipe
-
1510-882299 SCREW, (M8 x 16), FlangeSCREW, (M8 x 16), Flange
-
1627-882653 GASKET, Water PipeGASKET, Water Pipe
-
1722-882731 ADAPTOR, WaterADAPTOR, Water
-
1810-882349 SCREW, (M12 x 24)SCREW, (M12 x 24)
-
1954-8M0098323 CLAMP, Inlet HoseCLAMP, Inlet Hose
-
2027-882565 GASKET, Turbocharger to AdaptorGASKET, Turbocharger to Adaptor
-
2112-882343 WASHERWASHER
-
22882586 DUCT, Air, TurbochargerDUCT, Air, Turbocharger
-
2322-882647 FITTING, TaperFITTING, Taper
-
2411-882338 NUT, FlangeNUT, Flange
-
2510-8M0115083 SCREW, (M8 x 18), With LockwasherSCREW, (M8 x 18), With Lockwasher
-
2610-882732 SCREW, (M8 x 22), With LockwasherSCREW, (M8 x 22), With Lockwasher
-
27882377 SILENCER ASSEMBLY, TurbochargerSILENCER ASSEMBLY, Turbocharger
-
28882558 DUCT, Intake, TurboDUCT, Intake, Turbo
-
2932-882574 HOSEHOSE
-
3032-882575 HOSEHOSE
-
3154-882425 CLIP, PVCCLIP, PVC
-
3254-882453 CLIP, PVCCLIP, PVC
-
33882545 SEPERATOR, OilSEPERATOR, Oil
-
3410-8M0115083 SCREW, (M8 x 18), With LockwasherSCREW, (M8 x 18), With Lockwasher
-
35889340 SHIELD, Heat ( Turbo )SHIELD, Heat ( Turbo )
-
3632-882550 PIPE, Water DrainPIPE, Water Drain
-
3732-863239 HOSE, Transom To Intercooler
(Sterndrive)HOSE, Transom To Intercooler
(Sterndrive)
