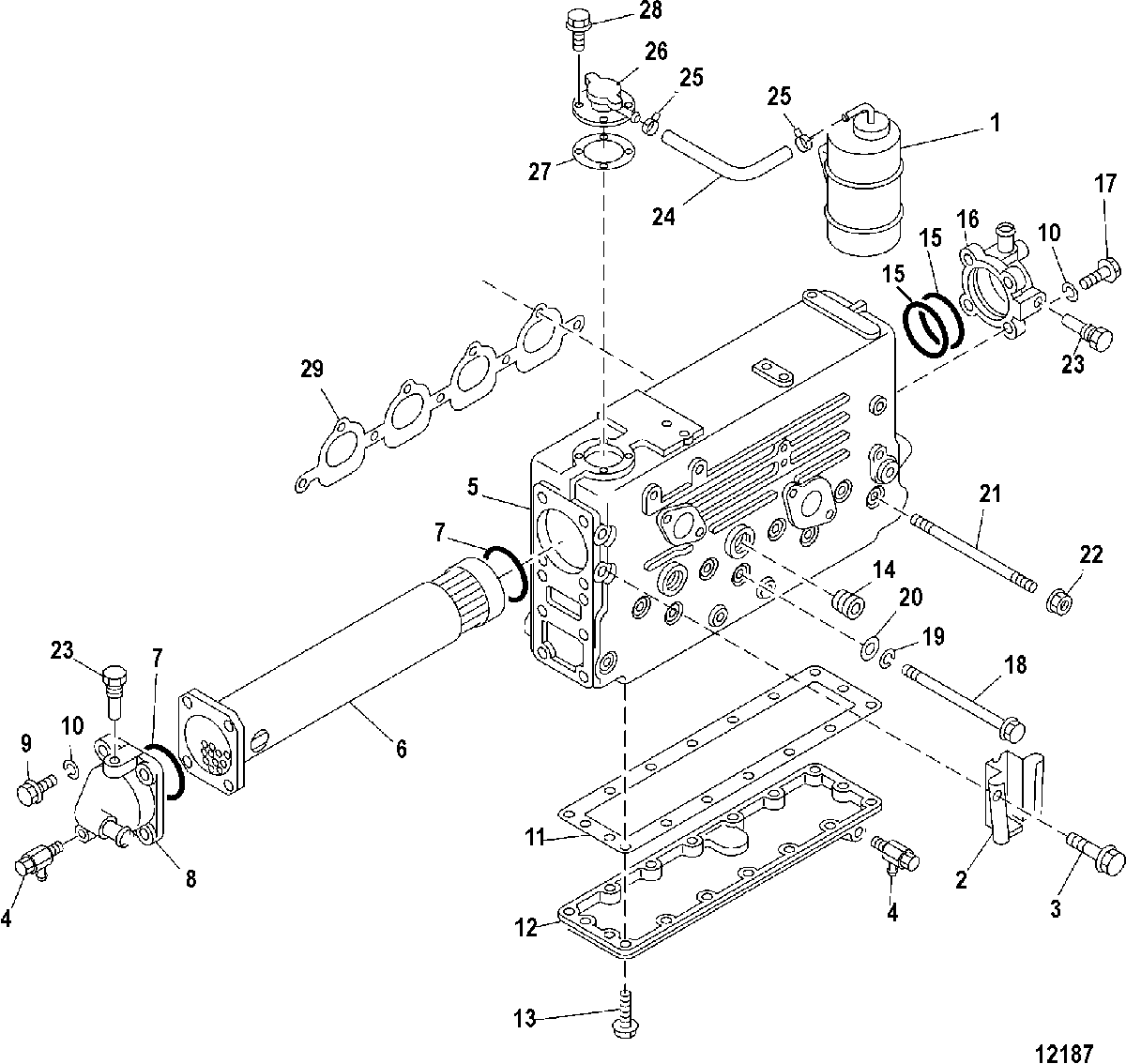

Heat Exchanger для Mercruiser - CMD 1.7 MI 120 I/L4 88109041 & Up
-
№АртикулНазвание
-
1882408 TANK, Surge, RadiatorTANK, Surge, Radiator
-
2882435 BRACKET, Reserve TankBRACKET, Reserve Tank
-
310-882747 SCREW, (M8 x 12), FlangeSCREW, (M8 x 12), Flange
-
4882656 FITTINGFITTING
-
-882716 EXCHANGER ASSEMBLY, HeatEXCHANGER ASSEMBLY, Heat
-
5882537 CASE, Heat ExchangerCASE, Heat Exchanger
-
6882535 CORE, Heat ExchangerCORE, Heat Exchanger
-
725-35029 GASKET, Cover to CaseGASKET, Cover to Case
-
8882536 COVER, Heat ExchangerCOVER, Heat Exchanger
-
910-882615 SCREWSCREW
-
1013-882617 LOCKWASHERLOCKWASHER
-
1127-882538 GASKET, Heat Exchanger to Exhaust ManifoldGASKET, Heat Exchanger to Exhaust Manifold
-
12882695 COVER, Heat ExchangerCOVER, Heat Exchanger
-
1310-882616 SCREW, (M6 x 12), FlangeSCREW, (M6 x 12), Flange
-
1422-882612 FITTING, TaperFITTING, Taper
-
1526-882348 SEAL, Cover to CaseSEAL, Cover to Case
-
16882581 COVER, Heat ExchangerCOVER, Heat Exchanger
-
1710-882614 SCREWSCREW
-
1810-882358 SCREW, (M8 x 138)SCREW, (M8 x 138)
-
1913-882635 LOCKWASHERLOCKWASHER
-
2012-882645 WASHERWASHER
-
2116-882359 STUDSTUD
-
2211-882330 NUT, (M8), FlangeNUT, (M8), Flange
-
23882283 BAR, ZincBAR, Zinc
-
2432-882285 HOSE, Rubber, Reserve to Heat Exchanger, Cut to (12 Inch)HOSE, Rubber, Reserve to Heat Exchanger, Cut to (12 Inch)
-
2554-882391 CLIP, Rubber HoseCLIP, Rubber Hose
-
26888749 CAPCAP
-
2727-882610 GASKET, Heat Exchanger to Exhaust ManifoldGASKET, Heat Exchanger to Exhaust Manifold
-
2810-882291 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
2927-882517 GASKET, Exhaust Manifold to Cylinder HeadGASKET, Exhaust Manifold to Cylinder Head
