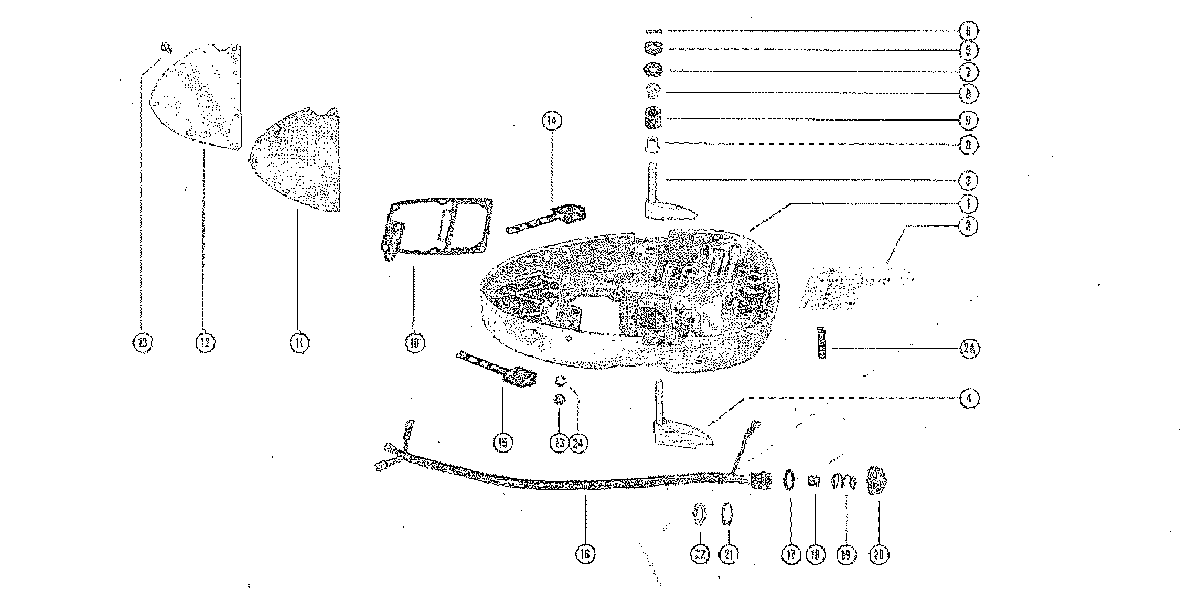

BOTTOM COWL ASSEMBLY для Mercury - 110 1470349 THRU 1865778
-
№АртикулНазвание
-
1187-1954 BOTTOM COWLBOTTOM COWL
-
237-31035 DECAL, SHIFT - CHOKE - STOP - FUELDECAL, SHIFT - CHOKE - STOP - FUEL
-
237-35512 DECAL, SHIFT - CHOKE - STOP - FUELDECAL, SHIFT - CHOKE - STOP - FUEL
-
2A37-35824 DECAL, SHIFT - BOTTON COWLDECAL, SHIFT - BOTTON COWL
-
331408 LEVER, CLAMPING - PORTLEVER, CLAMPING - PORT
-
431409 LEVER, CLAMPING - STARBOARDLEVER, CLAMPING - STARBOARD
-
511-30428 FASTENER, CLAMPING LEVERFASTENER, CLAMPING LEVER
-
617-29077 PIN, ROLL - CLAMPING LEVERPIN, ROLL - CLAMPING LEVER
-
712-38744 WASHER, CLAMPING LEVERWASHER, CLAMPING LEVER
-
823-26819 BUSHING, NYLON - CLAMPING LEVER SHAFTBUSHING, NYLON - CLAMPING LEVER SHAFT
-
823-26819 BUSHING, NYLON - CLAMPING LEVER SHAFTBUSHING, NYLON - CLAMPING LEVER SHAFT
-
923-31293 BUSHING, RUBBER - CLAMPING LEVER SHAFTBUSHING, RUBBER - CLAMPING LEVER SHAFT
-
1027-89937 GASKET, POWERHEAD TO BOTTON COWLGASKET, POWERHEAD TO BOTTON COWL
-
1127-30801 GASKET, EXHAUST REFEIF COVER TO BOTTOM COWLGASKET, EXHAUST REFEIF COVER TO BOTTOM COWL
-
1255936 COVER, EXHAUST RELIEFCOVER, EXHAUST RELIEF
-
1310-69079 SCREW, EXHAUST RELIEF COVER FASTENINGSCREW, EXHAUST RELIEF COVER FASTENING
-
1437-37750 DECAL, BOTTOM COWL - PORT
PART OF A-37-37745A1 DECAL SETDECAL, BOTTOM COWL - PORT
PART OF A-37-37745A1 DECAL SET -
1537-37749 DECAL, BOTTOM COWL - STARBOARD
PART OF A-37-37745A1 DECAL SETDECAL, BOTTOM COWL - STARBOARD
PART OF A-37-37745A1 DECAL SET -
--32372A2 STOP SWITCH ASSEMBLYSTOP SWITCH ASSEMBLY
-
--32372A2 STOP SWITCH ASSEMBLYSTOP SWITCH ASSEMBLY
-
1632372 HARNESS, STOP SWITCHHARNESS, STOP SWITCH
-
1632372 HARNESS, STOP SWITCHHARNESS, STOP SWITCH
-
1712-30856 WASHER, SEALING - STOP SWITCHWASHER, SEALING - STOP SWITCH
-
1830859 INSULATOR, SLEVVE - INNER SWITCH TERMINALSINSULATOR, SLEVVE - INNER SWITCH TERMINALS
-
1924-30858A1 SPRING AND CONTACT ASSEMBLYSPRING AND CONTACT ASSEMBLY
-
2038950A1 COVER, STOP SWITCHCOVER, STOP SWITCH
-
2113-21972 LOCKWASHER, STOP SWITCH CONNECTORLOCKWASHER, STOP SWITCH CONNECTOR
-
2211-21971 NUT, STOP SWITCH CONNECTOR TO BOTTOM COWLNUT, STOP SWITCH CONNECTOR TO BOTTOM COWL
-
2310-79953Q04 SCREW, BOTTOM COWL FLUSHING HOLESCREW, BOTTOM COWL FLUSHING HOLE
-
2412-191833 WASHER, BOTTOM COWL FLUSHING HOLE SCREWWASHER, BOTTOM COWL FLUSHING HOLE SCREW
