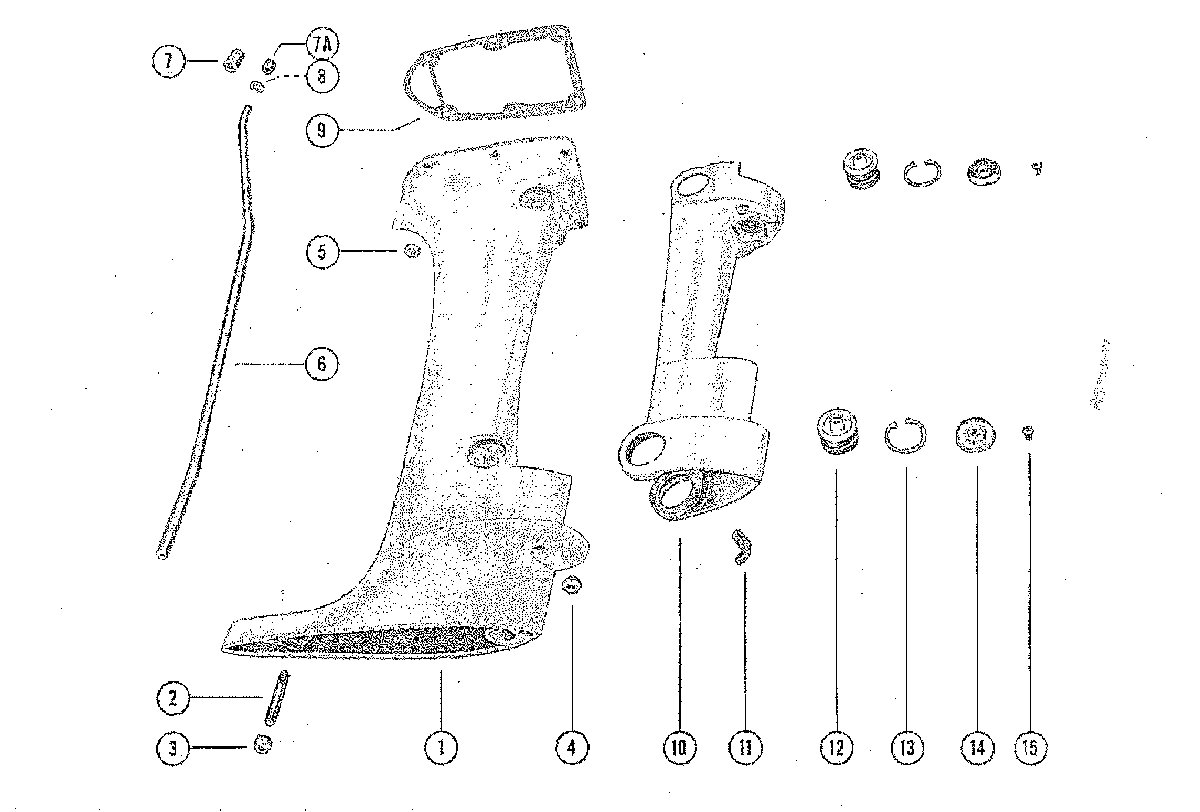

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 110 1470349 THRU 1865778
-
№АртикулНазвание
-
11538-1937A1 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
216-68201 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
11538-2243A1 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
216-34378 STUD, DIVE SHAFT HOUSING OF GEAR HOUSINGSTUD, DIVE SHAFT HOUSING OF GEAR HOUSING
-
311-82670911 NUT, DRIVE SHAFT HOUSING STUDNUT, DRIVE SHAFT HOUSING STUD
-
411-8M0042636 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
-
511-24652 NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDSNUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS
-
632-31940 TUBE, WATER OUTLETTUBE, WATER OUTLET
-
726-30811 SEAL, RUBBER - WATER OUTLET TUBESEAL, RUBBER - WATER OUTLET TUBE
-
7A26-36556 SEAL, RUBBER - WATER OUTLET TUBESEAL, RUBBER - WATER OUTLET TUBE
-
823-13127 WASHER, NYLON - OUTLET TUBE SEALWASHER, NYLON - OUTLET TUBE SEAL
-
927-30804 GASKET, BOTTOM COWL TO DRIVE SHAFT HOUSINGGASKET, BOTTOM COWL TO DRIVE SHAFT HOUSING
-
101539-8450A1 SADDLESADDLE
-
1132021 BUMPER, LOWER THRUST - SADDLEBUMPER, LOWER THRUST - SADDLE
-
1279896A1 MOUNT ASSEMBLY, UPPER AND LOWERMOUNT ASSEMBLY, UPPER AND LOWER
-
1353-26406 RING, RETAINING - UPPER AND LOWER MOUNTRING, RETAINING - UPPER AND LOWER MOUNT
-
1471490 COVER, UPPER AND LOWER MOUNTCOVER, UPPER AND LOWER MOUNT
-
1510-30675 SCREW, UPPER AND LOWER MOUNT COVER RETAININGSCREW, UPPER AND LOWER MOUNT COVER RETAINING
Все узлы модели:
- BOTTOM COWL ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR CHOKE LINKAGE
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- CRANKSHAFT AND MAIN BEARING ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- • DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL AND STATOR PLATE ASSEMBLY
- FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE
- FUEL PUMP ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE
- GEAR HOUSING ASSEMBLY, COMPLETE (CONT)
- MISCELLANEOUS/ACCESSORIES
- PISTON AND CONNECTING ROD ASSEMBLY
- SHIFT CONTROL LINKAGE
- STATOR PLATE ASSEMBLY
- STEERING HANDLE ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY
- TOP COWL AND STARTER ASSEMBLY (MERC 110-3 AND MERC 110-4)
