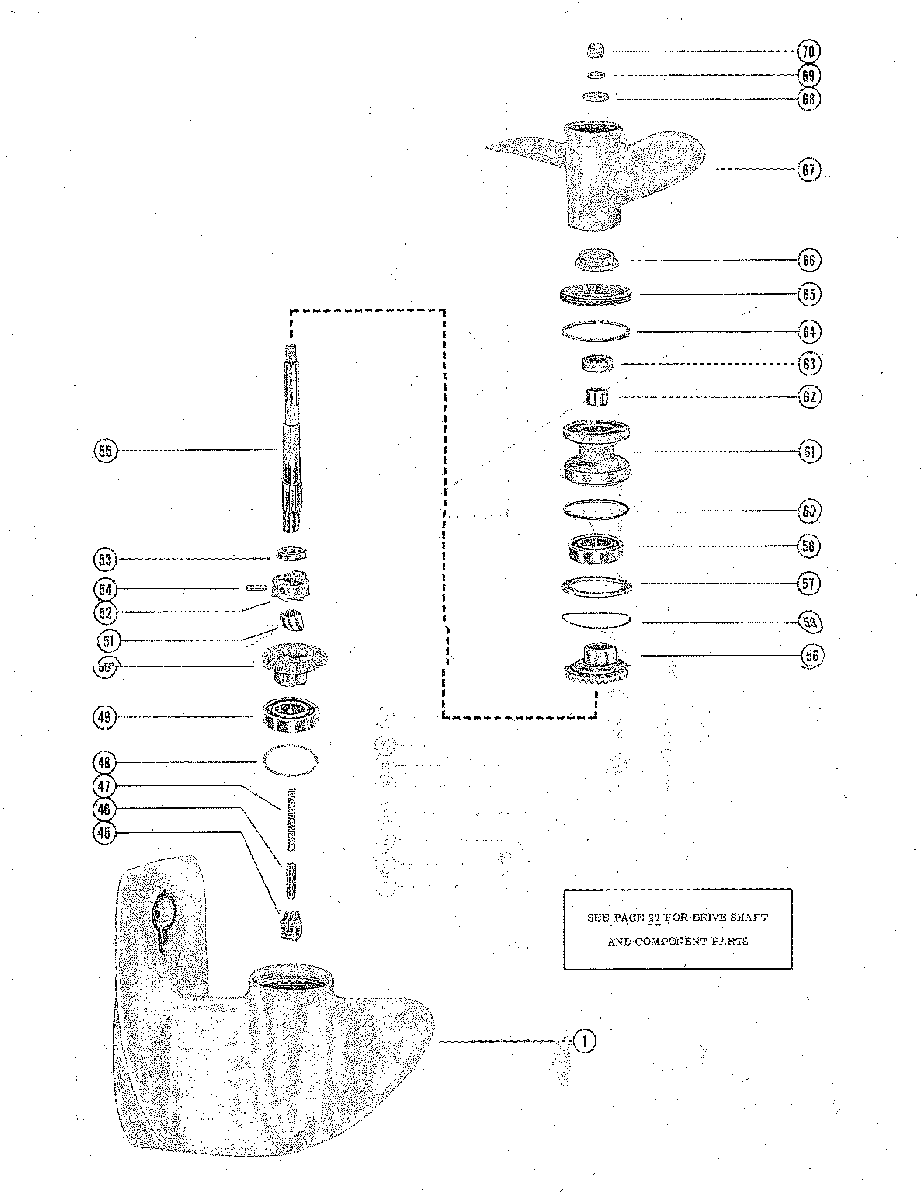

GEAR HOUSING ASSEMBLY, COMPLETE для Mercury - 110 1470349 THRU 1865778
-
№АртикулНазвание
-
-1622-1931A13 GEAR HOUSING ASSEMBLY, COMPLETE
A-1622-1931A3; A-1622-1931A13 AND A-1622-2244A7 GEAR HOUSING ASSEMBLIES, COMPLETE INCLUDE ALL PARTS GROM REFERENCE #1 THRU REFERENCE #65 AS LISTED ON PAGES 27 AND 30.GEAR HOUSING ASSEMBLY, COMPLETE
A-1622-1931A3; A-1622-1931A13 AND A-1622-2244A7 GEAR HOUSING ASSEMBLIES, COMPLETE INCLUDE ALL PARTS GROM REFERENCE #1 THRU REFERENCE #65 AS LISTED ON PAGES 27 AND 30. -
-1622-1931A13 GEAR HOUSING ASSEMBLY, COMPLETE
A-1622-1931A3; A-1622-1931A13 AND A-1622-2244A7 GEAR HOUSING ASSEMBLIES, COMPLETE INCLUDE ALL PARTS GROM REFERENCE #1 THRU REFERENCE #65 AS LISTED ON PAGES 27 AND 30.GEAR HOUSING ASSEMBLY, COMPLETE
A-1622-1931A3; A-1622-1931A13 AND A-1622-2244A7 GEAR HOUSING ASSEMBLIES, COMPLETE INCLUDE ALL PARTS GROM REFERENCE #1 THRU REFERENCE #65 AS LISTED ON PAGES 27 AND 30. -
-1622-2244A7 GEAR HOUSING ASSEBMLY, COMPLETE
A-1622-1931A3; A-1622-1931A13 AND A-1622-2244A7 GEAR HOUSING ASSEMBLIES, COMPLETE INCLUDE ALL PARTS GROM REFERENCE #1 THRU REFERENCE #65 AS LISTED ON PAGES 27 AND 30.GEAR HOUSING ASSEBMLY, COMPLETE
A-1622-1931A3; A-1622-1931A13 AND A-1622-2244A7 GEAR HOUSING ASSEMBLIES, COMPLETE INCLUDE ALL PARTS GROM REFERENCE #1 THRU REFERENCE #65 AS LISTED ON PAGES 27 AND 30. -
11622-1931A1 GEAR HOUSING ASSEMLBY
SEE PAGE 27 FOR PARTS BREAKDOWNGEAR HOUSING ASSEMLBY
SEE PAGE 27 FOR PARTS BREAKDOWN -
11622-2244A18 GEAR HOUSING ASSEMBLY
SEE PAGE 27 FOR PARTS BREAKDOWNGEAR HOUSING ASSEMBLY
SEE PAGE 27 FOR PARTS BREAKDOWN -
4530599 CAM, SHIFTCAM, SHIFT
-
4631334 FOLLOWER, SHIFT CAMFOLLOWER, SHIFT CAM
-
4724-31333 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
4815-30522A1 SHIM, FORWARD GEAR BALL BEARING TO GEAR HOUSING (.002-3-5-1)SHIM, FORWARD GEAR BALL BEARING TO GEAR HOUSING (.002-3-5-1)
-
--43-48577A2 FORWARD GEAR ASSEMBLY, COMPLETEFORWARD GEAR ASSEMBLY, COMPLETE
-
4930-21889 BEARING, BALL - FORWARD GEARBEARING, BALL - FORWARD GEAR
-
5043-48577A2 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5131-22458 BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5243-48577A2 RATCHET, SLIDING CLUTCH
NOTE: SEE A-31824 BLOCK COMMENT.RATCHET, SLIDING CLUTCH
NOTE: SEE A-31824 BLOCK COMMENT. -
5353-30534 RING, RETAINING - CROSS PIN (.940I.D.)
NOTE: SEE A-31824 BLOCK COMMENT.RING, RETAINING - CROSS PIN (.940I.D.)
NOTE: SEE A-31824 BLOCK COMMENT. -
5243-48577A2 RATCHET ASSEMBLY, SLIDING CLUTCH
NOTE: SEE A-31824 BLOCK COMMENT.RATCHET ASSEMBLY, SLIDING CLUTCH
NOTE: SEE A-31824 BLOCK COMMENT. -
5353-32449 RING, RETAINING - CORSS PIN (.995I.D.)
NOTE: SEE A-31824 BLOCK COMMENT.RING, RETAINING - CORSS PIN (.995I.D.)
NOTE: SEE A-31824 BLOCK COMMENT. -
5417-30535 PIN CROSS-RATCHET TO PROPELLER SHAFTPIN CROSS-RATCHET TO PROPELLER SHAFT
-
5544-33640 SHAFT, PROPELLERSHAFT, PROPELLER
-
--43-48577A2 REVERSE GEAR ASSEMBLY, COMPLETEREVERSE GEAR ASSEMBLY, COMPLETE
-
5643-48577A2 REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
5712-30531 WASHER, THRUST - REVERSE GEARWASHER, THRUST - REVERSE GEAR
-
5830-21889 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
5915-30532 SHIM THRUST WASHER TO GEAR HOUSING (.002-3-5-10)SHIM THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
-
6025-30529 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6130541T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6231-22458 BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
6326-30530 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
6412-30528 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
6530537 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
6612-31980A2 COLLAR ASSEMBLY, GUIDE - PROPELLER SHAFTCOLLAR ASSEMBLY, GUIDE - PROPELLER SHAFT
-
6748-31504A1 PROPELLER ASSEMBLY (2BLADE - ALUMINUM = 10" PITCH)PROPELLER ASSEMBLY (2BLADE - ALUMINUM = 10" PITCH)
-
6748-34400A1 PROPELLER ASSEMBLY (2BLADE - BRONZE - 10" PITCH)PROPELLER ASSEMBLY (2BLADE - BRONZE - 10" PITCH)
-
6748-32364A1 PROPELLER ASSEMBLY (2BLADE - ALUMINUM - 9" PITCH)PROPELLER ASSEMBLY (2BLADE - ALUMINUM - 9" PITCH)
-
6748-37318A1 PROPELLER ASSEMBLY (3BLADE - ALUMINUM - 7" PITCH)PROPELLER ASSEMBLY (3BLADE - ALUMINUM - 7" PITCH)
-
6812-30524 WASHER, SPLINE - PROPELLER SHAFTWASHER, SPLINE - PROPELLER SHAFT
-
6912-20084 WASHER, PROPELLER NUTWASHER, PROPELLER NUT
-
7011-82670911 NUT, PROPELLERNUT, PROPELLER
