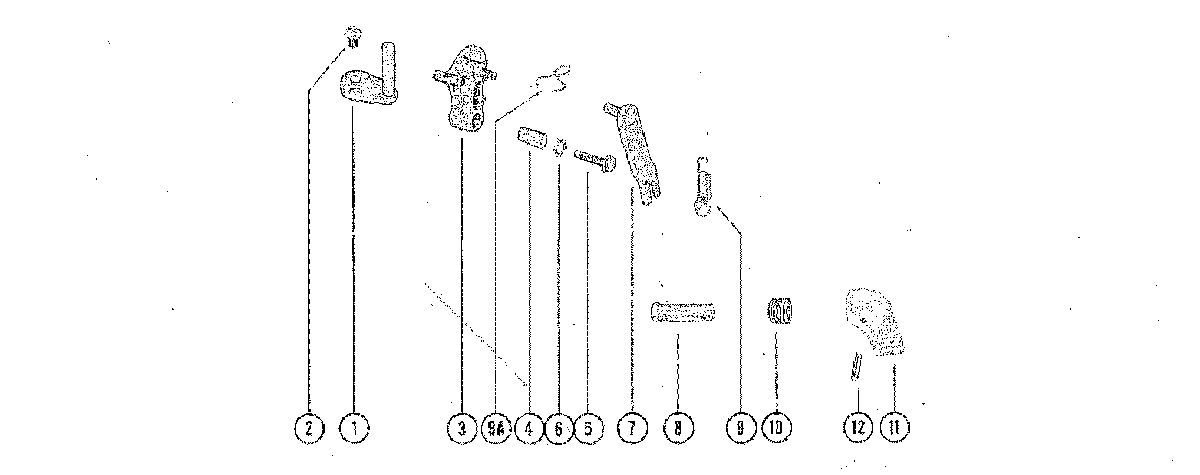

CARBURETOR CHOKE LINKAGE для Mercury - 110 1470349 THRU 1865778
-
№АртикулНазвание
-
159000 THROTTLE LEVER ASSEMBLYTHROTTLE LEVER ASSEMBLY
-
210-20597 SCREW, THROTTLE LEVER TO CARBURETORSCREW, THROTTLE LEVER TO CARBURETOR
-
331865 SHUTTER, CHOKE-CARBURETORSHUTTER, CHOKE-CARBURETOR
-
332374 SHUTTER, CHOKE-CARBURETORSHUTTER, CHOKE-CARBURETOR
-
423-31313 SPACER, CHOKE SHUTTER FASTENING SCREWSPACER, CHOKE SHUTTER FASTENING SCREW
-
510-31919 SCREW, CHOKE SHUTTER TO CARBURETORSCREW, CHOKE SHUTTER TO CARBURETOR
-
613-34632 WASHER, WAVE-CHOKE SHUTTER SCREWWASHER, WAVE-CHOKE SHUTTER SCREW
-
731920A2 LEVER ASSEMBLY, CHOKE SHUTTERLEVER ASSEMBLY, CHOKE SHUTTER
-
830946 SHAFT, CHOKE LEVER TO CHOKE KNOBSHAFT, CHOKE LEVER TO CHOKE KNOB
-
924-31204 SPRING, CHOKE SHUTTER TO LEVERSPRING, CHOKE SHUTTER TO LEVER
-
9A24-32283 SPRINGK CHOKE SHUTTER TO LEVERSPRINGK CHOKE SHUTTER TO LEVER
-
1024-30947 SPRING, TENSION-CHOKE KNOBSPRING, TENSION-CHOKE KNOB
-
1130822 KNOB, CHOKEKNOB, CHOKE
-
1217-22896 PIN, ROLL-CHOKE KNOB TO SHAFTPIN, ROLL-CHOKE KNOB TO SHAFT
