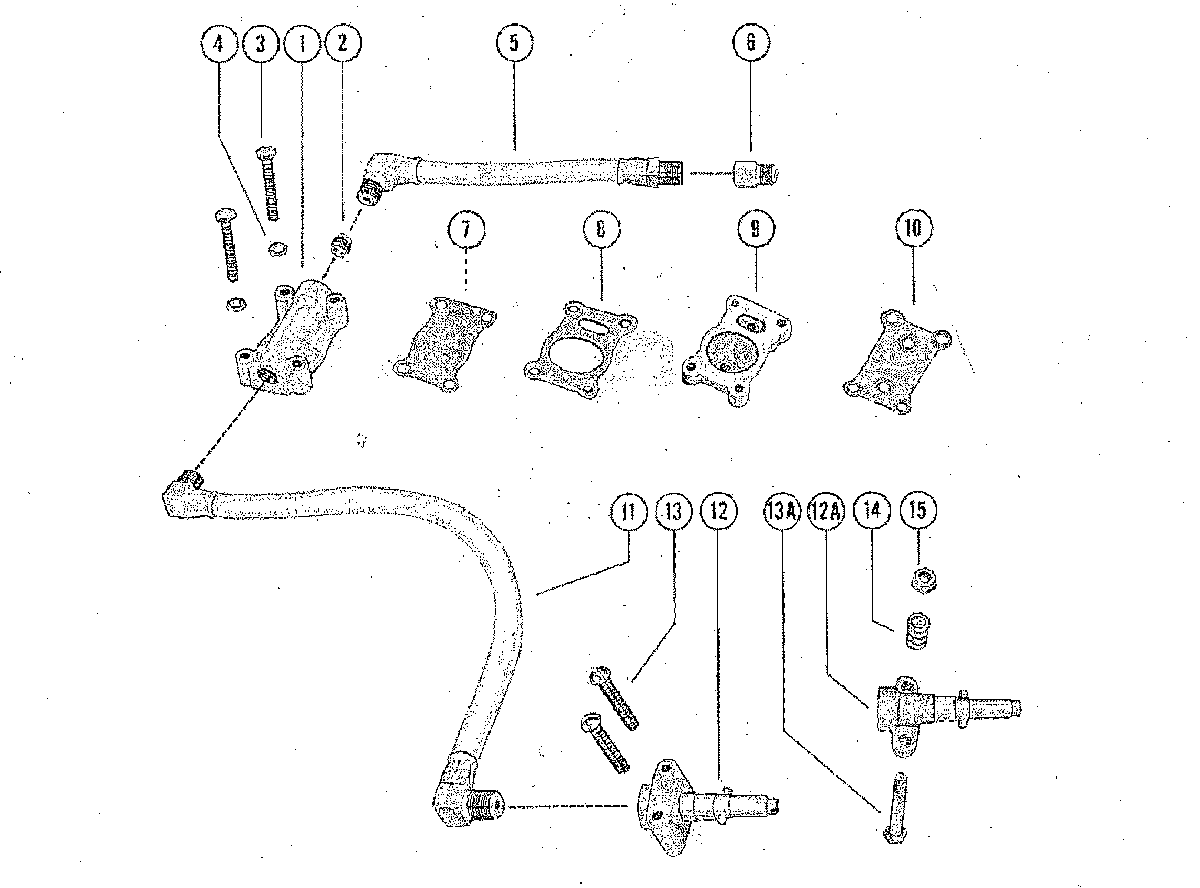

FUEL PUMP ASSEMBLY для Mercury - 110 1470349 THRU 1865778
-
№АртикулНазвание
-
139082A4 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-22974A2 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
139082A4 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-22974A2 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
310-73656 SCREW, FUEL PUMP TO CYLINDER BLOCKSCREW, FUEL PUMP TO CYLINDER BLOCK
-
412-26014 WASHER, PUMP TO CYLINDER BLOCK SCREWWASHER, PUMP TO CYLINDER BLOCK SCREW
-
532-30850 FUEL LINE, PUMP TO CARBURETOR (5")FUEL LINE, PUMP TO CARBURETOR (5")
-
532-32230 FUEL LINE, PUMP TO CARBURETOR (4 3/4')FUEL LINE, PUMP TO CARBURETOR (4 3/4')
-
622-23468 ADAPTOR, FUEL LINE-CARBURETOR ENDADAPTOR, FUEL LINE-CARBURETOR END
-
731503A1 DIAPHRAGM, FUEL PUMP TO GASKETDIAPHRAGM, FUEL PUMP TO GASKET
-
827-30651 GASKET, FUEL PUMP TO SPACERGASKET, FUEL PUMP TO SPACER
-
931510 SPACER, FUEL PUMP TO CYLINDER BLOCKSPACER, FUEL PUMP TO CYLINDER BLOCK
-
1027-31509 GSKET, SPACER TO CYLINDER BLOCKGSKET, SPACER TO CYLINDER BLOCK
-
1132-32617 FUEL LINE, PUMP TO ADAPTOR (9 3/8")FUEL LINE, PUMP TO ADAPTOR (9 3/8")
-
1232454 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
1310-29283 SCREW, ADAPTOR TO BOTTOM COWLSCREW, ADAPTOR TO BOTTOM COWL
-
1132-32617 FUEL LINE, FUEL PUMP TO ADAPTOR (8")FUEL LINE, FUEL PUMP TO ADAPTOR (8")
-
12A32454 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
13A10-32455 SCREW, ADAPTOR TO BOTTOM COWLSCREW, ADAPTOR TO BOTTOM COWL
-
1424-28357 SPRING, ADAPTOR TO BOTTOM COWL SCREWSPRING, ADAPTOR TO BOTTOM COWL SCREW
-
1511-20110 NUT, ADAPTOR TO BOTTOM COWL SCREWNUT, ADAPTOR TO BOTTOM COWL SCREW
