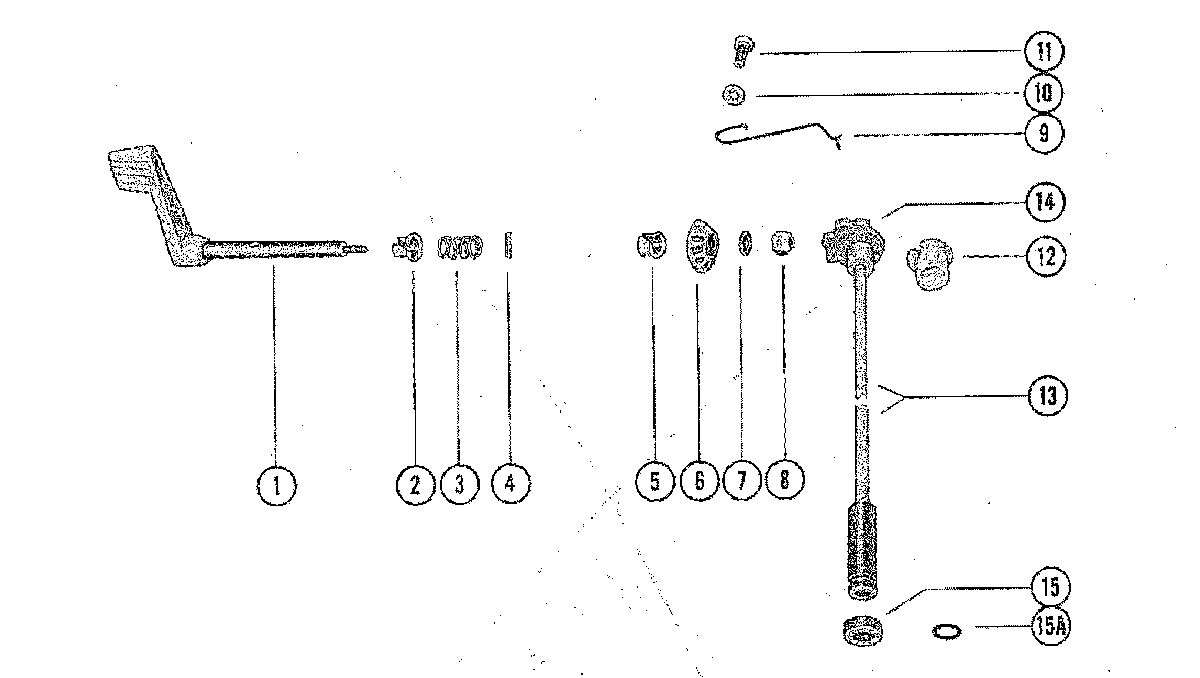

SHIFT CONTROL LINKAGE для Mercury - 110 1470349 THRU 1865778
-
№АртикулНазвание
-
130747 HANDLE, SHIFT CONTROLHANDLE, SHIFT CONTROL
-
223-30678 BUSHING, NYLON-SHIFT CONTROL HANDLEBUSHING, NYLON-SHIFT CONTROL HANDLE
-
324-30817 SPRING, TENSION-SHIFT CONTROL HANDLESPRING, TENSION-SHIFT CONTROL HANDLE
-
417-31224 PIN, DOWEL-TENSION SPRING TO HANDLEPIN, DOWEL-TENSION SPRING TO HANDLE
-
523-30678 BUSHING, NYLON-SHIFT CONTROL HANDLEBUSHING, NYLON-SHIFT CONTROL HANDLE
-
643-30802 GEAR, HORIZONTAL-SHIFT CONTROL HANDLEGEAR, HORIZONTAL-SHIFT CONTROL HANDLE
-
712-29245 WASHER, SHIFT CONTROL HANDLEWASHER, SHIFT CONTROL HANDLE
-
811-8267089 NUT, HORIZONTAL GEAR TO SHIFT CONTROL HANDLENUT, HORIZONTAL GEAR TO SHIFT CONTROL HANDLE
-
924-30816 SPRING, DETENT-SECTOR GEARSPRING, DETENT-SECTOR GEAR
-
1012-29245 WASHER, DETENT SPRING SCREWWASHER, DETENT SPRING SCREW
-
1110-55336 SCREW, DETENT SPRING TO BOTTOM COWLSCREW, DETENT SPRING TO BOTTOM COWL
-
1013-21272 LOCKWASHER, DETENT SPRING SCREWLOCKWASHER, DETENT SPRING SCREW
-
1110-28639 SCREW, DETENT SPRING TO BOTTOM COWLSCREW, DETENT SPRING TO BOTTOM COWL
-
1223-30677 BUSHING, NYLON-SHIFT CONTROL SHAFTBUSHING, NYLON-SHIFT CONTROL SHAFT
-
1354640A1 SHIFT CONTROL SHAFT ASSEMBLYSHIFT CONTROL SHAFT ASSEMBLY
-
1443-32453 GEAR, SECTOR-SHIFT CONTROL SHAFTGEAR, SECTOR-SHIFT CONTROL SHAFT
-
1354640A1 SHIFT CONTROL SHAFT ASSEMBLY
SERIAL 00000000-01872665SHIFT CONTROL SHAFT ASSEMBLY
SERIAL 00000000-01872665 -
1443-32453 GEAR, SECTOR-SHIFT CONTROL SHAFT
SERIAL 00000000-01872665GEAR, SECTOR-SHIFT CONTROL SHAFT
SERIAL 00000000-01872665 -
1525-26630 RING, RUBBER-LOWER SHIFT CONTROL SHAFT
SERIAL 00000000-01872665RING, RUBBER-LOWER SHIFT CONTROL SHAFT
SERIAL 00000000-01872665 -
1345251A2 SHIFT CONTROL SHAFT ASSEMBLY
SERIAL 01872666-09999999SHIFT CONTROL SHAFT ASSEMBLY
SERIAL 01872666-09999999 -
1443-32453 GEAR, SECTOR-SHIFT CONTROL SHAFT
SERIAL 01872666-09999999GEAR, SECTOR-SHIFT CONTROL SHAFT
SERIAL 01872666-09999999 -
15A25-38933 "O" RING, LOWER SHIFT CONTROL SHAFT
SERIAL 01872666-09999999"O" RING, LOWER SHIFT CONTROL SHAFT
SERIAL 01872666-09999999
